GRINS::SpalartAllmaras< Viscosity > Class Template Reference

Physics class for Incompressible Navier-Stokes. More...

#include <spalart_allmaras.h>

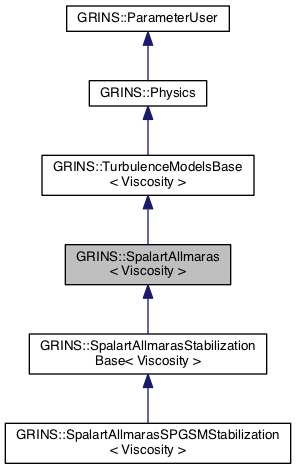

Inheritance diagram for GRINS::SpalartAllmaras< Viscosity >:

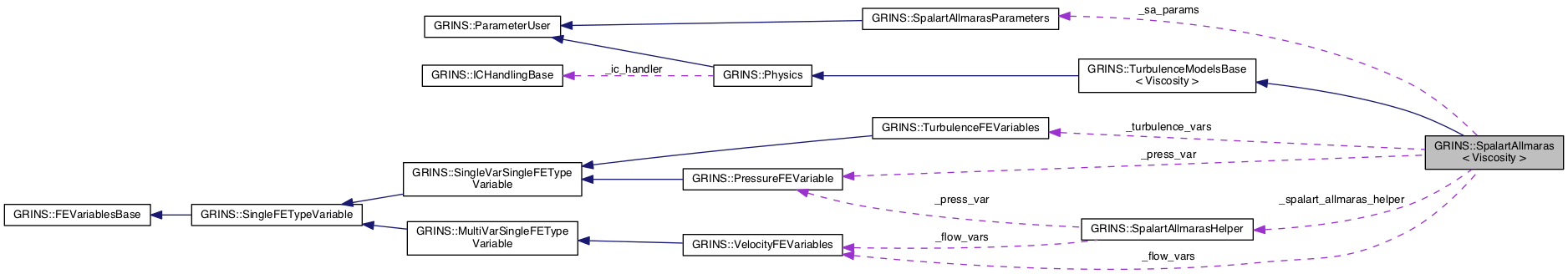

Collaboration diagram for GRINS::SpalartAllmaras< Viscosity >:

Public Member Functions
	SpalartAllmaras (const std::string &physics_name, const GetPot &input)
	~SpalartAllmaras ()
virtual void	init_variables (libMesh::FEMSystem *system)
	Initialize variables for this physics. More...
virtual void	set_time_evolving_vars (libMesh::FEMSystem *system)
	Sets velocity variables to be time-evolving. More...
virtual void	init_context (AssemblyContext &context)
	Initialize context for added physics variables. More...
virtual void	element_time_derivative (bool compute_jacobian, AssemblyContext &context, CachedValues &)
	Time dependent part(s) of physics for element interiors. More...
virtual void	mass_residual (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Mass matrix part(s) for element interiors. All boundary terms lie within the time_derivative part. More...
virtual void	register_parameter (const std::string &param_name, libMesh::ParameterMultiAccessor< libMesh::Number > &param_pointer) const
	Each subclass will register its copy of an independent. More...
Public Member Functions inherited from GRINS::TurbulenceModelsBase< Viscosity >
	TurbulenceModelsBase (const std::string &physics_name, const GetPot &input)
	~TurbulenceModelsBase ()
Public Member Functions inherited from GRINS::Physics
	Physics (const GRINS::PhysicsName &physics_name, const GetPot &input)
virtual	~Physics ()
virtual bool	enabled_on_elem (const libMesh::Elem *elem)
	Find if current physics is active on supplied element. More...
void	set_is_steady (bool is_steady)
	Sets whether this physics is to be solved with a steady solver or not. More...
bool	is_steady () const
	Returns whether or not this physics is being solved with a steady solver. More...
virtual void	auxiliary_init (MultiphysicsSystem &system)
	Any auxillary initialization a Physics class may need. More...
virtual void	register_postprocessing_vars (const GetPot &input, PostProcessedQuantities< libMesh::Real > &postprocessing)
	Register name of postprocessed quantity with PostProcessedQuantities. More...
virtual void	side_time_derivative (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Time dependent part(s) of physics for boundaries of elements on the domain boundary. More...
virtual void	nonlocal_time_derivative (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Time dependent part(s) of physics for scalar variables. More...
virtual void	element_constraint (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Constraint part(s) of physics for element interiors. More...
virtual void	side_constraint (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Constraint part(s) of physics for boundaries of elements on the domain boundary. More...
virtual void	nonlocal_constraint (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Constraint part(s) of physics for scalar variables. More...
virtual void	damping_residual (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Damping matrix part(s) for element interiors. All boundary terms lie within the time_derivative part. More...
virtual void	nonlocal_mass_residual (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Mass matrix part(s) for scalar variables. More...
void	init_ics (libMesh::FEMSystem *system, libMesh::CompositeFunction< libMesh::Number > &all_ics)
virtual void	compute_element_time_derivative_cache (const AssemblyContext &context, CachedValues &cache)
virtual void	compute_side_time_derivative_cache (const AssemblyContext &context, CachedValues &cache)
virtual void	compute_nonlocal_time_derivative_cache (const AssemblyContext &context, CachedValues &cache)
virtual void	compute_element_constraint_cache (const AssemblyContext &context, CachedValues &cache)
virtual void	compute_side_constraint_cache (const AssemblyContext &context, CachedValues &cache)
virtual void	compute_nonlocal_constraint_cache (const AssemblyContext &context, CachedValues &cache)
virtual void	compute_damping_residual_cache (const AssemblyContext &context, CachedValues &cache)
virtual void	compute_mass_residual_cache (const AssemblyContext &context, CachedValues &cache)
virtual void	compute_nonlocal_mass_residual_cache (const AssemblyContext &context, CachedValues &cache)
virtual void	compute_postprocessed_quantity (unsigned int quantity_index, const AssemblyContext &context, const libMesh::Point &point, libMesh::Real &value)
ICHandlingBase *	get_ic_handler ()
Public Member Functions inherited from GRINS::ParameterUser
	ParameterUser (const std::string &user_name)
virtual	~ParameterUser ()
virtual void	set_parameter (libMesh::Number &param_variable, const GetPot &input, const std::string &param_name, libMesh::Number param_default)
	Each subclass can simultaneously read a parameter value from. More...
virtual void	set_parameter (libMesh::ParsedFunction< libMesh::Number, libMesh::Gradient > &func, const GetPot &input, const std::string &func_param_name, const std::string &param_default)
	Each subclass can simultaneously read a parsed function from. More...
virtual void	set_parameter (libMesh::ParsedFEMFunction< libMesh::Number > &func, const GetPot &input, const std::string &func_param_name, const std::string &param_default)
	Each subclass can simultaneously read a parsed function from. More...
virtual void	move_parameter (const libMesh::Number &old_parameter, libMesh::Number &new_parameter)
	When cloning an object, we need to update parameter pointers. More...
virtual void	move_parameter (const libMesh::ParsedFunction< libMesh::Number, libMesh::Gradient > &old_func, libMesh::ParsedFunction< libMesh::Number, libMesh::Gradient > &new_func)
	When cloning an object, we need to update parameter pointers. More...
virtual void	move_parameter (const libMesh::ParsedFEMFunction< libMesh::Number > &old_func, libMesh::ParsedFEMFunction< libMesh::Number > &new_func)
	When cloning an object, we need to update parameter pointers. More...

Public Attributes
libMesh::UniquePtr< DistanceFunction >	distance_function
libMesh::UniquePtr< libMesh::SerialMesh >	boundary_mesh

Protected Attributes
VelocityFEVariables	_flow_vars
PressureFEVariable	_press_var
TurbulenceFEVariables	_turbulence_vars
SpalartAllmarasHelper	_spalart_allmaras_helper
SpalartAllmarasParameters	_sa_params
	Object handling the plethora of parameters. More...
std::set< libMesh::boundary_id_type >	_wall_ids
unsigned int	_no_of_walls
bool	_infinite_distance
Protected Attributes inherited from GRINS::TurbulenceModelsBase< Viscosity >
unsigned int	_dim
	Physical dimension of problem. More...
libMesh::Number	_rho
	Material parameters, read from input. More...
Viscosity	_mu
	Viscosity object. More...
Protected Attributes inherited from GRINS::Physics
const PhysicsName	_physics_name
	Name of the physics object. Used for reading physics specific inputs. More...
GRINS::ICHandlingBase *	_ic_handler
std::set< libMesh::subdomain_id_type >	_enabled_subdomains
	Subdomains on which the current Physics class is enabled. More...

Private Member Functions
	SpalartAllmaras ()
void	register_variables ()

Additional Inherited Members
Static Public Member Functions inherited from GRINS::Physics
static void	set_is_axisymmetric (bool is_axisymmetric)
	Set whether we should treat the problem as axisymmetric. More...
static bool	is_axisymmetric ()
Static Public Attributes inherited from GRINS::ParameterUser
static std::string	zero_vector_function = std::string("{0}")
	A parseable function string with LIBMESH_DIM components, all 0. More...
Protected Member Functions inherited from GRINS::Physics
libMesh::UniquePtr< libMesh::FEGenericBase< libMesh::Real > >	build_new_fe (const libMesh::Elem *elem, const libMesh::FEGenericBase< libMesh::Real > *fe, const libMesh::Point p)
void	parse_enabled_subdomains (const GetPot &input, const std::string &physics_name)
Static Protected Attributes inherited from GRINS::Physics
static bool	_is_steady = false
	Caches whether or not the solver that's being used is steady or not. More...
static bool	_is_axisymmetric = false
	Caches whether we are solving an axisymmetric problem or not. More...

Detailed Description

template<class Viscosity>
class GRINS::SpalartAllmaras< Viscosity >

Physics class for Incompressible Navier-Stokes.

This physics class implements the classical Incompressible Navier-Stokes equations. This is a templated class, the class Viscosity can be instantiated as a specific type (right now:ConstantViscosity or SpatiallyVaryingViscosity) to allow the user to specify a constant or spatially varying viscosity in the input file

Definition at line 58 of file spalart_allmaras.h.

Constructor & Destructor Documentation

template<class Mu >

GRINS::SpalartAllmaras< Mu >::SpalartAllmaras	(	const std::string &	physics_name,
		const GetPot &	input
	)

Definition at line 48 of file spalart_allmaras.C.

References GRINS::Physics::_ic_handler, GRINS::SpalartAllmaras< Viscosity >::_no_of_walls, GRINS::SpalartAllmaras< Viscosity >::_wall_ids, GRINS::SpalartAllmaras< Viscosity >::register_variables(), and GRINS::PhysicsNaming::spalart_allmaras().

    : TurbulenceModelsBase<Mu>(physics_name, input), // Define class variables
    _flow_vars(input,PhysicsNaming::incompressible_navier_stokes()),
    _press_var(input,PhysicsNaming::incompressible_navier_stokes(), true /*is_constraint_var*/),
    _turbulence_vars(input, PhysicsNaming::spalart_allmaras()),
    _spalart_allmaras_helper(input),
    _sa_params(input),
    _no_of_walls(input("Physics/"+PhysicsNaming::spalart_allmaras()+"/no_of_walls", 0)),
    _infinite_distance(input("Physics/"+PhysicsNaming::spalart_allmaras()+"/infinite_distance", false))
  {
    // Loop over the _no_of_walls and fill the wall_ids set
    for(unsigned int i = 0; i != _no_of_walls; i++)
      {
        _wall_ids.insert(input("Physics/"+PhysicsNaming::spalart_allmaras()+"/wall_ids", 0, i ));
      }

    std::cout<<"No of walls: "<<_no_of_walls<<std::endl;

    for( std::set<libMesh::boundary_id_type>::iterator b_id = _wall_ids.begin(); b_id != _wall_ids.end(); ++b_id )
      {
        std::cout<<"Boundary Id: "<<*b_id<<std::endl;
      }

    this->register_variables();

    this->_ic_handler = new GenericICHandler( physics_name, input );
  }

template<class Mu >

GRINS::SpalartAllmaras< Mu >::~SpalartAllmaras

(

)

Definition at line 77 of file spalart_allmaras.C.

  {
    return;
  }

template<class Viscosity >

GRINS::SpalartAllmaras< Viscosity >::SpalartAllmaras ( )

private

Member Function Documentation

template<class Mu >

void GRINS::SpalartAllmaras< Mu >::element_time_derivative ( bool  compute_jacobian, AssemblyContext &  context, CachedValues &  cache  )

virtual

Time dependent part(s) of physics for element interiors.

Reimplemented from GRINS::Physics.

Reimplemented in GRINS::SpalartAllmarasSPGSMStabilization< Viscosity >.

Definition at line 156 of file spalart_allmaras.C.

  {
#ifdef GRINS_USE_GRVY_TIMERS
    this->_timer->BeginTimer("SpalartAllmaras::element_time_derivative");
#endif

    // Get a pointer to the current element, we need this for computing
    // the distance to wall for the  quadrature points
    libMesh::Elem &elem_pointer = context.get_elem();

    // We get some references to cell-specific data that
    // will be used to assemble the linear system.

    // Element Jacobian * quadrature weights for interior integration.
    const std::vector<libMesh::Real> &JxW =
      context.get_element_fe(this->_turbulence_vars.nu())->get_JxW();

    // The viscosity shape functions at interior quadrature points.
    const std::vector<std::vector<libMesh::Real> >& nu_phi =
      context.get_element_fe(this->_turbulence_vars.nu())->get_phi();

    // The viscosity shape function gradients (in global coords.)
    // at interior quadrature points.
    const std::vector<std::vector<libMesh::RealGradient> >& nu_gradphi =
      context.get_element_fe(this->_turbulence_vars.nu())->get_dphi();

    // The number of local degrees of freedom in each variable.
    const unsigned int n_nu_dofs = context.get_dof_indices(this->_turbulence_vars.nu()).size();

    // The subvectors and submatrices we need to fill:
    //
    // K_{\alpha \beta} = R_{\alpha},{\beta} = \partial{ R_{\alpha} } / \partial{ {\beta} } (where R denotes residual)
    // e.g., for \alpha = v and \beta = u we get: K{vu} = R_{v},{u}
    // Note that Kpu, Kpv, Kpw and Fp comes as constraint.

    //libMesh::DenseSubMatrix<libMesh::Number> &Knunu = context.get_elem_jacobian(this->_turbulence_vars.nu(), this->_turbulence_vars.nu()); // R_{nu},{nu}

    libMesh::DenseSubVector<libMesh::Number> &Fnu = context.get_elem_residual(this->_turbulence_vars.nu()); // R_{nu}

    // Now we will build the element Jacobian and residual.
    // Constructing the residual requires the solution and its
    // gradient from the previous timestep.  This must be
    // calculated at each quadrature point by summing the
    // solution degree-of-freedom values by the appropriate
    // weight functions.
    unsigned int n_qpoints = context.get_element_qrule().n_points();

    // Auto pointer to distance fcn evaluated at quad points
    libMesh::UniquePtr< libMesh::DenseVector<libMesh::Real> > distance_qp;

    // Fill the vector of distances to quadrature points
    distance_qp = this->distance_function->interpolate(&elem_pointer, context.get_element_qrule().get_points());

    for (unsigned int qp=0; qp != n_qpoints; qp++)
      {
        // Compute the solution & its gradient at the old Newton iterate.
        libMesh::Number nu;
        nu = context.interior_value(this->_turbulence_vars.nu(), qp);

        libMesh::Gradient grad_nu;
        grad_nu = context.interior_gradient(this->_turbulence_vars.nu(), qp);

        libMesh::Real jac = JxW[qp];

        // The physical viscosity
        libMesh::Real mu_qp = this->_mu(context, qp);

        // The vorticity value
        libMesh::Real vorticity_value_qp = this->_spalart_allmaras_helper.vorticity(context, qp);

        // The flow velocity
        libMesh::Number u,v;
        u = context.interior_value(this->_flow_vars.u(), qp);
        v = context.interior_value(this->_flow_vars.v(), qp);

        libMesh::NumberVectorValue U(u,v);
        if (this->_dim == 3)
          U(2) = context.interior_value(this->_flow_vars.w(), qp);

        //The source term
        libMesh::Real S_tilde = this->_sa_params.source_fn(nu, mu_qp, (*distance_qp)(qp), vorticity_value_qp, _infinite_distance);

        // The ft2 function needed for the negative S-A model
        libMesh::Real chi = nu/mu_qp;
        libMesh::Real f_t2 = this->_sa_params.get_c_t3()*exp(-this->_sa_params.get_c_t4()*chi*chi);

        libMesh::Real source_term = this->_sa_params.get_cb1()*(1 - f_t2)*S_tilde*nu;
        // For a negative turbulent viscosity nu < 0.0 we need to use a different production function
        if(nu < 0.0)
          {
            source_term = this->_sa_params.get_cb1()*(1 - this->_sa_params.get_c_t3())*vorticity_value_qp*nu;
          }

        // The wall destruction term
        libMesh::Real fw = this->_sa_params.destruction_fn(nu, (*distance_qp)(qp), S_tilde, _infinite_distance);

        libMesh::Real nud = 0.0;
        if(_infinite_distance)
        {
          nud = 0.0;
        }
        else
        {
          nud = nu/(*distance_qp)(qp);
        }
        libMesh::Real nud2 = nud*nud;
        libMesh::Real kappa2 = (this->_sa_params.get_kappa())*(this->_sa_params.get_kappa());
        libMesh::Real cw1 = this->_sa_params.get_cb1()/kappa2 + (1.0 + this->_sa_params.get_cb2())/this->_sa_params.get_sigma();
        libMesh::Real destruction_term = (cw1*fw - (this->_sa_params.get_cb1()/kappa2)*f_t2)*nud2;

        // For a negative turbulent viscosity nu < 0.0 we need to use a different production function
        if(nu < 0.0)
          {
            destruction_term = -cw1*nud2;
          }

        libMesh::Real fn1 = 1.0;
        // For a negative turbulent viscosity, fn1 needs to be calculated
        if(nu < 0.0)
          {
            libMesh::Real chi3 = chi*chi*chi;
            fn1 = (this->_sa_params.get_c_n1() + chi3)/(this->_sa_params.get_c_n1() - chi3);
          }

        // First, an i-loop over the viscosity degrees of freedom.
        for (unsigned int i=0; i != n_nu_dofs; i++)
          {
            Fnu(i) += jac *
              ( -this->_rho*(U*grad_nu)*nu_phi[i][qp]  // convection term (assumes incompressibility)
                +source_term*nu_phi[i][qp] // source term
                + (1./this->_sa_params.get_sigma())*(-(mu_qp+(fn1*nu))*grad_nu*nu_gradphi[i][qp] + this->_sa_params.get_cb2()*grad_nu*grad_nu*nu_phi[i][qp]) // diffusion term
                - destruction_term*nu_phi[i][qp]); // destruction term

            // Compute the jacobian if not using numerical jacobians
            if (compute_jacobian)
              {
                libmesh_not_implemented();
              } // end - if (compute_jacobian)

          } // end of the outer dof (i) loop
      } // end of the quadrature point (qp) loop

#ifdef GRINS_USE_GRVY_TIMERS
    this->_timer->EndTimer("SpalartAllmaras::element_time_derivative");
#endif

    return;
  }

template<class Mu >

void GRINS::SpalartAllmaras< Mu >::init_context ( AssemblyContext &  context )

virtual

Initialize context for added physics variables.

Reimplemented from GRINS::Physics.

Reimplemented in GRINS::SpalartAllmarasStabilizationBase< Viscosity >.

Definition at line 124 of file spalart_allmaras.C.

Referenced by GRINS::SpalartAllmarasStabilizationBase< Viscosity >::init_context().

  {
    // We should prerequest all the data
    // we will need to build the linear system
    // or evaluate a quantity of interest.
    context.get_element_fe(_turbulence_vars.nu())->get_JxW();
    context.get_element_fe(_turbulence_vars.nu())->get_phi();
    context.get_element_fe(_turbulence_vars.nu())->get_dphi();
    context.get_element_fe(_turbulence_vars.nu())->get_xyz();

    context.get_element_fe(_turbulence_vars.nu())->get_phi();
    context.get_element_fe(_turbulence_vars.nu())->get_xyz();

    context.get_side_fe(_turbulence_vars.nu())->get_JxW();
    context.get_side_fe(_turbulence_vars.nu())->get_phi();
    context.get_side_fe(_turbulence_vars.nu())->get_dphi();
    context.get_side_fe(_turbulence_vars.nu())->get_xyz();

    return;
  }

template<class Mu >

void GRINS::SpalartAllmaras< Mu >::init_variables ( libMesh::FEMSystem *  system )

virtual

Initialize variables for this physics.

Reimplemented from GRINS::TurbulenceModelsBase< Viscosity >.

Reimplemented in GRINS::SpalartAllmarasStabilizationBase< Viscosity >, and GRINS::SpalartAllmarasSPGSMStabilization< Viscosity >.

Definition at line 94 of file spalart_allmaras.C.

References GRINS::TurbulenceModelsBase< Viscosity >::init_variables().

Referenced by GRINS::SpalartAllmarasStabilizationBase< Viscosity >::init_variables().

  {
    // Init base class.
    TurbulenceModelsBase<Mu>::init_variables(system);

    this->_turbulence_vars.init(system);
    this->_flow_vars.init(system);
    this->_press_var.init(system);

    // Init the variables belonging to SA helper
    _spalart_allmaras_helper.init_variables(system);

    // Initialize Boundary Mesh
    this->boundary_mesh.reset(new libMesh::SerialMesh(system->get_mesh().comm() , this->_dim));

    // Use the _wall_ids set to build the boundary mesh object
    (system->get_mesh()).boundary_info->sync(_wall_ids, *boundary_mesh);

    //this->distance_function.reset(new DistanceFunction(system->get_equation_systems(), dynamic_cast<libMesh::UnstructuredMesh&>(system->get_mesh()) ));
    this->distance_function.reset(new DistanceFunction(system->get_equation_systems(), *boundary_mesh));

    // For now, we are hacking this. Without this initialize function being called
    // the distance variable will just be zero. For the channel flow, we are just
    // going to analytically compute the wall distance
    //this->distance_function->initialize();

    return;
  }

template<class K >

void GRINS::SpalartAllmaras< K >::mass_residual ( bool  compute_jacobian, AssemblyContext &  context, CachedValues &  cache  )

virtual

Mass matrix part(s) for element interiors. All boundary terms lie within the time_derivative part.

Reimplemented from GRINS::Physics.

Reimplemented in GRINS::SpalartAllmarasSPGSMStabilization< Viscosity >.

Definition at line 308 of file spalart_allmaras.C.

  {
#ifdef GRINS_USE_GRVY_TIMERS
    this->_timer->BeginTimer("SpalartAllmaras::mass_residual");
#endif

    // First we get some references to cell-specific data that
    // will be used to assemble the linear system.

    // Element Jacobian * quadrature weights for interior integration.
    const std::vector<libMesh::Real> &JxW =
      context.get_element_fe(this->_turbulence_vars.nu())->get_JxW();

    // The viscosity shape functions at interior quadrature points.
    const std::vector<std::vector<libMesh::Real> >& nu_phi =
      context.get_element_fe(this->_turbulence_vars.nu())->get_phi();

    // The number of local degrees of freedom in each variable.
    const unsigned int n_nu_dofs = context.get_dof_indices(this->_turbulence_vars.nu()).size();

    // The subvectors and submatrices we need to fill:
    libMesh::DenseSubVector<libMesh::Real> &F = context.get_elem_residual(this->_turbulence_vars.nu());

    //libMesh::DenseSubMatrix<libMesh::Real> &M = context.get_elem_jacobian(this->_turbulence_vars.nu(), this->_turbulence_vars.nu());

    unsigned int n_qpoints = context.get_element_qrule().n_points();

    for (unsigned int qp = 0; qp != n_qpoints; ++qp)
      {
        // For the mass residual, we need to be a little careful.
        // The time integrator is handling the time-discretization
        // for us so we need to supply M(u_fixed)*u' for the residual.
        // u_fixed will be given by the fixed_interior_value function
        // while u' will be given by the interior_rate function.
        libMesh::Real nu_dot;
        context.interior_rate(this->_turbulence_vars.nu(), qp, nu_dot);

        for (unsigned int i = 0; i != n_nu_dofs; ++i)
          {
            F(i) += -JxW[qp]*this->_rho*nu_dot*nu_phi[i][qp];

            if( compute_jacobian )
              {
                libmesh_not_implemented();
              }// End of check on Jacobian

          } // End of element dof loop

      } // End of the quadrature point loop

#ifdef GRINS_USE_GRVY_TIMERS
    this->_timer->EndTimer("SpalartAllmaras::mass_residual");
#endif

    return;
  }

template<class Mu >

void GRINS::SpalartAllmaras< Mu >::register_parameter ( const std::string &  param_name, libMesh::ParameterMultiAccessor< libMesh::Number > &  param_pointer  ) const

virtual

Each subclass will register its copy of an independent.

Reimplemented from GRINS::TurbulenceModelsBase< Viscosity >.

Reimplemented in GRINS::SpalartAllmarasSPGSMStabilization< Viscosity >, and GRINS::SpalartAllmarasStabilizationBase< Viscosity >.

Definition at line 369 of file spalart_allmaras.C.

References GRINS::ParameterUser::register_parameter().

Referenced by GRINS::SpalartAllmarasStabilizationBase< Viscosity >::register_parameter().

  {
    ParameterUser::register_parameter(param_name, param_pointer);
    this->_mu.register_parameter(param_name, param_pointer);
    this->_sa_params.register_parameter(param_name, param_pointer);
  }

template<class Mu >

void GRINS::SpalartAllmaras< Mu >::register_variables ( )

private

Definition at line 83 of file spalart_allmaras.C.

References GRINS::GRINSPrivate::VariableWarehouse::check_and_register_variable(), GRINS::VariablesParsing::pressure_section(), GRINS::VariablesParsing::turbulence_section(), and GRINS::VariablesParsing::velocity_section().

Referenced by GRINS::SpalartAllmaras< Viscosity >::SpalartAllmaras().

  {
    GRINSPrivate::VariableWarehouse::check_and_register_variable(VariablesParsing::pressure_section(),
                                                                 this->_press_var);
    GRINSPrivate::VariableWarehouse::check_and_register_variable(VariablesParsing::velocity_section(),
                                                                 this->_flow_vars);
    GRINSPrivate::VariableWarehouse::check_and_register_variable(VariablesParsing::turbulence_section(),
                                                                 this->_turbulence_vars);
  }

template<class Mu >

void GRINS::SpalartAllmaras< Mu >::set_time_evolving_vars ( libMesh::FEMSystem *  system )

virtual

Sets velocity variables to be time-evolving.

Reimplemented from GRINS::Physics.

Definition at line 146 of file spalart_allmaras.C.

  {
    // Tell the system to march velocity forward in time, but
    // leave p as a constraint only
    system->time_evolving(this->_turbulence_vars.nu());

    return;
  }

Member Data Documentation

template<class Viscosity >

VelocityFEVariables GRINS::SpalartAllmaras< Viscosity >::_flow_vars

protected

Definition at line 98 of file spalart_allmaras.h.

template<class Viscosity >

bool GRINS::SpalartAllmaras< Viscosity >::_infinite_distance

protected

Definition at line 116 of file spalart_allmaras.h.

template<class Viscosity >

unsigned int GRINS::SpalartAllmaras< Viscosity >::_no_of_walls

protected

Definition at line 113 of file spalart_allmaras.h.

Referenced by GRINS::SpalartAllmaras< Viscosity >::SpalartAllmaras().

template<class Viscosity >

PressureFEVariable GRINS::SpalartAllmaras< Viscosity >::_press_var

protected

Definition at line 99 of file spalart_allmaras.h.

template<class Viscosity >

SpalartAllmarasParameters GRINS::SpalartAllmaras< Viscosity >::_sa_params

protected

Object handling the plethora of parameters.

Definition at line 107 of file spalart_allmaras.h.

template<class Viscosity >

SpalartAllmarasHelper GRINS::SpalartAllmaras< Viscosity >::_spalart_allmaras_helper

protected

Definition at line 104 of file spalart_allmaras.h.

template<class Viscosity >

TurbulenceFEVariables GRINS::SpalartAllmaras< Viscosity >::_turbulence_vars

protected

Definition at line 101 of file spalart_allmaras.h.

template<class Viscosity >

std::set<libMesh::boundary_id_type> GRINS::SpalartAllmaras< Viscosity >::_wall_ids

protected

Definition at line 110 of file spalart_allmaras.h.

Referenced by GRINS::SpalartAllmaras< Viscosity >::SpalartAllmaras().

template<class Viscosity >

libMesh::UniquePtr<libMesh::SerialMesh> GRINS::SpalartAllmaras< Viscosity >::boundary_mesh

Definition at line 86 of file spalart_allmaras.h.

template<class Viscosity >

libMesh::UniquePtr<DistanceFunction> GRINS::SpalartAllmaras< Viscosity >::distance_function

Definition at line 83 of file spalart_allmaras.h.

---

The documentation for this class was generated from the following files:

• src/physics/include/grins/spalart_allmaras.h
• src/physics/src/spalart_allmaras.C
