#include <constant_viscosity.h>

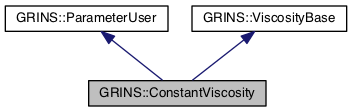

Inheritance diagram for GRINS::ConstantViscosity:

Collaboration diagram for GRINS::ConstantViscosity:

Public Member Functions
	ConstantViscosity (const GetPot &input, const std::string &material)
	Constructor with specified material. More...

	ConstantViscosity (const GetPot &input)
	Deprecated constructor. More...

virtual	~ConstantViscosity ()

libMesh::Real	operator() () const

libMesh::Real	operator() (AssemblyContext &context, unsigned int qp) const

libMesh::Real	operator() (const libMesh::Point &p, const libMesh::Real time)

libMesh::Real	operator() (const libMesh::Real T) const

libMesh::Real	deriv (const libMesh::Real T) const

void	init (libMesh::FEMSystem *)

Public Member Functions inherited from GRINS::ParameterUser
	ParameterUser (const std::string &user_name)

virtual	~ParameterUser ()

virtual void	set_parameter (libMesh::Number &param_variable, const GetPot &input, const std::string &param_name, libMesh::Number param_default)
	Each subclass can simultaneously read a parameter value from. More...

virtual void	set_parameter (libMesh::ParsedFunction< libMesh::Number, libMesh::Gradient > &func, const GetPot &input, const std::string &func_param_name, const std::string &param_default)
	Each subclass can simultaneously read a parsed function from. More...

virtual void	set_parameter (libMesh::ParsedFEMFunction< libMesh::Number > &func, const GetPot &input, const std::string &func_param_name, const std::string &param_default)
	Each subclass can simultaneously read a parsed function from. More...

virtual void	move_parameter (const libMesh::Number &old_parameter, libMesh::Number &new_parameter)
	When cloning an object, we need to update parameter pointers. More...

virtual void	move_parameter (const libMesh::ParsedFunction< libMesh::Number, libMesh::Gradient > &old_func, libMesh::ParsedFunction< libMesh::Number, libMesh::Gradient > &new_func)
	When cloning an object, we need to update parameter pointers. More...

virtual void	move_parameter (const libMesh::ParsedFEMFunction< libMesh::Number > &old_func, libMesh::ParsedFEMFunction< libMesh::Number > &new_func)
	When cloning an object, we need to update parameter pointers. More...

virtual void	register_parameter (const std::string &param_name, libMesh::ParameterMultiAccessor< libMesh::Number > &param_pointer) const
	Each subclass will register its copy of an independent. More...

Public Member Functions inherited from GRINS::ViscosityBase
	ViscosityBase ()

virtual	~ViscosityBase ()

Private Member Functions
	ConstantViscosity ()

Private Attributes
libMesh::Real	_mu

Additional Inherited Members
Static Public Attributes inherited from GRINS::ParameterUser
static std::string	zero_vector_function = std::string("{0}")
	A parseable function string with LIBMESH_DIM components, all 0. More...

Protected Member Functions inherited from GRINS::ViscosityBase
void	check_input_consistency (const GetPot &input, const std::string &material) const

void	old_mu_warning () const

Detailed Description

Definition at line 43 of file constant_viscosity.h.

Constructor & Destructor Documentation

GRINS::ConstantViscosity::ConstantViscosity	(	const GetPot &	input,
		const std::string &	material
	)

Constructor with specified material.

Will look in the input file for [Materials/material/Viscosity/value] for the value of viscosity.

Definition at line 65 of file constant_viscosity.C.

References _mu, GRINS::ViscosityBase::check_input_consistency(), grins_warning, GRINS::PhysicsNaming::incompressible_navier_stokes(), GRINS::ViscosityBase::old_mu_warning(), and GRINS::ParameterUser::set_parameter().

     : ParameterUser("ConstantViscosity"),
       ViscosityBase(),
       _mu( 0.0 ) // Initialize to nonsense value
   {
     this->check_input_consistency(input,material);

     if( input.have_variable("Materials/"+material+"/Viscosity/value") &&
         input.have_variable("Physics/"+PhysicsNaming::incompressible_navier_stokes()+"/mu") )
       {
         libmesh_error_msg("Error: Cannot specify both Materials/"+material+"/Viscosity/value and Physics/"+PhysicsNaming::incompressible_navier_stokes()+"/mu");
       }

     // If we have the "new" version, then parse it
     if( input.have_variable("Materials/"+material+"/Viscosity/value") )
       {
         this->set_parameter
           (_mu, input, "Materials/"+material+"/Viscosity/value", _mu);
       }
     // If instead we have the old version, use that.
     else if( input.have_variable("Materials/Viscosity/mu") )
       {
         this->old_mu_warning();

         this->set_parameter
           (_mu, input, "Materials/Viscosity/mu", _mu);
       }
     /* If we don't have the new version of materials parsing or
        explicitly have the old version, we're assuming an even older
        version. Both of the older versions are deprecated. */
     else if( !input.have_variable("Materials/Viscosity/mu") &&
              !input.have_variable("Materials/"+material+"/Viscosity/value") )
       {
         std::string warning = "WARNING: No Materials/Viscosity/mu or\n";
         warning += "       Materials/"+material+"/Viscosity/value specified!\n";
         warning += "       We are assuming then that you want to specify through\n";
         warning += "       Physics/"+PhysicsNaming::incompressible_navier_stokes()+"/mu.\n";
         warning += "       This is DEPRECATED. Please updated to use Materials/"+material+"/Viscosity/value.\n";
         grins_warning(warning);

         // Try and get the viscosity from other specifications
         this->set_parameter
           (_mu, input, "Physics/"+PhysicsNaming::incompressible_navier_stokes()+"/mu", _mu);
       }
     else
       {
         // This shouldn't happen
         libmesh_error();
       }

     // We'd better have postive viscosity when we're all done.
     libmesh_assert_greater( _mu, 0.0 );
   }

GRINS::ConstantViscosity::ConstantViscosity ( const GetPot & input )

Deprecated constructor.

Definition at line 39 of file constant_viscosity.C.

References _mu, grins_warning, GRINS::PhysicsNaming::incompressible_navier_stokes(), and GRINS::ParameterUser::set_parameter().

     : ParameterUser("ConstantViscosity"),
       ViscosityBase(),
       _mu(1.0)
   {
     // Warning about this constructor being deprecated
     {
       std::string warning = "WARNING: Use of this constructor is DEPRECATED.\n";
       warning += "         Please update to use constructor with input material name.\n";
       grins_warning(warning);
     }

     if( !input.have_variable("Materials/Viscosity/mu") )
       {
         libmesh_warning("No Materials/Viscosity/mu specified!\n");
         // Try and get the viscosity from other specifications
         this->set_parameter
           (_mu, input, "Physics/"+PhysicsNaming::incompressible_navier_stokes()+"/mu", _mu);
       }
     else
       {
         this->set_parameter
           (_mu, input, "Materials/Viscosity/mu", _mu);
       }
   }

GRINS::ConstantViscosity::~ConstantViscosity ( )

virtual

Definition at line 119 of file constant_viscosity.C.

   {
     return;
   }

GRINS::ConstantViscosity::ConstantViscosity ( )

private

Member Function Documentation

libMesh::Real GRINS::ConstantViscosity::deriv ( const libMesh::Real T ) const

inline

Definition at line 104 of file constant_viscosity.h.

   {
     return 0.0;
   }

void GRINS::ConstantViscosity::init ( libMesh::FEMSystem * )

inline

Definition at line 67 of file constant_viscosity.h.

67 {};

libMesh::Real GRINS::ConstantViscosity::operator() ( ) const

inline

Definition at line 79 of file constant_viscosity.h.

References _mu.

   {
     return _mu;
   }

libMesh::Real GRINS::ConstantViscosity::operator()	(	AssemblyContext &	context,
		unsigned int	qp
	)		const

inline

Definition at line 85 of file constant_viscosity.h.

References _mu.

   {
     return _mu;
   }

libMesh::Real GRINS::ConstantViscosity::operator()	(	const libMesh::Point &	p,
		const libMesh::Real	time
	)

inline

Definition at line 91 of file constant_viscosity.h.

References _mu.

   {
     return _mu;
   }

libMesh::Real GRINS::ConstantViscosity::operator() ( const libMesh::Real T ) const

inline

Definition at line 98 of file constant_viscosity.h.

   {
     return (*this)();
   }

Member Data Documentation

libMesh::Real GRINS::ConstantViscosity::_mu

private

Definition at line 73 of file constant_viscosity.h.

Referenced by ConstantViscosity(), and operator()().

The documentation for this class was generated from the following files:

src/properties/include/grins/constant_viscosity.h
src/properties/src/constant_viscosity.C
