#include <solid_mechanics_abstract.h>

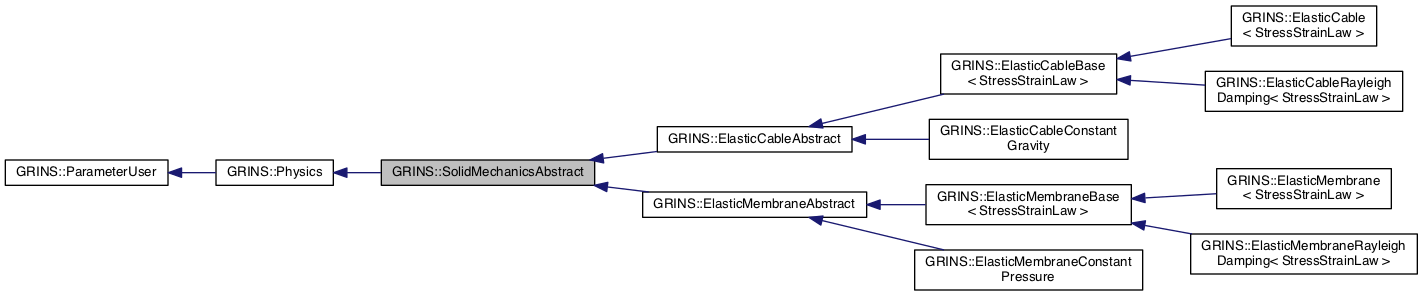

Inheritance diagram for GRINS::SolidMechanicsAbstract:

[legend]

Collaboration diagram for GRINS::SolidMechanicsAbstract:

[legend]

Public Member Functions
	SolidMechanicsAbstract (const GRINS::PhysicsName &physics_name, const GetPot &input)

virtual	~SolidMechanicsAbstract ()

virtual void	init_variables (libMesh::FEMSystem *system)
	Initialize variables for this physics. More...

virtual void	set_time_evolving_vars (libMesh::FEMSystem *system)
	Set which variables are time evolving. More...

Public Member Functions inherited from GRINS::Physics
	Physics (const GRINS::PhysicsName &physics_name, const GetPot &input)

virtual	~Physics ()

virtual bool	enabled_on_elem (const libMesh::Elem *elem)
	Find if current physics is active on supplied element. More...

void	set_is_steady (bool is_steady)
	Sets whether this physics is to be solved with a steady solver or not. More...

bool	is_steady () const
	Returns whether or not this physics is being solved with a steady solver. More...

virtual void	auxiliary_init (MultiphysicsSystem &system)
	Any auxillary initialization a Physics class may need. More...

virtual void	register_postprocessing_vars (const GetPot &input, PostProcessedQuantities< libMesh::Real > &postprocessing)
	Register name of postprocessed quantity with PostProcessedQuantities. More...

virtual void	init_context (AssemblyContext &context)
	Initialize context for added physics variables. More...

virtual void	element_time_derivative (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Time dependent part(s) of physics for element interiors. More...

virtual void	side_time_derivative (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Time dependent part(s) of physics for boundaries of elements on the domain boundary. More...

virtual void	nonlocal_time_derivative (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Time dependent part(s) of physics for scalar variables. More...

virtual void	element_constraint (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Constraint part(s) of physics for element interiors. More...

virtual void	side_constraint (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Constraint part(s) of physics for boundaries of elements on the domain boundary. More...

virtual void	nonlocal_constraint (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Constraint part(s) of physics for scalar variables. More...

virtual void	damping_residual (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Damping matrix part(s) for element interiors. All boundary terms lie within the time_derivative part. More...

virtual void	mass_residual (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Mass matrix part(s) for element interiors. All boundary terms lie within the time_derivative part. More...

virtual void	nonlocal_mass_residual (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Mass matrix part(s) for scalar variables. More...

void	init_ics (libMesh::FEMSystem *system, libMesh::CompositeFunction< libMesh::Number > &all_ics)

virtual void	compute_element_time_derivative_cache (const AssemblyContext &context, CachedValues &cache)

virtual void	compute_side_time_derivative_cache (const AssemblyContext &context, CachedValues &cache)

virtual void	compute_nonlocal_time_derivative_cache (const AssemblyContext &context, CachedValues &cache)

virtual void	compute_element_constraint_cache (const AssemblyContext &context, CachedValues &cache)

virtual void	compute_side_constraint_cache (const AssemblyContext &context, CachedValues &cache)

virtual void	compute_nonlocal_constraint_cache (const AssemblyContext &context, CachedValues &cache)

virtual void	compute_damping_residual_cache (const AssemblyContext &context, CachedValues &cache)

virtual void	compute_mass_residual_cache (const AssemblyContext &context, CachedValues &cache)

virtual void	compute_nonlocal_mass_residual_cache (const AssemblyContext &context, CachedValues &cache)

virtual void	compute_postprocessed_quantity (unsigned int quantity_index, const AssemblyContext &context, const libMesh::Point &point, libMesh::Real &value)

ICHandlingBase *	get_ic_handler ()

Public Member Functions inherited from GRINS::ParameterUser
	ParameterUser (const std::string &user_name)

virtual	~ParameterUser ()

virtual void	set_parameter (libMesh::Number &param_variable, const GetPot &input, const std::string &param_name, libMesh::Number param_default)
	Each subclass can simultaneously read a parameter value from. More...

virtual void	set_parameter (libMesh::ParsedFunction< libMesh::Number, libMesh::Gradient > &func, const GetPot &input, const std::string &func_param_name, const std::string &param_default)
	Each subclass can simultaneously read a parsed function from. More...

virtual void	set_parameter (libMesh::ParsedFEMFunction< libMesh::Number > &func, const GetPot &input, const std::string &func_param_name, const std::string &param_default)
	Each subclass can simultaneously read a parsed function from. More...

virtual void	move_parameter (const libMesh::Number &old_parameter, libMesh::Number &new_parameter)
	When cloning an object, we need to update parameter pointers. More...

virtual void	move_parameter (const libMesh::ParsedFunction< libMesh::Number, libMesh::Gradient > &old_func, libMesh::ParsedFunction< libMesh::Number, libMesh::Gradient > &new_func)
	When cloning an object, we need to update parameter pointers. More...

virtual void	move_parameter (const libMesh::ParsedFEMFunction< libMesh::Number > &old_func, libMesh::ParsedFEMFunction< libMesh::Number > &new_func)
	When cloning an object, we need to update parameter pointers. More...

virtual void	register_parameter (const std::string &param_name, libMesh::ParameterMultiAccessor< libMesh::Number > &param_pointer) const
	Each subclass will register its copy of an independent. More...

Protected Types
typedef const libMesh::DenseSubVector< libMesh::Number > &(libMesh::DiffContext::*	VarFuncType) (unsigned int) const

typedef void(libMesh::FEMContext::*	InteriorFuncType) (unsigned int, unsigned int, libMesh::Real &) const

typedef libMesh::Real(libMesh::DiffContext::*	VarDerivType) () const

Protected Attributes
DisplacementFEVariables	_disp_vars

Protected Attributes inherited from GRINS::Physics
const PhysicsName	_physics_name
	Name of the physics object. Used for reading physics specific inputs. More...

GRINS::ICHandlingBase *	_ic_handler

std::set< libMesh::subdomain_id_type >	_enabled_subdomains
	Subdomains on which the current Physics class is enabled. More...

Private Member Functions
	SolidMechanicsAbstract ()

void	register_variables ()

Additional Inherited Members
Static Public Member Functions inherited from GRINS::Physics
static void	set_is_axisymmetric (bool is_axisymmetric)
	Set whether we should treat the problem as axisymmetric. More...

static bool	is_axisymmetric ()

Static Public Attributes inherited from GRINS::ParameterUser
static std::string	zero_vector_function = std::string("{0}")
	A parseable function string with LIBMESH_DIM components, all 0. More...

Protected Member Functions inherited from GRINS::Physics
libMesh::UniquePtr< libMesh::FEGenericBase< libMesh::Real > >	build_new_fe (const libMesh::Elem elem, const libMesh::FEGenericBase< libMesh::Real > fe, const libMesh::Point p)

void	parse_enabled_subdomains (const GetPot &input, const std::string &physics_name)

Static Protected Attributes inherited from GRINS::Physics
static bool	_is_steady = false
	Caches whether or not the solver that's being used is steady or not. More...

static bool	_is_axisymmetric = false
	Caches whether we are solving an axisymmetric problem or not. More...

Detailed Description

Definition at line 37 of file solid_mechanics_abstract.h.

Member Typedef Documentation

typedef void(libMesh::FEMContext::* GRINS::SolidMechanicsAbstract::InteriorFuncType) (unsigned int, unsigned int, libMesh::Real &) const

protected

Definition at line 57 of file solid_mechanics_abstract.h.

typedef libMesh::Real(libMesh::DiffContext::* GRINS::SolidMechanicsAbstract::VarDerivType) () const

protected

Definition at line 59 of file solid_mechanics_abstract.h.

typedef const libMesh::DenseSubVector<libMesh::Number>&(libMesh::DiffContext::* GRINS::SolidMechanicsAbstract::VarFuncType) (unsigned int) const

protected

Definition at line 55 of file solid_mechanics_abstract.h.

Constructor & Destructor Documentation

GRINS::SolidMechanicsAbstract::SolidMechanicsAbstract	(	const GRINS::PhysicsName &	physics_name,
		const GetPot &	input
	)

Definition at line 39 of file solid_mechanics_abstract.C.

References _disp_vars, register_variables(), and GRINS::FEVariablesBase::set_neumann_bc_is_positive().

     : Physics(physics_name,input),
       _disp_vars(input,physics_name,false,true)// is_2D = false, is_3D = true
   {
     this->register_variables();

     // For solid mechanics problems, we need to set the sign for tractions
     // to '-' since the second order time solvers use a Newton residual of the form
     // M(u)\ddot{u} + C(u)\dot{u} + F(u) + G(u) = 0
     // In this case, then, the natural boundary conditions for the weak form
     // will all have a '-', so we need to set that so the input tractions are
     // positive.
     _disp_vars.set_neumann_bc_is_positive(false);
   }

virtual GRINS::SolidMechanicsAbstract::~SolidMechanicsAbstract ( )

inlinevirtual

Definition at line 44 of file solid_mechanics_abstract.h.

44 {};

GRINS::SolidMechanicsAbstract::SolidMechanicsAbstract ( )

private

Member Function Documentation

void GRINS::SolidMechanicsAbstract::init_variables ( libMesh::FEMSystem * system )

virtual

Initialize variables for this physics.

Implements GRINS::Physics.

Reimplemented in GRINS::ElasticMembraneBase< StressStrainLaw >.

Definition at line 55 of file solid_mechanics_abstract.C.

References _disp_vars, and GRINS::DisplacementFEVariables::init().

Referenced by GRINS::ElasticMembraneBase< StressStrainLaw >::init_variables().

   {
     _disp_vars.init(system);
   }

void GRINS::SolidMechanicsAbstract::register_variables ( )

private

Definition at line 68 of file solid_mechanics_abstract.C.

References _disp_vars, GRINS::GRINSPrivate::VariableWarehouse::check_and_register_variable(), and GRINS::VariablesParsing::displacement_section().

Referenced by SolidMechanicsAbstract().

   {
     GRINSPrivate::VariableWarehouse::check_and_register_variable(VariablesParsing::displacement_section(),
                                                                  this->_disp_vars);
   }

void GRINS::SolidMechanicsAbstract::set_time_evolving_vars ( libMesh::FEMSystem * system )

virtual

Set which variables are time evolving.

Set those variables which evolve in time (as opposed to variables that behave like constraints). This is done separately from init_variables() because the MultiphysicsSystem must initialize its base class before time_evolving variables can be set. Default implementation is no time evolving variables.

Reimplemented from GRINS::Physics.

Definition at line 60 of file solid_mechanics_abstract.C.

References _disp_vars, GRINS::DisplacementFEVariables::u(), GRINS::DisplacementFEVariables::v(), and GRINS::DisplacementFEVariables::w().

   {
     // Tell the system to march temperature forward in time
     system->time_evolving(_disp_vars.u());
     system->time_evolving(_disp_vars.v());
     system->time_evolving(_disp_vars.w());
   }

Member Data Documentation

DisplacementFEVariables GRINS::SolidMechanicsAbstract::_disp_vars

protected

Definition at line 53 of file solid_mechanics_abstract.h.

Referenced by GRINS::ElasticCableConstantGravity::element_time_derivative(), GRINS::ElasticMembraneConstantPressure::element_time_derivative(), GRINS::ElasticMembraneAbstract::get_fe(), GRINS::ElasticCableAbstract::get_fe(), init_variables(), register_variables(), set_time_evolving_vars(), and SolidMechanicsAbstract().

The documentation for this class was generated from the following files:

src/physics/include/grins/solid_mechanics_abstract.h
src/physics/src/solid_mechanics_abstract.C
