GRINS::ElasticMembraneRayleighDamping< StressStrainLaw > Class Template Reference

#include <elastic_membrane_rayleigh_damping.h>

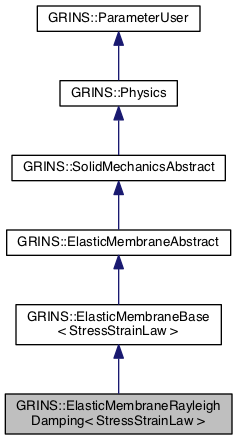

Inheritance diagram for GRINS::ElasticMembraneRayleighDamping< StressStrainLaw >:
Inheritance graph
[legend]

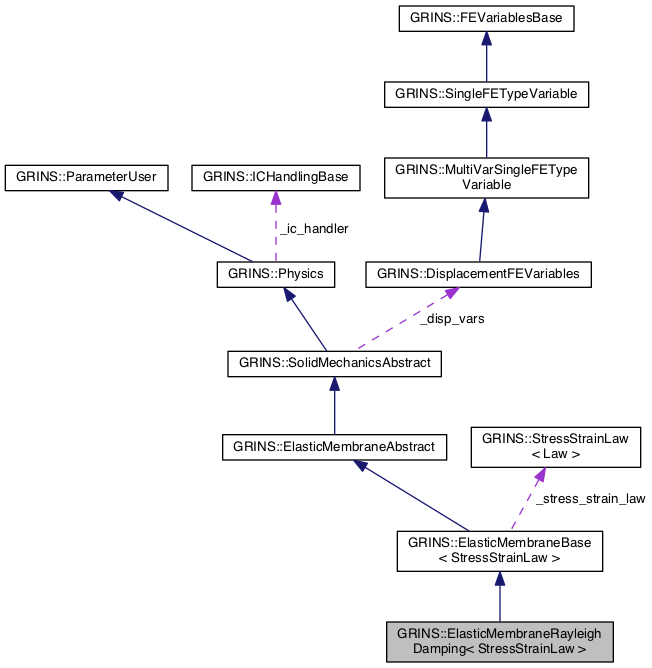

Collaboration diagram for GRINS::ElasticMembraneRayleighDamping< StressStrainLaw >:
Collaboration graph
[legend]

Public Member Functions

 ElasticMembraneRayleighDamping (const PhysicsName &physics_name, const GetPot &input, bool is_compressible)

virtual ~ElasticMembraneRayleighDamping ()

virtual void damping_residual (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
 Time dependent part(s) of physics for element interiors. More...

- Public Member Functions inherited from GRINS::ElasticMembraneBase< StressStrainLaw >
 ElasticMembraneBase (const GRINS::PhysicsName &physics_name, const GetPot &input, bool is_compressible)

virtual ~ElasticMembraneBase ()

virtual void init_variables (libMesh::FEMSystem *system)
 Initialize variables for this physics. More...

- Public Member Functions inherited from GRINS::ElasticMembraneAbstract
 ElasticMembraneAbstract (const GRINS::PhysicsName &physics_name, const GetPot &input)

virtual ~ElasticMembraneAbstract ()

virtual void init_context (AssemblyContext &context)
 Initialize context for added physics variables. More...

- Public Member Functions inherited from GRINS::SolidMechanicsAbstract
 SolidMechanicsAbstract (const GRINS::PhysicsName &physics_name, const GetPot &input)

virtual ~SolidMechanicsAbstract ()

virtual void set_time_evolving_vars (libMesh::FEMSystem *system)
 Set which variables are time evolving. More...

- Public Member Functions inherited from GRINS::Physics
 Physics (const GRINS::PhysicsName &physics_name, const GetPot &input)

virtual ~Physics ()

virtual bool enabled_on_elem (const libMesh::Elem *elem)
 Find if current physics is active on supplied element. More...

void set_is_steady (bool is_steady)
 Sets whether this physics is to be solved with a steady solver or not. More...

bool is_steady () const
 Returns whether or not this physics is being solved with a steady solver. More...

virtual void auxiliary_init (MultiphysicsSystem &system)
 Any auxillary initialization a Physics class may need. More...

virtual void register_postprocessing_vars (const GetPot &input, PostProcessedQuantities< libMesh::Real > &postprocessing)
 Register name of postprocessed quantity with PostProcessedQuantities. More...

virtual void element_time_derivative (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
 Time dependent part(s) of physics for element interiors. More...

virtual void side_time_derivative (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
 Time dependent part(s) of physics for boundaries of elements on the domain boundary. More...

virtual void nonlocal_time_derivative (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
 Time dependent part(s) of physics for scalar variables. More...

virtual void element_constraint (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
 Constraint part(s) of physics for element interiors. More...

virtual void side_constraint (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
 Constraint part(s) of physics for boundaries of elements on the domain boundary. More...

virtual void nonlocal_constraint (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
 Constraint part(s) of physics for scalar variables. More...

virtual void mass_residual (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
 Mass matrix part(s) for element interiors. All boundary terms lie within the time_derivative part. More...

virtual void nonlocal_mass_residual (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
 Mass matrix part(s) for scalar variables. More...

void init_ics (libMesh::FEMSystem *system, libMesh::CompositeFunction< libMesh::Number > &all_ics)

virtual void compute_element_time_derivative_cache (const AssemblyContext &context, CachedValues &cache)

virtual void compute_side_time_derivative_cache (const AssemblyContext &context, CachedValues &cache)

virtual void compute_nonlocal_time_derivative_cache (const AssemblyContext &context, CachedValues &cache)

virtual void compute_element_constraint_cache (const AssemblyContext &context, CachedValues &cache)

virtual void compute_side_constraint_cache (const AssemblyContext &context, CachedValues &cache)

virtual void compute_nonlocal_constraint_cache (const AssemblyContext &context, CachedValues &cache)

virtual void compute_damping_residual_cache (const AssemblyContext &context, CachedValues &cache)

virtual void compute_mass_residual_cache (const AssemblyContext &context, CachedValues &cache)

virtual void compute_nonlocal_mass_residual_cache (const AssemblyContext &context, CachedValues &cache)

virtual void compute_postprocessed_quantity (unsigned int quantity_index, const AssemblyContext &context, const libMesh::Point &point, libMesh::Real &value)

ICHandlingBase * get_ic_handler ()

- Public Member Functions inherited from GRINS::ParameterUser
 ParameterUser (const std::string &user_name)

virtual ~ParameterUser ()

virtual void set_parameter (libMesh::Number &param_variable, const GetPot &input, const std::string &param_name, libMesh::Number param_default)
 Each subclass can simultaneously read a parameter value from. More...

virtual void set_parameter (libMesh::ParsedFunction< libMesh::Number, libMesh::Gradient > &func, const GetPot &input, const std::string &func_param_name, const std::string &param_default)
 Each subclass can simultaneously read a parsed function from. More...

virtual void set_parameter (libMesh::ParsedFEMFunction< libMesh::Number > &func, const GetPot &input, const std::string &func_param_name, const std::string &param_default)
 Each subclass can simultaneously read a parsed function from. More...

virtual void move_parameter (const libMesh::Number &old_parameter, libMesh::Number &new_parameter)
 When cloning an object, we need to update parameter pointers. More...

virtual void move_parameter (const libMesh::ParsedFunction< libMesh::Number, libMesh::Gradient > &old_func, libMesh::ParsedFunction< libMesh::Number, libMesh::Gradient > &new_func)
 When cloning an object, we need to update parameter pointers. More...

virtual void move_parameter (const libMesh::ParsedFEMFunction< libMesh::Number > &old_func, libMesh::ParsedFEMFunction< libMesh::Number > &new_func)
 When cloning an object, we need to update parameter pointers. More...

virtual void register_parameter (const std::string &param_name, libMesh::ParameterMultiAccessor< libMesh::Number > &param_pointer) const
 Each subclass will register its copy of an independent. More...


Protected Attributes

libMesh::Real _lambda_factor

libMesh::Real _mu_factor

- Protected Attributes inherited from GRINS::ElasticMembraneBase< StressStrainLaw >
StressStrainLaw _stress_strain_law

bool _is_compressible

libMesh::Real _h0
 Membrane thickness. More...

libMesh::Real _rho
 Membrane density. More...

VariableIndex _lambda_sq_var
 Variable index for lambda_sq variable. More...

- Protected Attributes inherited from GRINS::SolidMechanicsAbstract
DisplacementFEVariables _disp_vars

- Protected Attributes inherited from GRINS::Physics
const PhysicsName _physics_name
 Name of the physics object. Used for reading physics specific inputs. More...

GRINS::ICHandlingBase * _ic_handler

std::set< libMesh::subdomain_id_type > _enabled_subdomains
 Subdomains on which the current Physics class is enabled. More...


Private Member Functions

 ElasticMembraneRayleighDamping ()


Additional Inherited Members

- Static Public Member Functions inherited from GRINS::Physics
static void set_is_axisymmetric (bool is_axisymmetric)
 Set whether we should treat the problem as axisymmetric. More...

static bool is_axisymmetric ()

- Static Public Attributes inherited from GRINS::ParameterUser
static std::string zero_vector_function = std::string("{0}")
 A parseable function string with LIBMESH_DIM components, all 0. More...

- Protected Types inherited from GRINS::SolidMechanicsAbstract
typedef const libMesh::DenseSubVector< libMesh::Number > &(libMesh::DiffContext::* VarFuncType) (unsigned int) const

typedef void(libMesh::FEMContext::* InteriorFuncType) (unsigned int, unsigned int, libMesh::Real &) const

typedef libMesh::Real(libMesh::DiffContext::* VarDerivType) () const

- Protected Member Functions inherited from GRINS::ElasticMembraneBase< StressStrainLaw >
void mass_residual_impl (bool compute_jacobian, AssemblyContext &context, InteriorFuncType interior_solution, VarDerivType get_solution_deriv, libMesh::Real mu=1.0)
 Implementation of mass_residual. More...

void compute_metric_tensors (unsigned int qp, const libMesh::FEBase &elem, const AssemblyContext &context, const libMesh::Gradient &grad_u, const libMesh::Gradient &grad_v, const libMesh::Gradient &grad_w, libMesh::TensorValue< libMesh::Real > &a_cov, libMesh::TensorValue< libMesh::Real > &a_contra, libMesh::TensorValue< libMesh::Real > &A_cov, libMesh::TensorValue< libMesh::Real > &A_contra, libMesh::Real &lambda_sq)

- Protected Member Functions inherited from GRINS::ElasticMembraneAbstract
const libMesh::FEGenericBase< libMesh::Real > * get_fe (const AssemblyContext &context)

- Protected Member Functions inherited from GRINS::Physics
libMesh::UniquePtr< libMesh::FEGenericBase< libMesh::Real > > build_new_fe (const libMesh::Elem *elem, const libMesh::FEGenericBase< libMesh::Real > *fe, const libMesh::Point p)

void parse_enabled_subdomains (const GetPot &input, const std::string &physics_name)

- Static Protected Attributes inherited from GRINS::Physics
static bool _is_steady = false
 Caches whether or not the solver that's being used is steady or not. More...

static bool _is_axisymmetric = false
 Caches whether we are solving an axisymmetric problem or not. More...


Detailed Description

template<typename StressStrainLaw>
class GRINS::ElasticMembraneRayleighDamping< StressStrainLaw >

Definition at line 33 of file elastic_membrane_rayleigh_damping.h.

Constructor & Destructor Documentation

template<typename StressStrainLaw >
GRINS::ElasticMembraneRayleighDamping< StressStrainLaw >::ElasticMembraneRayleighDamping ( const PhysicsName &  physics_name,
const GetPot &  input,
bool  is_compressible
)

Definition at line 40 of file elastic_membrane_rayleigh_damping.C.

References GRINS::PhysicsNaming::elastic_membrane(), GRINS::PhysicsNaming::elastic_membrane_rayleigh_damping(), and GRINS::Physics::parse_enabled_subdomains().

43  : ElasticMembraneBase<StressStrainLaw>(physics_name,input,is_compressible),
44  _lambda_factor(input("Physics/"+PhysicsNaming::elastic_membrane_rayleigh_damping()+"/lambda_factor",0.0)),
45  _mu_factor(input("Physics/"+PhysicsNaming::elastic_membrane_rayleigh_damping()+"/mu_factor",0.0))
46  {
47  if( !input.have_variable("Physics/"+PhysicsNaming::elastic_membrane_rayleigh_damping()+"/lambda_factor") )
48  libmesh_error_msg("ERROR: Couldn't find Physics/"+PhysicsNaming::elastic_membrane_rayleigh_damping()+"/lambda_factor in input!");
49
50  if( !input.have_variable("Physics/"+PhysicsNaming::elastic_membrane_rayleigh_damping()+"/mu_factor") )
51  libmesh_error_msg("ERROR: Couldn't find Physics/"+PhysicsNaming::elastic_membrane_rayleigh_damping()+"/mu_factor in input!");
52
53  // If the user specified enabled subdomains in this Physics section,
54  // that's an error; we're slave to ElasticMembrane.
55  if( input.have_variable("Physics/"+PhysicsNaming::elastic_membrane_rayleigh_damping()+"/enabled_subdomains" ) )
56  libmesh_error_msg("ERROR: Cannot specify subdomains for "
57  +PhysicsNaming::elastic_membrane_rayleigh_damping()
58  +"! Must specify subdomains through "
59  +PhysicsNaming::elastic_membrane()+".");
60
61  this->parse_enabled_subdomains(input,PhysicsNaming::elastic_membrane());
62  }
GRINS::PhysicsNaming::elastic_membrane
static PhysicsName elastic_membrane()
Definition: physics_naming.h:164
GRINS::Physics::parse_enabled_subdomains
void parse_enabled_subdomains(const GetPot &input, const std::string &physics_name)
Definition: physics.C:64
GRINS::PhysicsNaming::elastic_membrane_rayleigh_damping
static PhysicsName elastic_membrane_rayleigh_damping()
Definition: physics_naming.h:173
template<typename StressStrainLaw >
virtual GRINS::ElasticMembraneRayleighDamping< StressStrainLaw >::~ElasticMembraneRayleighDamping ( )
inlinevirtual

Definition at line 41 of file elastic_membrane_rayleigh_damping.h.

41 {};
template<typename StressStrainLaw >
GRINS::ElasticMembraneRayleighDamping< StressStrainLaw >::ElasticMembraneRayleighDamping ( )
private

Member Function Documentation

template<typename StressStrainLaw >
void GRINS::ElasticMembraneRayleighDamping< StressStrainLaw >::damping_residual ( bool  compute_jacobian,
AssemblyContext &  context,
CachedValues &  cache
)
virtual

Time dependent part(s) of physics for element interiors.

Reimplemented from GRINS::Physics.

Definition at line 65 of file elastic_membrane_rayleigh_damping.C.

68  {
69  // First do the mass part
70  this->mass_residual_impl(compute_jacobian,
71  context,
72  &libMesh::FEMContext::interior_rate,
73  &libMesh::DiffContext::get_elem_solution_rate_derivative,
74  _mu_factor);
75
76  // Now do the stiffness part
77  const unsigned int n_u_dofs = context.get_dof_indices(this->_disp_vars.u()).size();
78
79  const std::vector<libMesh::Real> &JxW =
80  this->get_fe(context)->get_JxW();
81
82  // Residuals that we're populating
83  libMesh::DenseSubVector<libMesh::Number> &Fu = context.get_elem_residual(this->_disp_vars.u());
84  libMesh::DenseSubVector<libMesh::Number> &Fv = context.get_elem_residual(this->_disp_vars.v());
85  libMesh::DenseSubVector<libMesh::Number> &Fw = context.get_elem_residual(this->_disp_vars.w());
86
87  libMesh::DenseSubMatrix<libMesh::Number>& Kuu = context.get_elem_jacobian(this->_disp_vars.u(),this->_disp_vars.u());
88  libMesh::DenseSubMatrix<libMesh::Number>& Kuv = context.get_elem_jacobian(this->_disp_vars.u(),this->_disp_vars.v());
89  libMesh::DenseSubMatrix<libMesh::Number>& Kuw = context.get_elem_jacobian(this->_disp_vars.u(),this->_disp_vars.w());
90
91  libMesh::DenseSubMatrix<libMesh::Number>& Kvu = context.get_elem_jacobian(this->_disp_vars.v(),this->_disp_vars.u());
92  libMesh::DenseSubMatrix<libMesh::Number>& Kvv = context.get_elem_jacobian(this->_disp_vars.v(),this->_disp_vars.v());
93  libMesh::DenseSubMatrix<libMesh::Number>& Kvw = context.get_elem_jacobian(this->_disp_vars.v(),this->_disp_vars.w());
94
95  libMesh::DenseSubMatrix<libMesh::Number>& Kwu = context.get_elem_jacobian(this->_disp_vars.w(),this->_disp_vars.u());
96  libMesh::DenseSubMatrix<libMesh::Number>& Kwv = context.get_elem_jacobian(this->_disp_vars.w(),this->_disp_vars.v());
97  libMesh::DenseSubMatrix<libMesh::Number>& Kww = context.get_elem_jacobian(this->_disp_vars.w(),this->_disp_vars.w());
98
99  unsigned int n_qpoints = context.get_element_qrule().n_points();
100
101  // All shape function gradients are w.r.t. master element coordinates
102  const std::vector<std::vector<libMesh::Real> >& dphi_dxi =
103  this->get_fe(context)->get_dphidxi();
104
105  const std::vector<std::vector<libMesh::Real> >& dphi_deta =
106  this->get_fe(context)->get_dphideta();
107
108  const libMesh::DenseSubVector<libMesh::Number>& u_coeffs = context.get_elem_solution( this->_disp_vars.u() );
109  const libMesh::DenseSubVector<libMesh::Number>& v_coeffs = context.get_elem_solution( this->_disp_vars.v() );
110  const libMesh::DenseSubVector<libMesh::Number>& w_coeffs = context.get_elem_solution( this->_disp_vars.w() );
111
112  const libMesh::DenseSubVector<libMesh::Number>& dudt_coeffs = context.get_elem_solution_rate( this->_disp_vars.u() );
113  const libMesh::DenseSubVector<libMesh::Number>& dvdt_coeffs = context.get_elem_solution_rate( this->_disp_vars.v() );
114  const libMesh::DenseSubVector<libMesh::Number>& dwdt_coeffs = context.get_elem_solution_rate( this->_disp_vars.w() );
115
116  // Need these to build up the covariant and contravariant metric tensors
117  const std::vector<libMesh::RealGradient>& dxdxi = this->get_fe(context)->get_dxyzdxi();
118  const std::vector<libMesh::RealGradient>& dxdeta = this->get_fe(context)->get_dxyzdeta();
119
120  const unsigned int dim = 2; // The manifold dimension is always 2 for this physics
121
122  for (unsigned int qp=0; qp != n_qpoints; qp++)
123  {
124  // Gradients are w.r.t. master element coordinates
125  libMesh::Gradient grad_u, grad_v, grad_w;
126  libMesh::Gradient dgradu_dt, dgradv_dt, dgradw_dt;
127
128  for( unsigned int d = 0; d < n_u_dofs; d++ )
129  {
130  libMesh::RealGradient u_gradphi( dphi_dxi[d][qp], dphi_deta[d][qp] );
131  grad_u += u_coeffs(d)*u_gradphi;
132  grad_v += v_coeffs(d)*u_gradphi;
133  grad_w += w_coeffs(d)*u_gradphi;
134
135  dgradu_dt += dudt_coeffs(d)*u_gradphi;
136  dgradv_dt += dvdt_coeffs(d)*u_gradphi;
137  dgradw_dt += dwdt_coeffs(d)*u_gradphi;
138  }
139
140  libMesh::RealGradient grad_x( dxdxi[qp](0), dxdeta[qp](0) );
141  libMesh::RealGradient grad_y( dxdxi[qp](1), dxdeta[qp](1) );
142  libMesh::RealGradient grad_z( dxdxi[qp](2), dxdeta[qp](2) );
143
144
145  libMesh::TensorValue<libMesh::Real> a_cov, a_contra, A_cov, A_contra;
146  libMesh::Real lambda_sq = 0;
147
148  this->compute_metric_tensors( qp, *(this->get_fe(context)), context,
149  grad_u, grad_v, grad_w,
150  a_cov, a_contra, A_cov, A_contra,
151  lambda_sq );
152
153  // Compute stress and elasticity tensors
154  libMesh::TensorValue<libMesh::Real> tau;
155  ElasticityTensor C;
156  this->_stress_strain_law.compute_stress_and_elasticity(dim,a_contra,a_cov,A_contra,A_cov,tau,C);
157
158  libMesh::Real jac = JxW[qp];
159
160  for (unsigned int i=0; i != n_u_dofs; i++)
161  {
162  libMesh::RealGradient u_gradphi( dphi_dxi[i][qp], dphi_deta[i][qp] );
163
164  for( unsigned int alpha = 0; alpha < dim; alpha++ )
165  {
166  for( unsigned int beta = 0; beta < dim; beta++ )
167  {
168  const libMesh::Real common_factor = _lambda_factor*0.5*this->_h0*jac;
169  const libMesh::Real factor = common_factor*tau(alpha,beta);
170
171  libMesh::Real u_diagterm = dgradu_dt(beta)*u_gradphi(alpha) + dgradu_dt(alpha)*u_gradphi(beta);
172  libMesh::Real v_diagterm = dgradv_dt(beta)*u_gradphi(alpha) + dgradv_dt(alpha)*u_gradphi(beta);
173  libMesh::Real w_diagterm = dgradw_dt(beta)*u_gradphi(alpha) + dgradw_dt(alpha)*u_gradphi(beta);
174
175  Fu(i) += factor*u_diagterm;
176  Fv(i) += factor*v_diagterm;
177  Fw(i) += factor*w_diagterm;
178
179  for( unsigned int lambda = 0; lambda < dim; lambda++ )
180  {
181  for( unsigned int mu = 0; mu < dim; mu++ )
182  {
183  const libMesh::Real C1 = common_factor*C(alpha,beta,lambda,mu);
184
185  const libMesh::Real gamma_u = 0.5*( dgradu_dt(lambda)*(grad_x(mu)+grad_u(mu)) +
186  (grad_x(lambda)+grad_u(lambda))*dgradu_dt(mu) );
187
188  const libMesh::Real gamma_v = 0.5*( dgradv_dt(lambda)*(grad_y(mu)+grad_v(mu)) +
189  (grad_y(lambda)+grad_v(lambda))*dgradv_dt(mu) );
190
191  const libMesh::Real gamma_w = 0.5*( dgradw_dt(lambda)*(grad_z(mu)+grad_w(mu)) +
192  (grad_z(lambda)+grad_w(lambda))*dgradw_dt(mu) );
193
194  const libMesh::Real x_term = C1*( (grad_x(beta)+grad_u(beta))*u_gradphi(alpha) +
195  (grad_x(alpha)+grad_u(alpha))*u_gradphi(beta) );
196
197  const libMesh::Real y_term = C1*( (grad_y(beta)+grad_v(beta))*u_gradphi(alpha) +
198  (grad_y(alpha)+grad_v(alpha))*u_gradphi(beta) );
199
200  const libMesh::Real z_term = C1*( (grad_z(beta)+grad_w(beta))*u_gradphi(alpha) +
201  (grad_z(alpha)+grad_w(alpha))*u_gradphi(beta) );
202
203  const libMesh::Real gamma_sum = gamma_u + gamma_v + gamma_w;
204
205  Fu(i) += x_term*gamma_sum;
206
207  Fv(i) += y_term*gamma_sum;
208
209  Fw(i) += z_term*gamma_sum;
210  }
211  }
212  }
213  }
214  }
215
216  if( compute_jacobian )
217  {
218  for (unsigned int i=0; i != n_u_dofs; i++)
219  {
220  libMesh::RealGradient u_gradphi_i( dphi_dxi[i][qp], dphi_deta[i][qp] );
221
222  for (unsigned int j=0; j != n_u_dofs; j++)
223  {
224  libMesh::RealGradient u_gradphi_j( dphi_dxi[j][qp], dphi_deta[j][qp] );
225
226  for( unsigned int alpha = 0; alpha < dim; alpha++ )
227  {
228  for( unsigned int beta = 0; beta < dim; beta++ )
229  {
230  const libMesh::Real common_factor = _lambda_factor*0.5*this->_h0*jac;
231
232  libMesh::Real u_diagterm = dgradu_dt(beta)*u_gradphi_i(alpha) + dgradu_dt(alpha)*u_gradphi_i(beta);
233  libMesh::Real v_diagterm = dgradv_dt(beta)*u_gradphi_i(alpha) + dgradv_dt(alpha)*u_gradphi_i(beta);
234  libMesh::Real w_diagterm = dgradw_dt(beta)*u_gradphi_i(alpha) + dgradw_dt(alpha)*u_gradphi_i(beta);
235
236  const libMesh::Real factor = common_factor*tau(alpha,beta);
237
238  const libMesh::Real ddiagterm = u_gradphi_j(beta)*u_gradphi_i(alpha) + u_gradphi_j(alpha)*u_gradphi_i(beta);
239
240  Kuu(i,j) += factor*ddiagterm*context.get_elem_solution_rate_derivative();
241  Kvv(i,j) += factor*ddiagterm*context.get_elem_solution_rate_derivative();
242  Kww(i,j) += factor*ddiagterm*context.get_elem_solution_rate_derivative();
243
244  for( unsigned int lambda = 0; lambda < dim; lambda++ )
245  {
246  for( unsigned int mu = 0; mu < dim; mu++ )
247  {
248  const libMesh::Real dgamma_du = 0.5*( u_gradphi_j(lambda)*(grad_x(mu)+grad_u(mu)) +
249  (grad_x(lambda)+grad_u(lambda))*u_gradphi_j(mu) );
250
251  const libMesh::Real dgamma_dv = 0.5*( u_gradphi_j(lambda)*(grad_y(mu)+grad_v(mu)) +
252  (grad_y(lambda)+grad_v(lambda))*u_gradphi_j(mu) );
253
254  const libMesh::Real dgamma_dw = 0.5*( u_gradphi_j(lambda)*(grad_z(mu)+grad_w(mu)) +
255  (grad_z(lambda)+grad_w(lambda))*u_gradphi_j(mu) );
256
257  const libMesh::Real C1 = common_factor*C(alpha,beta,lambda,mu);
258
259  const libMesh::Real dfactor_du = C1*dgamma_du*context.get_elem_solution_derivative();
260  const libMesh::Real dfactor_dv = C1*dgamma_dv*context.get_elem_solution_derivative();
261  const libMesh::Real dfactor_dw = C1*dgamma_dw*context.get_elem_solution_derivative();
262
263  Kuu(i,j) += u_diagterm*dfactor_du;
264  Kuv(i,j) += u_diagterm*dfactor_dv;
265  Kuw(i,j) += u_diagterm*dfactor_dw;
266
267  Kvu(i,j) += v_diagterm*dfactor_du;
268  Kvv(i,j) += v_diagterm*dfactor_dv;
269  Kvw(i,j) += v_diagterm*dfactor_dw;
270
271  Kwu(i,j) += w_diagterm*dfactor_du;
272  Kwv(i,j) += w_diagterm*dfactor_dv;
273  Kww(i,j) += w_diagterm*dfactor_dw;
274
275  const libMesh::Real gamma_u = 0.5*( dgradu_dt(lambda)*(grad_x(mu)+grad_u(mu)) +
276  (grad_x(lambda)+grad_u(lambda))*dgradu_dt(mu) );
277
278  const libMesh::Real gamma_v = 0.5*( dgradv_dt(lambda)*(grad_y(mu)+grad_v(mu)) +
279  (grad_y(lambda)+grad_v(lambda))*dgradv_dt(mu) );
280
281  const libMesh::Real gamma_w = 0.5*( dgradw_dt(lambda)*(grad_z(mu)+grad_w(mu)) +
282  (grad_z(lambda)+grad_w(lambda))*dgradw_dt(mu) );
283
284  const libMesh::Real x_term = C1*( (grad_x(beta)+grad_u(beta))*u_gradphi_i(alpha) +
285  (grad_x(alpha)+grad_u(alpha))*u_gradphi_i(beta) );
286
287  const libMesh::Real y_term = C1*( (grad_y(beta)+grad_v(beta))*u_gradphi_i(alpha) +
288  (grad_y(alpha)+grad_v(alpha))*u_gradphi_i(beta) );
289
290  const libMesh::Real z_term = C1*( (grad_z(beta)+grad_w(beta))*u_gradphi_i(alpha) +
291  (grad_z(alpha)+grad_w(alpha))*u_gradphi_i(beta) );
292
293  const libMesh::Real gamma_sum = gamma_u + gamma_v + gamma_w;
294
295  // Here, we're missing derivatives of C(alpha,beta,lambda,mu) w.r.t. strain
296  // Nonzero for hyperelasticity models
297  const libMesh::Real dxterm_du = C1*( u_gradphi_j(beta)*u_gradphi_i(alpha)
298  + u_gradphi_j(alpha)*u_gradphi_i(beta) )*context.get_elem_solution_derivative();
299
300  const libMesh::Real dyterm_dv = dxterm_du;
301  const libMesh::Real dzterm_dw = dxterm_du;
302
303  Kuu(i,j) += gamma_sum*dxterm_du;
304
305  Kvv(i,j) += gamma_sum*dyterm_dv;
306
307  Kww(i,j) += gamma_sum*dzterm_dw;
308
309  const libMesh::Real dgamma_sum_du = 0.5*( u_gradphi_j(lambda)*(grad_x(mu)+grad_u(mu))*context.get_elem_solution_rate_derivative()
310  + dgradu_dt(lambda)*u_gradphi_j(mu)*context.get_elem_solution_derivative()
311  + u_gradphi_j(mu)*(grad_x(lambda)+grad_u(lambda))*context.get_elem_solution_rate_derivative()
312  + dgradu_dt(mu)*u_gradphi_j(lambda)*context.get_elem_solution_derivative() );
313
314  const libMesh::Real dgamma_sum_dv = 0.5*( u_gradphi_j(lambda)*(grad_y(mu)+grad_v(mu))*context.get_elem_solution_rate_derivative()
315  + dgradv_dt(lambda)*u_gradphi_j(mu)*context.get_elem_solution_derivative()
316  + u_gradphi_j(mu)*(grad_y(lambda)+grad_v(lambda))*context.get_elem_solution_rate_derivative()
317  + dgradv_dt(mu)*u_gradphi_j(lambda)*context.get_elem_solution_derivative() );
318
319  const libMesh::Real dgamma_sum_dw = 0.5*( u_gradphi_j(lambda)*(grad_z(mu)+grad_w(mu))*context.get_elem_solution_rate_derivative()
320  + dgradw_dt(lambda)*u_gradphi_j(mu)*context.get_elem_solution_derivative()
321  + u_gradphi_j(mu)*(grad_z(lambda)+grad_w(lambda))*context.get_elem_solution_rate_derivative()
322  + dgradw_dt(mu)*u_gradphi_j(lambda)*context.get_elem_solution_derivative() );
323
324  Kuu(i,j) += x_term*dgamma_sum_du;
325  Kuv(i,j) += x_term*dgamma_sum_dv;
326  Kuw(i,j) += x_term*dgamma_sum_dw;
327
328  Kvu(i,j) += y_term*dgamma_sum_du;
329  Kvv(i,j) += y_term*dgamma_sum_dv;
330  Kvw(i,j) += y_term*dgamma_sum_dw;
331
332  Kwu(i,j) += z_term*dgamma_sum_du;
333  Kwv(i,j) += z_term*dgamma_sum_dv;
334  Kww(i,j) += z_term*dgamma_sum_dw;
335  }
336  }
337  }
338  }
339  }
340  }
341  }
342
343  }
344  }
GRINS::ElasticMembraneBase::mass_residual_impl
void mass_residual_impl(bool compute_jacobian, AssemblyContext &context, InteriorFuncType interior_solution, VarDerivType get_solution_deriv, libMesh::Real mu=1.0)
Implementation of mass_residual.
Definition: elastic_membrane_base.C:76
GRINS::ElasticMembraneBase::compute_metric_tensors
void compute_metric_tensors(unsigned int qp, const libMesh::FEBase &elem, const AssemblyContext &context, const libMesh::Gradient &grad_u, const libMesh::Gradient &grad_v, const libMesh::Gradient &grad_w, libMesh::TensorValue< libMesh::Real > &a_cov, libMesh::TensorValue< libMesh::Real > &a_contra, libMesh::TensorValue< libMesh::Real > &A_cov, libMesh::TensorValue< libMesh::Real > &A_contra, libMesh::Real &lambda_sq)
Definition: elastic_membrane_base.C:133
GRINS::StressStrainLaw::compute_stress_and_elasticity
void compute_stress_and_elasticity(unsigned int dim, const libMesh::TensorValue< libMesh::Real > &g_contra, const libMesh::TensorValue< libMesh::Real > &g_cov, const libMesh::TensorValue< libMesh::Real > &G_contra, const libMesh::TensorValue< libMesh::Real > &G_cov, libMesh::TensorValue< libMesh::Real > &stress, ElasticityTensor &C)
Definition: stress_strain_law.h:87
GRINS::ElasticMembraneBase::_h0
libMesh::Real _h0
Membrane thickness.
Definition: elastic_membrane_base.h:73
GRINS::ElasticMembraneAbstract::get_fe
const libMesh::FEGenericBase< libMesh::Real > * get_fe(const AssemblyContext &context)
Definition: elastic_membrane_abstract.h:59

Member Data Documentation

template<typename StressStrainLaw >
libMesh::Real GRINS::ElasticMembraneRayleighDamping< StressStrainLaw >::_lambda_factor
protected

Definition at line 50 of file elastic_membrane_rayleigh_damping.h.

template<typename StressStrainLaw >
libMesh::Real GRINS::ElasticMembraneRayleighDamping< StressStrainLaw >::_mu_factor
protected

Definition at line 51 of file elastic_membrane_rayleigh_damping.h.

The documentation for this class was generated from the following files:
Generated on Thu Jun 2 2016 21:52:30 for GRINS-0.7.0 by  doxygen 1.8.10
