GRINS::ElasticMembrane< StressStrainLaw > Class Template Reference

#include <elastic_membrane.h>

Inheritance diagram for GRINS::ElasticMembrane< StressStrainLaw >:

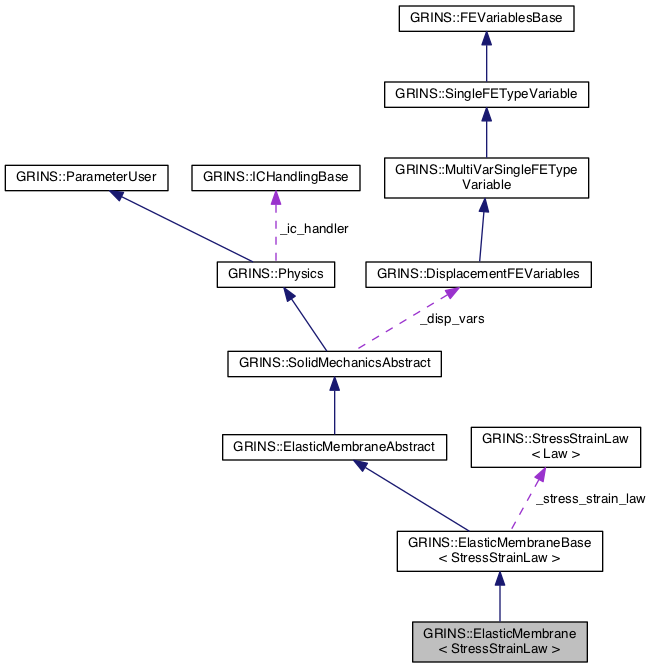

Collaboration diagram for GRINS::ElasticMembrane< StressStrainLaw >:

Public Member Functions
	ElasticMembrane (const GRINS::PhysicsName &physics_name, const GetPot &input, bool is_compressible)
virtual	~ElasticMembrane ()
virtual void	register_postprocessing_vars (const GetPot &input, PostProcessedQuantities< libMesh::Real > &postprocessing)
	Register postprocessing variables for ElasticMembrane. More...
virtual void	element_time_derivative (bool compute_jacobian, AssemblyContext &context, CachedValues &)
	Time dependent part(s) of physics for element interiors. More...
virtual void	element_constraint (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Constraint part(s) of physics for element interiors. More...
virtual void	mass_residual (bool compute_jacobian, AssemblyContext &context, CachedValues &)
	Mass matrix part(s) for element interiors. All boundary terms lie within the time_derivative part. More...
virtual void	compute_postprocessed_quantity (unsigned int quantity_index, const AssemblyContext &context, const libMesh::Point &point, libMesh::Real &value)
	Compute the registered postprocessed quantities. More...
Public Member Functions inherited from GRINS::ElasticMembraneBase< StressStrainLaw >
	ElasticMembraneBase (const GRINS::PhysicsName &physics_name, const GetPot &input, bool is_compressible)
virtual	~ElasticMembraneBase ()
virtual void	init_variables (libMesh::FEMSystem *system)
	Initialize variables for this physics. More...
Public Member Functions inherited from GRINS::ElasticMembraneAbstract
	ElasticMembraneAbstract (const GRINS::PhysicsName &physics_name, const GetPot &input)
virtual	~ElasticMembraneAbstract ()
virtual void	init_context (AssemblyContext &context)
	Initialize context for added physics variables. More...
Public Member Functions inherited from GRINS::SolidMechanicsAbstract
	SolidMechanicsAbstract (const GRINS::PhysicsName &physics_name, const GetPot &input)
virtual	~SolidMechanicsAbstract ()
virtual void	set_time_evolving_vars (libMesh::FEMSystem *system)
	Set which variables are time evolving. More...
Public Member Functions inherited from GRINS::Physics
	Physics (const GRINS::PhysicsName &physics_name, const GetPot &input)
virtual	~Physics ()
virtual bool	enabled_on_elem (const libMesh::Elem *elem)
	Find if current physics is active on supplied element. More...
void	set_is_steady (bool is_steady)
	Sets whether this physics is to be solved with a steady solver or not. More...
bool	is_steady () const
	Returns whether or not this physics is being solved with a steady solver. More...
virtual void	auxiliary_init (MultiphysicsSystem &system)
	Any auxillary initialization a Physics class may need. More...
virtual void	side_time_derivative (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Time dependent part(s) of physics for boundaries of elements on the domain boundary. More...
virtual void	nonlocal_time_derivative (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Time dependent part(s) of physics for scalar variables. More...
virtual void	side_constraint (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Constraint part(s) of physics for boundaries of elements on the domain boundary. More...
virtual void	nonlocal_constraint (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Constraint part(s) of physics for scalar variables. More...
virtual void	damping_residual (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Damping matrix part(s) for element interiors. All boundary terms lie within the time_derivative part. More...
virtual void	nonlocal_mass_residual (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Mass matrix part(s) for scalar variables. More...
void	init_ics (libMesh::FEMSystem *system, libMesh::CompositeFunction< libMesh::Number > &all_ics)
virtual void	compute_element_time_derivative_cache (const AssemblyContext &context, CachedValues &cache)
virtual void	compute_side_time_derivative_cache (const AssemblyContext &context, CachedValues &cache)
virtual void	compute_nonlocal_time_derivative_cache (const AssemblyContext &context, CachedValues &cache)
virtual void	compute_element_constraint_cache (const AssemblyContext &context, CachedValues &cache)
virtual void	compute_side_constraint_cache (const AssemblyContext &context, CachedValues &cache)
virtual void	compute_nonlocal_constraint_cache (const AssemblyContext &context, CachedValues &cache)
virtual void	compute_damping_residual_cache (const AssemblyContext &context, CachedValues &cache)
virtual void	compute_mass_residual_cache (const AssemblyContext &context, CachedValues &cache)
virtual void	compute_nonlocal_mass_residual_cache (const AssemblyContext &context, CachedValues &cache)
ICHandlingBase *	get_ic_handler ()
Public Member Functions inherited from GRINS::ParameterUser
	ParameterUser (const std::string &user_name)
virtual	~ParameterUser ()
virtual void	set_parameter (libMesh::Number &param_variable, const GetPot &input, const std::string &param_name, libMesh::Number param_default)
	Each subclass can simultaneously read a parameter value from. More...
virtual void	set_parameter (libMesh::ParsedFunction< libMesh::Number, libMesh::Gradient > &func, const GetPot &input, const std::string &func_param_name, const std::string &param_default)
	Each subclass can simultaneously read a parsed function from. More...
virtual void	set_parameter (libMesh::ParsedFEMFunction< libMesh::Number > &func, const GetPot &input, const std::string &func_param_name, const std::string &param_default)
	Each subclass can simultaneously read a parsed function from. More...
virtual void	move_parameter (const libMesh::Number &old_parameter, libMesh::Number &new_parameter)
	When cloning an object, we need to update parameter pointers. More...
virtual void	move_parameter (const libMesh::ParsedFunction< libMesh::Number, libMesh::Gradient > &old_func, libMesh::ParsedFunction< libMesh::Number, libMesh::Gradient > &new_func)
	When cloning an object, we need to update parameter pointers. More...
virtual void	move_parameter (const libMesh::ParsedFEMFunction< libMesh::Number > &old_func, libMesh::ParsedFEMFunction< libMesh::Number > &new_func)
	When cloning an object, we need to update parameter pointers. More...
virtual void	register_parameter (const std::string &param_name, libMesh::ParameterMultiAccessor< libMesh::Number > &param_pointer) const
	Each subclass will register its copy of an independent. More...

Private Member Functions
	ElasticMembrane ()

Private Attributes
std::vector< unsigned int >	_stress_indices
	Index from registering this quantity for postprocessing. Each component will have it's own index. More...
unsigned int	_stress_zz_index
	Index from registering sigma_zz for postprocessing. Mainly for sanity checking. More...
std::vector< unsigned int >	_strain_indices
	Index from registering this quantity for postprocessing. Each component will have it's own index. More...

Additional Inherited Members
Static Public Member Functions inherited from GRINS::Physics
static void	set_is_axisymmetric (bool is_axisymmetric)
	Set whether we should treat the problem as axisymmetric. More...
static bool	is_axisymmetric ()
Static Public Attributes inherited from GRINS::ParameterUser
static std::string	zero_vector_function = std::string("{0}")
	A parseable function string with LIBMESH_DIM components, all 0. More...
Protected Types inherited from GRINS::SolidMechanicsAbstract
typedef const libMesh::DenseSubVector< libMesh::Number > &(libMesh::DiffContext::*	VarFuncType) (unsigned int) const
typedef void(libMesh::FEMContext::*	InteriorFuncType) (unsigned int, unsigned int, libMesh::Real &) const
typedef libMesh::Real(libMesh::DiffContext::*	VarDerivType) () const
Protected Member Functions inherited from GRINS::ElasticMembraneBase< StressStrainLaw >
void	mass_residual_impl (bool compute_jacobian, AssemblyContext &context, InteriorFuncType interior_solution, VarDerivType get_solution_deriv, libMesh::Real mu=1.0)
	Implementation of mass_residual. More...
void	compute_metric_tensors (unsigned int qp, const libMesh::FEBase &elem, const AssemblyContext &context, const libMesh::Gradient &grad_u, const libMesh::Gradient &grad_v, const libMesh::Gradient &grad_w, libMesh::TensorValue< libMesh::Real > &a_cov, libMesh::TensorValue< libMesh::Real > &a_contra, libMesh::TensorValue< libMesh::Real > &A_cov, libMesh::TensorValue< libMesh::Real > &A_contra, libMesh::Real &lambda_sq)
Protected Member Functions inherited from GRINS::ElasticMembraneAbstract
const libMesh::FEGenericBase< libMesh::Real > *	get_fe (const AssemblyContext &context)
Protected Member Functions inherited from GRINS::Physics
libMesh::UniquePtr< libMesh::FEGenericBase< libMesh::Real > >	build_new_fe (const libMesh::Elem *elem, const libMesh::FEGenericBase< libMesh::Real > *fe, const libMesh::Point p)
void	parse_enabled_subdomains (const GetPot &input, const std::string &physics_name)
Protected Attributes inherited from GRINS::ElasticMembraneBase< StressStrainLaw >
StressStrainLaw	_stress_strain_law
bool	_is_compressible
libMesh::Real	_h0
	Membrane thickness. More...
libMesh::Real	_rho
	Membrane density. More...
VariableIndex	_lambda_sq_var
	Variable index for lambda_sq variable. More...
Protected Attributes inherited from GRINS::SolidMechanicsAbstract
DisplacementFEVariables	_disp_vars
Protected Attributes inherited from GRINS::Physics
const PhysicsName	_physics_name
	Name of the physics object. Used for reading physics specific inputs. More...
GRINS::ICHandlingBase *	_ic_handler
std::set< libMesh::subdomain_id_type >	_enabled_subdomains
	Subdomains on which the current Physics class is enabled. More...
Static Protected Attributes inherited from GRINS::Physics
static bool	_is_steady = false
	Caches whether or not the solver that's being used is steady or not. More...
static bool	_is_axisymmetric = false
	Caches whether we are solving an axisymmetric problem or not. More...

Detailed Description

template<typename StressStrainLaw>
class GRINS::ElasticMembrane< StressStrainLaw >

Definition at line 34 of file elastic_membrane.h.

Constructor & Destructor Documentation

template<typename StressStrainLaw >

GRINS::ElasticMembrane< StressStrainLaw >::ElasticMembrane	(	const GRINS::PhysicsName &	physics_name,
		const GetPot &	input,
		bool	is_compressible
	)

Definition at line 46 of file elastic_membrane.C.

References GRINS::Physics::_ic_handler.

    : ElasticMembraneBase<StressStrainLaw>(physics_name,input,is_compressible)
  {
    this->_ic_handler = new GenericICHandler(physics_name, input);
  }

template<typename StressStrainLaw >

virtual GRINS::ElasticMembrane< StressStrainLaw >::~ElasticMembrane ( )

inlinevirtual

Definition at line 41 of file elastic_membrane.h.

{};

template<typename StressStrainLaw >

GRINS::ElasticMembrane< StressStrainLaw >::ElasticMembrane ( )

private

Member Function Documentation

template<typename StressStrainLaw >

void GRINS::ElasticMembrane< StressStrainLaw >::compute_postprocessed_quantity ( unsigned int  quantity_index, const AssemblyContext &  context, const libMesh::Point &  point, libMesh::Real &  value  )

virtual

Compute the registered postprocessed quantities.

Reimplemented from GRINS::Physics.

Definition at line 359 of file elastic_membrane.C.

References GRINS::Constants::two_pi.

  {
    bool is_stress = false;
    if( !_stress_indices.empty() )
      is_stress= ( _stress_indices[0] == quantity_index ||
                   _stress_indices[1] == quantity_index ||
                   _stress_indices[2] == quantity_index ||
                   _stress_indices[3] == quantity_index ||
                   _stress_indices[4] == quantity_index ||
                   _stress_indices[5] == quantity_index ||
                   _stress_indices[6] == quantity_index ||
                   _stress_zz_index == quantity_index   );

    bool is_strain = false;
    if( !_strain_indices.empty() )
      is_strain = ( _strain_indices[0] == quantity_index ||
                    _strain_indices[1] == quantity_index ||
                    _strain_indices[2] == quantity_index   );

    if( is_stress || is_strain )
      {
        const unsigned int n_u_dofs = context.get_dof_indices(this->_disp_vars.u()).size();

        const libMesh::DenseSubVector<libMesh::Number>& u_coeffs = context.get_elem_solution( this->_disp_vars.u() );
        const libMesh::DenseSubVector<libMesh::Number>& v_coeffs = context.get_elem_solution( this->_disp_vars.v() );
        const libMesh::DenseSubVector<libMesh::Number>& w_coeffs = context.get_elem_solution( this->_disp_vars.w() );

        // Build new FE for the current point. We need this to build tensors at point.
        libMesh::UniquePtr<libMesh::FEGenericBase<libMesh::Real> > fe_new =
          this->build_new_fe( &context.get_elem(), this->get_fe(context),
                              point );

        const std::vector<std::vector<libMesh::Real> >& dphi_dxi =
          fe_new->get_dphidxi();

        const std::vector<std::vector<libMesh::Real> >& dphi_deta =
          fe_new->get_dphideta();

        // Need these to build up the covariant and contravariant metric tensors
        const std::vector<libMesh::RealGradient>& dxdxi  = fe_new->get_dxyzdxi();
        const std::vector<libMesh::RealGradient>& dxdeta = fe_new->get_dxyzdeta();

        // Gradients are w.r.t. master element coordinates
        libMesh::Gradient grad_u, grad_v, grad_w;
        for( unsigned int d = 0; d < n_u_dofs; d++ )
          {
            libMesh::RealGradient u_gradphi( dphi_dxi[d][0], dphi_deta[d][0] );
            grad_u += u_coeffs(d)*u_gradphi;
            grad_v += v_coeffs(d)*u_gradphi;
            grad_w += w_coeffs(d)*u_gradphi;
          }

        libMesh::RealGradient grad_x( dxdxi[0](0), dxdeta[0](0) );
        libMesh::RealGradient grad_y( dxdxi[0](1), dxdeta[0](1) );
        libMesh::RealGradient grad_z( dxdxi[0](2), dxdeta[0](2) );

        libMesh::TensorValue<libMesh::Real> a_cov, a_contra, A_cov, A_contra;
        libMesh::Real lambda_sq = 0;

        // We're only computing one point at a time, so qp = 0 always
        this->compute_metric_tensors(0, *fe_new, context, grad_u, grad_v, grad_w,
                                     a_cov, a_contra, A_cov, A_contra, lambda_sq );

        // We have everything we need for strain now, so check if we are computing strain
        if( is_strain )
          {
            if( _strain_indices[0] == quantity_index )
              {
                value = 0.5*(A_cov(0,0) - a_cov(0,0));
              }
            else if( _strain_indices[1] == quantity_index )
              {
                value = 0.5*(A_cov(0,1) - a_cov(0,1));
              }
            else if( _strain_indices[2] == quantity_index )
              {
                value = 0.5*(A_cov(1,1) - a_cov(1,1));
              }
            else
              {
                //Wat?!
                libmesh_error();
              }
            return;
          }

        if( is_stress )
          {
            libMesh::Real det_a = a_cov(0,0)*a_cov(1,1) - a_cov(0,1)*a_cov(1,0);
            libMesh::Real det_A = A_cov(0,0)*A_cov(1,1) - A_cov(0,1)*A_cov(1,0);

            libMesh::Real I3 = lambda_sq*det_A/det_a;

            libMesh::TensorValue<libMesh::Real> tau;
            this->_stress_strain_law.compute_stress(2,a_contra,a_cov,A_contra,A_cov,tau);

            if( _stress_indices[0] == quantity_index )
              {
                // Need to convert to Cauchy stress
                value = tau(0,0)/std::sqrt(I3);
              }
            else if( _stress_indices[1] == quantity_index )
              {
                // Need to convert to Cauchy stress
                value = tau(0,1)/std::sqrt(I3);
              }
            else if( _stress_indices[2] == quantity_index )
              {
                // Need to convert to Cauchy stress
                value = tau(1,1)/std::sqrt(I3);
              }
            else if( _stress_indices[3] == quantity_index )
              {
                value = 0.5*(tau(0,0) + tau(1,1)) + std::sqrt(0.25*(tau(0,0)-tau(1,1))*(tau(0,0)-tau(1,1))
                                                              + tau(0,1)*tau(0,1) );
              }
            else if( _stress_indices[4] == quantity_index ||
                     _stress_indices[5] == quantity_index ||
                     _stress_indices[6] == quantity_index   )
              {
                if(this->_is_compressible)
                  {
                    tau(2,2) = this->_stress_strain_law.compute_33_stress( a_contra, a_cov, A_contra, A_cov );
                  }

                libMesh::Real stress_I1 = tau(0,0) + tau(1,1) + tau(2,2);
                libMesh::Real stress_I2 = 0.5*(stress_I1*stress_I1 - (tau(0,0)*tau(0,0) + tau(1,1)*tau(1,1)
                                                                      + tau(2,2)*tau(2,2) + tau(0,1)*tau(0,1)
                                                                      + tau(1,0)*tau(1,0)) );

                libMesh::Real stress_I3 = tau(2,2)*( tau(0,0)*tau(1,1) - tau(1,0)*tau(0,1) );

                /* Formulae for principal stresses from:
                   http://en.wikiversity.org/wiki/Principal_stresses */

                // I_2^2 - 3*I_2
                libMesh::Real C1 = (stress_I1*stress_I1 - 3*stress_I2);

                // 2*I_1^3 - 9*I_1*_I2 + 27*I_3
                libMesh::Real C2 = (2*stress_I1*stress_I1*stress_I1 - 9*stress_I1*stress_I2 + 27*stress_I3)/54;

                libMesh::Real theta = std::acos( C2/(2*std::sqrt(C1*C1*C1)) )/3.0;

                if( _stress_indices[4] == quantity_index )
                  {
                    value = (stress_I1 + 2.0*std::sqrt(C1)*std::cos(theta))/3.0;
                  }

                if( _stress_indices[5] == quantity_index )
                  {
                    value = (stress_I1 + 2.0*std::sqrt(C1)*std::cos(theta+Constants::two_pi/3.0))/3.0;
                  }

                if( _stress_indices[6] == quantity_index )
                  {
                    value = (stress_I1 + 2.0*std::sqrt(C1)*std::cos(theta+2.0*Constants::two_pi/3.0))/3.0;
                  }
              }
            else if( _stress_zz_index == quantity_index )
              {
                value = this->_stress_strain_law.compute_33_stress( a_contra, a_cov, A_contra, A_cov );
              }
            else
              {
                //Wat?!
                libmesh_error();
              }
          } // is_stress

      }
  }

template<typename StressStrainLaw >

void GRINS::ElasticMembrane< StressStrainLaw >::element_constraint ( bool  compute_jacobian, AssemblyContext &  context, CachedValues &  cache  )

virtual

Constraint part(s) of physics for element interiors.

Reimplemented from GRINS::Physics.

Definition at line 291 of file elastic_membrane.C.

  {
    // Only compute the constraint is tracking lambda_sq as an independent variable
    if( this->_is_compressible )
      {
        unsigned int n_qpoints = context.get_element_qrule().n_points();

        const unsigned int n_u_dofs = context.get_dof_indices(this->_disp_vars.u()).size();

        const std::vector<libMesh::Real> &JxW = context.get_element_fe(this->_lambda_sq_var)->get_JxW();

        libMesh::DenseSubVector<libMesh::Number>& Fl = context.get_elem_residual(this->_lambda_sq_var);

        const std::vector<std::vector<libMesh::Real> >& phi =
          context.get_element_fe(this->_lambda_sq_var)->get_phi();

        const unsigned int n_lambda_sq_dofs = context.get_dof_indices(this->_lambda_sq_var).size();

        const libMesh::DenseSubVector<libMesh::Number>& u_coeffs = context.get_elem_solution( this->_disp_vars.u() );
        const libMesh::DenseSubVector<libMesh::Number>& v_coeffs = context.get_elem_solution( this->_disp_vars.v() );
        const libMesh::DenseSubVector<libMesh::Number>& w_coeffs = context.get_elem_solution( this->_disp_vars.w() );

        // All shape function gradients are w.r.t. master element coordinates
        const std::vector<std::vector<libMesh::Real> >& dphi_dxi =
          this->get_fe(context)->get_dphidxi();

        const std::vector<std::vector<libMesh::Real> >& dphi_deta =
          this->get_fe(context)->get_dphideta();

        for (unsigned int qp=0; qp != n_qpoints; qp++)
          {
            libMesh::Real jac = JxW[qp];

            libMesh::Gradient grad_u, grad_v, grad_w;
            for( unsigned int d = 0; d < n_u_dofs; d++ )
              {
                libMesh::RealGradient u_gradphi( dphi_dxi[d][qp], dphi_deta[d][qp] );
                grad_u += u_coeffs(d)*u_gradphi;
                grad_v += v_coeffs(d)*u_gradphi;
                grad_w += w_coeffs(d)*u_gradphi;
              }

            libMesh::TensorValue<libMesh::Real> a_cov, a_contra, A_cov, A_contra;
            libMesh::Real lambda_sq = 0;

            this->compute_metric_tensors( qp, *(this->get_fe(context)), context,
                                          grad_u, grad_v, grad_w,
                                          a_cov, a_contra, A_cov, A_contra,
                                          lambda_sq );

            libMesh::Real stress_33 = this->_stress_strain_law.compute_33_stress( a_contra, a_cov, A_contra, A_cov );

            for (unsigned int i=0; i != n_lambda_sq_dofs; i++)
              {
                Fl(i) += stress_33*phi[i][qp]*jac;
              }

            if( compute_jacobian )
              {
                libmesh_not_implemented();
              }
          }
      } // is_compressible
  }

template<typename StressStrainLaw >

void GRINS::ElasticMembrane< StressStrainLaw >::element_time_derivative ( bool  compute_jacobian, AssemblyContext &  context, CachedValues &    )

virtual

Time dependent part(s) of physics for element interiors.

Reimplemented from GRINS::Physics.

Definition at line 116 of file elastic_membrane.C.

  {
    const unsigned int n_u_dofs = context.get_dof_indices(this->_disp_vars.u()).size();

    const std::vector<libMesh::Real> &JxW =
      this->get_fe(context)->get_JxW();

    // Residuals that we're populating
    libMesh::DenseSubVector<libMesh::Number> &Fu = context.get_elem_residual(this->_disp_vars.u());
    libMesh::DenseSubVector<libMesh::Number> &Fv = context.get_elem_residual(this->_disp_vars.v());
    libMesh::DenseSubVector<libMesh::Number> &Fw = context.get_elem_residual(this->_disp_vars.w());

    libMesh::DenseSubMatrix<libMesh::Number>& Kuu = context.get_elem_jacobian(this->_disp_vars.u(),this->_disp_vars.u());
    libMesh::DenseSubMatrix<libMesh::Number>& Kuv = context.get_elem_jacobian(this->_disp_vars.u(),this->_disp_vars.v());
    libMesh::DenseSubMatrix<libMesh::Number>& Kuw = context.get_elem_jacobian(this->_disp_vars.u(),this->_disp_vars.w());

    libMesh::DenseSubMatrix<libMesh::Number>& Kvu = context.get_elem_jacobian(this->_disp_vars.v(),this->_disp_vars.u());
    libMesh::DenseSubMatrix<libMesh::Number>& Kvv = context.get_elem_jacobian(this->_disp_vars.v(),this->_disp_vars.v());
    libMesh::DenseSubMatrix<libMesh::Number>& Kvw = context.get_elem_jacobian(this->_disp_vars.v(),this->_disp_vars.w());

    libMesh::DenseSubMatrix<libMesh::Number>& Kwu = context.get_elem_jacobian(this->_disp_vars.w(),this->_disp_vars.u());
    libMesh::DenseSubMatrix<libMesh::Number>& Kwv = context.get_elem_jacobian(this->_disp_vars.w(),this->_disp_vars.v());
    libMesh::DenseSubMatrix<libMesh::Number>& Kww = context.get_elem_jacobian(this->_disp_vars.w(),this->_disp_vars.w());

    unsigned int n_qpoints = context.get_element_qrule().n_points();

    // All shape function gradients are w.r.t. master element coordinates
    const std::vector<std::vector<libMesh::Real> >& dphi_dxi =
      this->get_fe(context)->get_dphidxi();

    const std::vector<std::vector<libMesh::Real> >& dphi_deta =
      this->get_fe(context)->get_dphideta();

    const libMesh::DenseSubVector<libMesh::Number>& u_coeffs = context.get_elem_solution( this->_disp_vars.u() );
    const libMesh::DenseSubVector<libMesh::Number>& v_coeffs = context.get_elem_solution( this->_disp_vars.v() );
    const libMesh::DenseSubVector<libMesh::Number>& w_coeffs = context.get_elem_solution( this->_disp_vars.w() );

    // Need these to build up the covariant and contravariant metric tensors
    const std::vector<libMesh::RealGradient>& dxdxi  = this->get_fe(context)->get_dxyzdxi();
    const std::vector<libMesh::RealGradient>& dxdeta = this->get_fe(context)->get_dxyzdeta();

    const unsigned int dim = 2; // The manifold dimension is always 2 for this physics

    for (unsigned int qp=0; qp != n_qpoints; qp++)
      {
        // Gradients are w.r.t. master element coordinates
        libMesh::Gradient grad_u, grad_v, grad_w;
        for( unsigned int d = 0; d < n_u_dofs; d++ )
          {
            libMesh::RealGradient u_gradphi( dphi_dxi[d][qp], dphi_deta[d][qp] );
            grad_u += u_coeffs(d)*u_gradphi;
            grad_v += v_coeffs(d)*u_gradphi;
            grad_w += w_coeffs(d)*u_gradphi;
          }

        libMesh::RealGradient grad_x( dxdxi[qp](0), dxdeta[qp](0) );
        libMesh::RealGradient grad_y( dxdxi[qp](1), dxdeta[qp](1) );
        libMesh::RealGradient grad_z( dxdxi[qp](2), dxdeta[qp](2) );


        libMesh::TensorValue<libMesh::Real> a_cov, a_contra, A_cov, A_contra;
        libMesh::Real lambda_sq = 0;

        this->compute_metric_tensors( qp, *(this->get_fe(context)), context,
                                      grad_u, grad_v, grad_w,
                                      a_cov, a_contra, A_cov, A_contra,
                                      lambda_sq );

        // Compute stress and elasticity tensors
        libMesh::TensorValue<libMesh::Real> tau;
        ElasticityTensor C;
        this->_stress_strain_law.compute_stress_and_elasticity(dim,a_contra,a_cov,A_contra,A_cov,tau,C);

        libMesh::Real jac = JxW[qp];

        for (unsigned int i=0; i != n_u_dofs; i++)
          {
            libMesh::RealGradient u_gradphi( dphi_dxi[i][qp], dphi_deta[i][qp] );

            for( unsigned int alpha = 0; alpha < dim; alpha++ )
              {
                for( unsigned int beta = 0; beta < dim; beta++ )
                  {
                    libMesh::Real factor = 0.5*tau(alpha,beta)*this->_h0*jac;

                    Fu(i) += factor*( (grad_x(beta) + grad_u(beta))*u_gradphi(alpha) +
                                      (grad_x(alpha) + grad_u(alpha))*u_gradphi(beta) );

                    Fv(i) += factor*( (grad_y(beta) + grad_v(beta))*u_gradphi(alpha) +
                                      (grad_y(alpha) + grad_v(alpha))*u_gradphi(beta) );

                    Fw(i) += factor*( (grad_z(beta) + grad_w(beta))*u_gradphi(alpha) +
                                      (grad_z(alpha) + grad_w(alpha))*u_gradphi(beta) );
                  }
              }
          }

        if( compute_jacobian )
          {
            for (unsigned int i=0; i != n_u_dofs; i++)
              {
                libMesh::RealGradient u_gradphi_i( dphi_dxi[i][qp], dphi_deta[i][qp] );

                for (unsigned int j=0; j != n_u_dofs; j++)
                  {
                    libMesh::RealGradient u_gradphi_j( dphi_dxi[j][qp], dphi_deta[j][qp] );

                    for( unsigned int alpha = 0; alpha < dim; alpha++ )
                      {
                        for( unsigned int beta = 0; beta < dim; beta++ )
                          {
                            const libMesh::Real diag_term = 0.5*this->_h0*jac*tau(alpha,beta)*context.get_elem_solution_derivative()*
                                                            ( u_gradphi_j(beta)*u_gradphi_i(alpha) +
                                                              u_gradphi_j(alpha)*u_gradphi_i(beta) );
                            Kuu(i,j) += diag_term;

                            Kvv(i,j) += diag_term;

                            Kww(i,j) += diag_term;

                            for( unsigned int lambda = 0; lambda < dim; lambda++ )
                              {
                                for( unsigned int mu = 0; mu < dim; mu++ )
                                  {
                                    const libMesh::Real dgamma_du = 0.5*( u_gradphi_j(lambda)*(grad_x(mu)+grad_u(mu)) +
                                                                          (grad_x(lambda)+grad_u(lambda))*u_gradphi_j(mu) );

                                    const libMesh::Real dgamma_dv = 0.5*( u_gradphi_j(lambda)*(grad_y(mu)+grad_v(mu)) +
                                                                          (grad_y(lambda)+grad_v(lambda))*u_gradphi_j(mu) );

                                    const libMesh::Real dgamma_dw = 0.5*( u_gradphi_j(lambda)*(grad_z(mu)+grad_w(mu)) +
                                                                          (grad_z(lambda)+grad_w(lambda))*u_gradphi_j(mu) );

                                    const libMesh::Real C1 = 0.5*this->_h0*jac*C(alpha,beta,lambda,mu)*context.get_elem_solution_derivative();

                                    const libMesh::Real x_term = C1*( (grad_x(beta)+grad_u(beta))*u_gradphi_i(alpha) +
                                                                      (grad_x(alpha)+grad_u(alpha))*u_gradphi_i(beta) );

                                    const libMesh::Real y_term = C1*( (grad_y(beta)+grad_v(beta))*u_gradphi_i(alpha) +
                                                                      (grad_y(alpha)+grad_v(alpha))*u_gradphi_i(beta) );

                                    const libMesh::Real z_term = C1*( (grad_z(beta)+grad_w(beta))*u_gradphi_i(alpha) +
                                                                      (grad_z(alpha)+grad_w(alpha))*u_gradphi_i(beta) );

                                    Kuu(i,j) += x_term*dgamma_du;

                                    Kuv(i,j) += x_term*dgamma_dv;

                                    Kuw(i,j) += x_term*dgamma_dw;

                                    Kvu(i,j) += y_term*dgamma_du;

                                    Kvv(i,j) += y_term*dgamma_dv;

                                    Kvw(i,j) += y_term*dgamma_dw;

                                    Kwu(i,j) += z_term*dgamma_du;

                                    Kwv(i,j) += z_term*dgamma_dv;

                                    Kww(i,j) += z_term*dgamma_dw;
                                  }
                              }
                          }
                      }
                  }
              }
          }

      }
  }

template<typename StressStrainLaw >

virtual void GRINS::ElasticMembrane< StressStrainLaw >::mass_residual ( bool  compute_jacobian, AssemblyContext &  context, CachedValues &  cache  )

inlinevirtual

Mass matrix part(s) for element interiors. All boundary terms lie within the time_derivative part.

Reimplemented from GRINS::Physics.

Definition at line 56 of file elastic_membrane.h.

References GRINS::ElasticMembraneBase< StressStrainLaw >::mass_residual_impl().

    { this->mass_residual_impl(compute_jacobian,
                               context,
                               &libMesh::FEMContext::interior_accel,
                               &libMesh::DiffContext::get_elem_solution_accel_derivative); }

template<typename StressStrainLaw >

void GRINS::ElasticMembrane< StressStrainLaw >::register_postprocessing_vars ( const GetPot &  input, PostProcessedQuantities< libMesh::Real > &  postprocessing  )

virtual

Register postprocessing variables for ElasticMembrane.

Reimplemented from GRINS::Physics.

Definition at line 54 of file elastic_membrane.C.

References GRINS::PhysicsNaming::elastic_membrane(), and GRINS::PostProcessedQuantities< NumericType >::register_quantity().

  {
    std::string section = "Physics/"+PhysicsNaming::elastic_membrane()+"/output_vars";

    if( input.have_variable(section) )
      {
        unsigned int n_vars = input.vector_variable_size(section);

        for( unsigned int v = 0; v < n_vars; v++ )
          {
            std::string name = input(section,"DIE!",v);

            if( name == std::string("stress") )
              {
                // sigma_xx, sigma_xy, sigma_yy, sigma_yx = sigma_xy
                // sigma_zz = 0 by assumption of this Physics
                _stress_indices.resize(7);

                this->_stress_indices[0] = postprocessing.register_quantity("stress_xx");

                this->_stress_indices[1] = postprocessing.register_quantity("stress_xy");

                this->_stress_indices[2] = postprocessing.register_quantity("stress_yy");

                this->_stress_indices[3] = postprocessing.register_quantity("sigma_max");

                this->_stress_indices[4] = postprocessing.register_quantity("sigma_1");

                this->_stress_indices[5] = postprocessing.register_quantity("sigma_2");

                this->_stress_indices[6] = postprocessing.register_quantity("sigma_3");
              }
            else if( name == std::string( "stress_zz" ) )
              {
                // This is mostly for sanity checking the plane stress condition
                this->_stress_zz_index = postprocessing.register_quantity("stress_zz");
              }
            else if( name == std::string("strain") )
              {
                // eps_xx, eps_xy, eps_yy, eps_yx = eps_xy
                _strain_indices.resize(3);

                this->_strain_indices[0] = postprocessing.register_quantity("strain_xx");

                this->_strain_indices[1] = postprocessing.register_quantity("strain_xy");

                this->_strain_indices[2] = postprocessing.register_quantity("strain_yy");
              }
            else
              {
                std::cerr << "Error: Invalue output_vars value for "+PhysicsNaming::elastic_membrane() << std::endl
                          << "       Found " << name << std::endl
                          << "       Acceptable values are: stress" << std::endl
                          << "                              strain" << std::endl;
                libmesh_error();
              }
          }
      }
  }

Member Data Documentation

template<typename StressStrainLaw >

std::vector<unsigned int> GRINS::ElasticMembrane< StressStrainLaw >::_strain_indices

private

Index from registering this quantity for postprocessing. Each component will have it's own index.

Definition at line 81 of file elastic_membrane.h.

template<typename StressStrainLaw >

std::vector<unsigned int> GRINS::ElasticMembrane< StressStrainLaw >::_stress_indices

private

Index from registering this quantity for postprocessing. Each component will have it's own index.

Definition at line 75 of file elastic_membrane.h.

template<typename StressStrainLaw >

unsigned int GRINS::ElasticMembrane< StressStrainLaw >::_stress_zz_index

private

Index from registering sigma_zz for postprocessing. Mainly for sanity checking.

Definition at line 78 of file elastic_membrane.h.

---

The documentation for this class was generated from the following files:

• src/physics/include/grins/elastic_membrane.h
• src/physics/src/elastic_membrane.C
