#include <elastic_cable_base.h>

Inheritance diagram for GRINS::ElasticCableBase< StressStrainLaw >:

[legend]

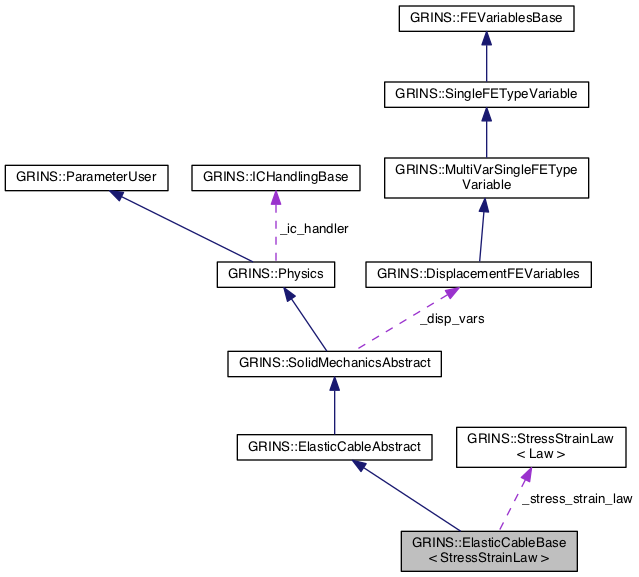

Collaboration diagram for GRINS::ElasticCableBase< StressStrainLaw >:

[legend]

Public Member Functions
	ElasticCableBase (const GRINS::PhysicsName &physics_name, const GetPot &input, bool is_compressible)

virtual	~ElasticCableBase ()

Public Member Functions inherited from GRINS::ElasticCableAbstract
	ElasticCableAbstract (const GRINS::PhysicsName &physics_name, const GetPot &input)

virtual	~ElasticCableAbstract ()

virtual void	init_context (AssemblyContext &context)
	Initialize context for added physics variables. More...

Public Member Functions inherited from GRINS::SolidMechanicsAbstract
	SolidMechanicsAbstract (const GRINS::PhysicsName &physics_name, const GetPot &input)

virtual	~SolidMechanicsAbstract ()

virtual void	init_variables (libMesh::FEMSystem *system)
	Initialize variables for this physics. More...

virtual void	set_time_evolving_vars (libMesh::FEMSystem *system)
	Set which variables are time evolving. More...

Public Member Functions inherited from GRINS::Physics
	Physics (const GRINS::PhysicsName &physics_name, const GetPot &input)

virtual	~Physics ()

virtual bool	enabled_on_elem (const libMesh::Elem *elem)
	Find if current physics is active on supplied element. More...

void	set_is_steady (bool is_steady)
	Sets whether this physics is to be solved with a steady solver or not. More...

bool	is_steady () const
	Returns whether or not this physics is being solved with a steady solver. More...

virtual void	auxiliary_init (MultiphysicsSystem &system)
	Any auxillary initialization a Physics class may need. More...

virtual void	register_postprocessing_vars (const GetPot &input, PostProcessedQuantities< libMesh::Real > &postprocessing)
	Register name of postprocessed quantity with PostProcessedQuantities. More...

virtual void	element_time_derivative (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Time dependent part(s) of physics for element interiors. More...

virtual void	side_time_derivative (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Time dependent part(s) of physics for boundaries of elements on the domain boundary. More...

virtual void	nonlocal_time_derivative (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Time dependent part(s) of physics for scalar variables. More...

virtual void	element_constraint (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Constraint part(s) of physics for element interiors. More...

virtual void	side_constraint (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Constraint part(s) of physics for boundaries of elements on the domain boundary. More...

virtual void	nonlocal_constraint (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Constraint part(s) of physics for scalar variables. More...

virtual void	damping_residual (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Damping matrix part(s) for element interiors. All boundary terms lie within the time_derivative part. More...

virtual void	mass_residual (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Mass matrix part(s) for element interiors. All boundary terms lie within the time_derivative part. More...

virtual void	nonlocal_mass_residual (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Mass matrix part(s) for scalar variables. More...

void	init_ics (libMesh::FEMSystem *system, libMesh::CompositeFunction< libMesh::Number > &all_ics)

virtual void	compute_element_time_derivative_cache (const AssemblyContext &context, CachedValues &cache)

virtual void	compute_side_time_derivative_cache (const AssemblyContext &context, CachedValues &cache)

virtual void	compute_nonlocal_time_derivative_cache (const AssemblyContext &context, CachedValues &cache)

virtual void	compute_element_constraint_cache (const AssemblyContext &context, CachedValues &cache)

virtual void	compute_side_constraint_cache (const AssemblyContext &context, CachedValues &cache)

virtual void	compute_nonlocal_constraint_cache (const AssemblyContext &context, CachedValues &cache)

virtual void	compute_damping_residual_cache (const AssemblyContext &context, CachedValues &cache)

virtual void	compute_mass_residual_cache (const AssemblyContext &context, CachedValues &cache)

virtual void	compute_nonlocal_mass_residual_cache (const AssemblyContext &context, CachedValues &cache)

virtual void	compute_postprocessed_quantity (unsigned int quantity_index, const AssemblyContext &context, const libMesh::Point &point, libMesh::Real &value)

ICHandlingBase *	get_ic_handler ()

Public Member Functions inherited from GRINS::ParameterUser
	ParameterUser (const std::string &user_name)

virtual	~ParameterUser ()

virtual void	set_parameter (libMesh::Number &param_variable, const GetPot &input, const std::string &param_name, libMesh::Number param_default)
	Each subclass can simultaneously read a parameter value from. More...

virtual void	set_parameter (libMesh::ParsedFunction< libMesh::Number, libMesh::Gradient > &func, const GetPot &input, const std::string &func_param_name, const std::string &param_default)
	Each subclass can simultaneously read a parsed function from. More...

virtual void	set_parameter (libMesh::ParsedFEMFunction< libMesh::Number > &func, const GetPot &input, const std::string &func_param_name, const std::string &param_default)
	Each subclass can simultaneously read a parsed function from. More...

virtual void	move_parameter (const libMesh::Number &old_parameter, libMesh::Number &new_parameter)
	When cloning an object, we need to update parameter pointers. More...

virtual void	move_parameter (const libMesh::ParsedFunction< libMesh::Number, libMesh::Gradient > &old_func, libMesh::ParsedFunction< libMesh::Number, libMesh::Gradient > &new_func)
	When cloning an object, we need to update parameter pointers. More...

virtual void	move_parameter (const libMesh::ParsedFEMFunction< libMesh::Number > &old_func, libMesh::ParsedFEMFunction< libMesh::Number > &new_func)
	When cloning an object, we need to update parameter pointers. More...

virtual void	register_parameter (const std::string &param_name, libMesh::ParameterMultiAccessor< libMesh::Number > &param_pointer) const
	Each subclass will register its copy of an independent. More...

Protected Member Functions
void	mass_residual_impl (bool compute_jacobian, AssemblyContext &context, InteriorFuncType interior_solution, VarDerivType get_solution_deriv, libMesh::Real mu=1.0)
	Implementation of mass_residual. More...

void	compute_metric_tensors (unsigned int qp, const libMesh::FEBase &elem, const AssemblyContext &context, const libMesh::Gradient &grad_u, const libMesh::Gradient &grad_v, const libMesh::Gradient &grad_w, libMesh::TensorValue< libMesh::Real > &a_cov, libMesh::TensorValue< libMesh::Real > &a_contra, libMesh::TensorValue< libMesh::Real > &A_cov, libMesh::TensorValue< libMesh::Real > &A_contra, libMesh::Real &lambda_sq)

Protected Member Functions inherited from GRINS::ElasticCableAbstract
const libMesh::FEGenericBase< libMesh::Real > *	get_fe (const AssemblyContext &context)

Protected Member Functions inherited from GRINS::Physics
libMesh::UniquePtr< libMesh::FEGenericBase< libMesh::Real > >	build_new_fe (const libMesh::Elem elem, const libMesh::FEGenericBase< libMesh::Real > fe, const libMesh::Point p)

void	parse_enabled_subdomains (const GetPot &input, const std::string &physics_name)

Protected Attributes
StressStrainLaw	_stress_strain_law

bool	_is_compressible

Protected Attributes inherited from GRINS::ElasticCableAbstract
libMesh::Real	_A
	Cross-sectional area of the cable. More...

libMesh::Real	_rho
	Cable density. More...

Protected Attributes inherited from GRINS::SolidMechanicsAbstract
DisplacementFEVariables	_disp_vars

Protected Attributes inherited from GRINS::Physics
const PhysicsName	_physics_name
	Name of the physics object. Used for reading physics specific inputs. More...

GRINS::ICHandlingBase *	_ic_handler

std::set< libMesh::subdomain_id_type >	_enabled_subdomains
	Subdomains on which the current Physics class is enabled. More...

Private Member Functions
	ElasticCableBase ()

Additional Inherited Members
Static Public Member Functions inherited from GRINS::Physics
static void	set_is_axisymmetric (bool is_axisymmetric)
	Set whether we should treat the problem as axisymmetric. More...

static bool	is_axisymmetric ()

Static Public Attributes inherited from GRINS::ParameterUser
static std::string	zero_vector_function = std::string("{0}")
	A parseable function string with LIBMESH_DIM components, all 0. More...

Protected Types inherited from GRINS::SolidMechanicsAbstract
typedef const libMesh::DenseSubVector< libMesh::Number > &(libMesh::DiffContext::*	VarFuncType) (unsigned int) const

typedef void(libMesh::FEMContext::*	InteriorFuncType) (unsigned int, unsigned int, libMesh::Real &) const

typedef libMesh::Real(libMesh::DiffContext::*	VarDerivType) () const

Static Protected Attributes inherited from GRINS::Physics
static bool	_is_steady = false
	Caches whether or not the solver that's being used is steady or not. More...

static bool	_is_axisymmetric = false
	Caches whether we are solving an axisymmetric problem or not. More...

Detailed Description

template<typename StressStrainLaw>
class GRINS::ElasticCableBase< StressStrainLaw >

Definition at line 34 of file elastic_cable_base.h.

Constructor & Destructor Documentation

template<typename StressStrainLaw >

GRINS::ElasticCableBase< StressStrainLaw >::ElasticCableBase	(	const GRINS::PhysicsName &	physics_name,
		const GetPot &	input,
		bool	is_compressible
	)

Definition at line 40 of file elastic_cable_base.C.

     : ElasticCableAbstract(physics_name,input),
       _stress_strain_law(input,MaterialsParsing::material_name(input,PhysicsNaming::elastic_cable())),
       _is_compressible(is_compressible)
   {}

template<typename StressStrainLaw >

virtual GRINS::ElasticCableBase< StressStrainLaw >::~ElasticCableBase ( )

inlinevirtual

Definition at line 42 of file elastic_cable_base.h.

42 {};

template<typename StressStrainLaw >

GRINS::ElasticCableBase< StressStrainLaw >::ElasticCableBase ( )

private

Member Function Documentation

template<typename StressStrainLaw >

void GRINS::ElasticCableBase< StressStrainLaw >::compute_metric_tensors	(	unsigned int	qp,
		const libMesh::FEBase &	elem,
		const AssemblyContext &	context,
		const libMesh::Gradient &	grad_u,
		const libMesh::Gradient &	grad_v,
		const libMesh::Gradient &	grad_w,
		libMesh::TensorValue< libMesh::Real > &	a_cov,
		libMesh::TensorValue< libMesh::Real > &	a_contra,
		libMesh::TensorValue< libMesh::Real > &	A_cov,
		libMesh::TensorValue< libMesh::Real > &	A_contra,
		libMesh::Real &	lambda_sq
	)

protected

Definition at line 107 of file elastic_cable_base.C.

   {
     const std::vector<libMesh::RealGradient>& dxdxi  = elem.get_dxyzdxi();

     const std::vector<libMesh::Real>& dxidx  = elem.get_dxidx();
     const std::vector<libMesh::Real>& dxidy  = elem.get_dxidy();
     const std::vector<libMesh::Real>& dxidz  = elem.get_dxidz();

     libMesh::RealGradient dxi( dxidx[qp], dxidy[qp], dxidz[qp] );

     libMesh::RealGradient dudxi( grad_u(0), grad_v(0), grad_w(0) );

     // Covariant metric tensor of reference configuration
     a_cov.zero();
     a_cov(0,0) = dxdxi[qp]*dxdxi[qp];
     a_cov(1,1)    = 1.0;
     a_cov(2,2)    = 1.0;

     // Covariant metric tensor of current configuration
     A_cov.zero();
     A_cov(0,0) = (dxdxi[qp] + dudxi)*(dxdxi[qp] + dudxi);

     // Contravariant metric tensor of reference configuration
     a_contra.zero();
     a_contra(0,0) = 1/a_cov(0,0);
     a_contra(1,1) = 1.0;
     a_contra(2,2) = 1.0;

     // Contravariant metric tensor in current configuration is A_cov^{-1}
     A_contra.zero();
     A_contra(0,0) =  1/A_cov(0,0);

     // If the material is compressible, then lambda_sq is an independent variable
     if( _is_compressible )
       {
         libmesh_not_implemented();
         //lambda_sq = context.interior_value(this->_lambda_sq_var, qp);
       }
     else
       {
         // If the material is incompressible, lambda^2 is known
         lambda_sq = a_cov(0,0)/A_cov(0,0);//det_a/det_A;
       }

     //Update the covariant and contravariant tensors of current configuration
     A_cov(1,1)    = lambda_sq;
     A_cov(2,2)    = lambda_sq;
     A_contra(1,1) = 1.0/lambda_sq;
     A_contra(2,2) = 1.0/lambda_sq;
   }

template<typename StressStrainLaw >

void GRINS::ElasticCableBase< StressStrainLaw >::mass_residual_impl	(	bool	compute_jacobian,
		AssemblyContext &	context,
		InteriorFuncType	interior_solution,
		VarDerivType	get_solution_deriv,
		libMesh::Real	mu = `1.0`
	)

protected

Implementation of mass_residual.

The mu argument is needed to support Rayleigh Damping.

Definition at line 49 of file elastic_cable_base.C.

Referenced by GRINS::ElasticCable< StressStrainLaw >::mass_residual().

   {
     const unsigned int n_u_dofs = context.get_dof_indices(this->_disp_vars.u()).size();

     const std::vector<libMesh::Real> &JxW =
       this->get_fe(context)->get_JxW();

     const std::vector<std::vector<libMesh::Real> >& u_phi =
       this->get_fe(context)->get_phi();

     // Residuals that we're populating
     libMesh::DenseSubVector<libMesh::Number> &Fu = context.get_elem_residual(this->_disp_vars.u());
     libMesh::DenseSubVector<libMesh::Number> &Fv = context.get_elem_residual(this->_disp_vars.v());
     libMesh::DenseSubVector<libMesh::Number> &Fw = context.get_elem_residual(this->_disp_vars.w());

     libMesh::DenseSubMatrix<libMesh::Number>& Kuu = context.get_elem_jacobian(this->_disp_vars.u(),this->_disp_vars.u());
     libMesh::DenseSubMatrix<libMesh::Number>& Kvv = context.get_elem_jacobian(this->_disp_vars.v(),this->_disp_vars.v());
     libMesh::DenseSubMatrix<libMesh::Number>& Kww = context.get_elem_jacobian(this->_disp_vars.w(),this->_disp_vars.w());

     unsigned int n_qpoints = context.get_element_qrule().n_points();

     for (unsigned int qp=0; qp != n_qpoints; qp++)
       {
         libMesh::Real jac = JxW[qp];

         libMesh::Real u_ddot, v_ddot, w_ddot;
         (context.*interior_solution)( this->_disp_vars.u(), qp, u_ddot );
         (context.*interior_solution)( this->_disp_vars.v(), qp, v_ddot );
         (context.*interior_solution)( this->_disp_vars.w(), qp, w_ddot );

         for (unsigned int i=0; i != n_u_dofs; i++)
           {
             libMesh::Real value = this->_rho*this->_A*u_phi[i][qp]*jac*mu;
             Fu(i) += value*u_ddot;
             Fv(i) += value*v_ddot;
             Fw(i) += value*w_ddot;

             if( compute_jacobian )
               {
                 for (unsigned int j=0; j != n_u_dofs; j++)
                   {
                     libMesh::Real jac_term = mu*this->_rho*this->_A*u_phi[i][qp]*u_phi[j][qp]*jac;
                     jac_term *= (context.*get_solution_deriv)();

                     Kuu(i,j) += jac_term;
                     Kvv(i,j) += jac_term;
                     Kww(i,j) += jac_term;
                   }
               }
           }
       }
   }

Member Data Documentation

template<typename StressStrainLaw >

bool GRINS::ElasticCableBase< StressStrainLaw >::_is_compressible

protected

Definition at line 68 of file elastic_cable_base.h.

template<typename StressStrainLaw >

StressStrainLaw GRINS::ElasticCableBase< StressStrainLaw >::_stress_strain_law

protected

Definition at line 66 of file elastic_cable_base.h.

The documentation for this class was generated from the following files:

src/physics/include/grins/elastic_cable_base.h
src/physics/src/elastic_cable_base.C

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Additional Inherited Members

Detailed Description

template<typename StressStrainLaw> class GRINS::ElasticCableBase< StressStrainLaw >

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<typename StressStrainLaw>
class GRINS::ElasticCableBase< StressStrainLaw >
