#include <catalytic_wall_neumann_bc_factory_base.h>

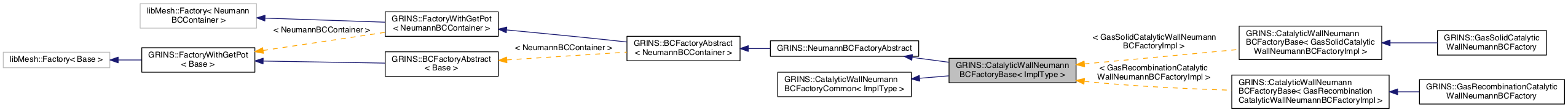

Inheritance diagram for GRINS::CatalyticWallNeumannBCFactoryBase< ImplType >:

[legend]

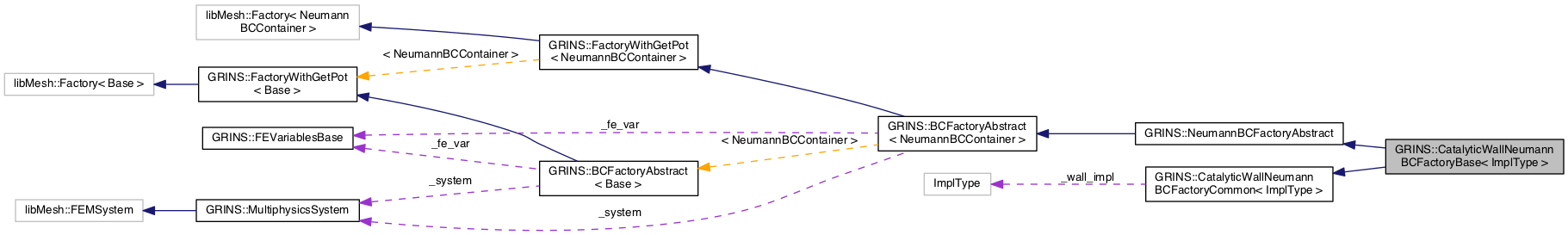

Collaboration diagram for GRINS::CatalyticWallNeumannBCFactoryBase< ImplType >:

[legend]

Public Member Functions
	CatalyticWallNeumannBCFactoryBase (const std::string &bc_type_name)

	~CatalyticWallNeumannBCFactoryBase ()

Public Member Functions inherited from GRINS::NeumannBCFactoryAbstract
	NeumannBCFactoryAbstract (const std::string &bc_type_name)

	~NeumannBCFactoryAbstract ()

virtual libMesh::UniquePtr< NeumannBCContainer >	create ()
	Creates NeumannBCContainer for this Factory object. More...

Public Member Functions inherited from GRINS::BCFactoryAbstract< NeumannBCContainer >
	BCFactoryAbstract (const std::string &bc_type_name)

	~BCFactoryAbstract ()

Public Member Functions inherited from GRINS::FactoryWithGetPot< NeumannBCContainer >
	FactoryWithGetPot (const std::string &name)

	~FactoryWithGetPot ()

Public Member Functions inherited from GRINS::CatalyticWallNeumannBCFactoryCommon< ImplType >
	CatalyticWallNeumannBCFactoryCommon ()

	~CatalyticWallNeumannBCFactoryCommon ()

Protected Member Functions
virtual SharedPtr< NeumannBCAbstract >	build_neumann_func (const GetPot &input, MultiphysicsSystem &system, const FEVariablesBase &fe_var, const std::string &section)
	Builds the NeumannBCAbstract object for Neumann boundary conditions. More...

std::string	parse_reaction (const GetPot &input, const std::string &section) const
	Parse the reaction. More...

std::string	parse_thermochem_model (const GetPot &input, const std::string &material) const

libMesh::Real	parse_thermo_pressure (const GetPot &input, const std::string &material) const

SharedPtr< CatalycityBase >	build_catalycity (const GetPot &input, const std::string &section) const

Protected Member Functions inherited from GRINS::NeumannBCFactoryAbstract
void	check_for_flux (const GetPot &input, const std::string &section, const std::vector< std::string > &var_names)
	Checks that the flux variable has been set. More...

Protected Member Functions inherited from GRINS::BCFactoryAbstract< NeumannBCContainer >
void	check_for_multiple_expressions (const GetPot &input, const std::string &section, const std::string &var_name) const
	Ensure that there is only one expression for the [Section/var_name] variable. More...

void	build_var_indices (const MultiphysicsSystem &system, const std::vector< std::string > &var_names, std::vector< VariableIndex > &var_indices) const

virtual void	check_state () const
	Helper function to reduce code duplication. More...

virtual void	reset_state ()
	Helper function to redue code duplication. More...

Protected Member Functions inherited from GRINS::CatalyticWallNeumannBCFactoryCommon< ImplType >
SharedPtr< NeumannBCAbstract >	build_catalytic_wall_common (const GetPot &input, const FEVariablesBase &fe_var, const std::string &material, const std::string &reaction, SharedPtr< CatalycityBase > &gamma_ptr, libMesh::Real p0, std::string &thermochem_lib)

void	extract_species_vars (const FEVariablesBase &fe_var, std::vector< VariableIndex > &species_vars) const

void	extract_material (const FEVariablesBase &fe_var, std::string &material) const

VariableIndex	extract_temp_var () const

Additional Inherited Members
Static Public Member Functions inherited from GRINS::BCFactoryAbstract< NeumannBCContainer >
static void	set_system (MultiphysicsSystem &system)

static void	set_bc_ids (const std::set< BoundaryID > &bc_ids)
	Boundary id for the current boundary condition section. More...

static void	set_fe_var (const FEVariablesBase &fe_var)
	Active variable for the current boundary condition. More...

static void	set_section (const std::string &section)
	Sets the current section of the input file. More...

static bool	have_bc_type (const std::string &bc_type)

Static Public Member Functions inherited from GRINS::FactoryWithGetPot< NeumannBCContainer >
static void	set_getpot (const GetPot &input)

Protected Attributes inherited from GRINS::NeumannBCFactoryAbstract
bool	_is_homogeneous
	Track if this is a homogeneous Neumann boundary condition. More...

Protected Attributes inherited from GRINS::CatalyticWallNeumannBCFactoryCommon< ImplType >
ImplType	_wall_impl

Static Protected Attributes inherited from GRINS::BCFactoryAbstract< NeumannBCContainer >
static MultiphysicsSystem *	_system
	We store only a raw pointer here because we can't make a copy. More...

static const std::set< BoundaryID > *	_bc_ids
	BoundaryID for constructing a particular boundary condition. More...

static const FEVariablesBase *	_fe_var
	The FEVariablesBase class associated with the boundary condition being built. More...

static std::string	_section

Static Protected Attributes inherited from GRINS::FactoryWithGetPot< NeumannBCContainer >
static const GetPot *	_input
	We store only a raw pointer here because we can't make a copy. More...

Detailed Description

template<typename ImplType>
class GRINS::CatalyticWallNeumannBCFactoryBase< ImplType >

Definition at line 36 of file catalytic_wall_neumann_bc_factory_base.h.

Constructor & Destructor Documentation

template<typename ImplType>

GRINS::CatalyticWallNeumannBCFactoryBase< ImplType >::CatalyticWallNeumannBCFactoryBase ( const std::string & bc_type_name )

inline

Definition at line 41 of file catalytic_wall_neumann_bc_factory_base.h.

       : NeumannBCFactoryAbstract(bc_type_name),
         CatalyticWallNeumannBCFactoryCommon<ImplType>()
     {}

template<typename ImplType>

GRINS::CatalyticWallNeumannBCFactoryBase< ImplType >::~CatalyticWallNeumannBCFactoryBase ( )

inline

Definition at line 46 of file catalytic_wall_neumann_bc_factory_base.h.

46 {};

Member Function Documentation

template<typename ImplType >

SharedPtr< CatalycityBase > GRINS::CatalyticWallNeumannBCFactoryBase< ImplType >::build_catalycity	(	const GetPot &	input,
		const std::string &	section
	)		const

protected

Definition at line 103 of file catalytic_wall_neumann_bc_factory_base.C.

References GRINS::FactoryWithGetPot< CatalycityBase >::set_getpot(), and GRINS::CatalycityFactoryAbstract::set_section().

   {
     CatalycityFactoryAbstract::set_getpot(input);
     CatalycityFactoryAbstract::set_section(section);

     std::string catalycity_input_str = section+"/catalycity_type";
     if( !input.have_variable(catalycity_input_str) )
       libmesh_error_msg("ERROR: Could not find input variable "+catalycity_input_str+" !\n");

     std::string catalycity_type = input(catalycity_input_str, "none");

     libMesh::UniquePtr<CatalycityBase> catalycity_ptr = CatalycityFactoryAbstract::build(catalycity_type);

     // We need to return a SharedPtr
     return SharedPtr<CatalycityBase>( catalycity_ptr.release() );
   }

template<typename ImplType >

SharedPtr< NeumannBCAbstract > GRINS::CatalyticWallNeumannBCFactoryBase< ImplType >::build_neumann_func	(	const GetPot &	input,
		MultiphysicsSystem &	system,
		const FEVariablesBase &	fe_var,
		const std::string &	section
	)

protectedvirtual

Builds the NeumannBCAbstract object for Neumann boundary conditions.

Subclasses should override this function to build the NeumannBCAbstract object that corresponds to the variables passed in var_names. The FEVariableBase object corresponds to the variable associated with this boundary condition, e.g. Velocity. The section arguments corresponds to the section to parse for the flux in the input file, e.g. input(section+"/"+flux). Note that for Variables with more than one component, the flux input should be a vector the size of the var_names object, even if one of the components is zero.

Todo:: We're assuming constant thermodynamic pressure

Implements GRINS::NeumannBCFactoryAbstract.

Definition at line 37 of file catalytic_wall_neumann_bc_factory_base.C.

   {
     std::string reaction = this->parse_reaction(input,section);

     // Parse and construct the corresponding catalycity
     SharedPtr<CatalycityBase> gamma_ptr = this->build_catalycity( input, section );

     std::string material;
     this->extract_material( fe_var, material );

     // Parse thermodynamic pressure
     libMesh::Real p0 = this->parse_thermo_pressure(input,material);

     std::string thermochem_lib = this->parse_thermochem_model( input, material );

     return this->build_catalytic_wall_common(input,fe_var,material,reaction,gamma_ptr,p0,thermochem_lib);
   }

template<typename ImplType >

std::string GRINS::CatalyticWallNeumannBCFactoryBase< ImplType >::parse_reaction	(	const GetPot &	input,
		const std::string &	section
	)		const

protected

Parse the reaction.

Definition at line 60 of file catalytic_wall_neumann_bc_factory_base.C.

   {
     std::string reaction_input_str = section+"/catalytic_reaction";

     // First make sure the input reaction is there
     if(!input.have_variable(reaction_input_str))
       libmesh_error_msg("ERROR: Could not find input for "+reaction_input_str+" !\n");

     // Make sure there's only one
     if( input.vector_variable_size(reaction_input_str) != 1 )
       libmesh_error_msg("ERROR: Can only specify one catalytic_reaction!\n");

     return input( reaction_input_str, std::string("DIE!") );
   }

template<typename ImplType >

libMesh::Real GRINS::CatalyticWallNeumannBCFactoryBase< ImplType >::parse_thermo_pressure	(	const GetPot &	input,
		const std::string &	material
	)		const

protected

Definition at line 77 of file catalytic_wall_neumann_bc_factory_base.C.

   {
     std::string thermo_press_input_str =
       "Materials/"+material+"/ThermodynamicPressure/value";

     if( !input.have_variable(thermo_press_input_str) )
       libmesh_error_msg("ERROR: Could not find variable "+thermo_press_input_str+"!");

     return input(thermo_press_input_str, std::numeric_limits<libMesh::Real>::max() );
   }

template<typename ImplType >

std::string GRINS::CatalyticWallNeumannBCFactoryBase< ImplType >::parse_thermochem_model	(	const GetPot &	input,
		const std::string &	material
	)		const

protected

Definition at line 90 of file catalytic_wall_neumann_bc_factory_base.C.

   {
     std::string thermochem_input_str = "Materials/"+material+"/GasMixture/thermochemistry_library";

     if( !input.have_variable(thermochem_input_str) )
       libmesh_error_msg("ERROR: Could not find input option "+thermochem_input_str+" !");

     return input(thermochem_input_str, std::string("DIE!") );
   }

The documentation for this class was generated from the following files:

src/boundary_conditions/include/grins/catalytic_wall_neumann_bc_factory_base.h
src/boundary_conditions/src/catalytic_wall_neumann_bc_factory_base.C
