GRINS::CatalyticWallNeumannBCFactoryCommon< ImplType > Class Template Reference

Factory helper class for building catalytic wall Neumann boundary conditions. More...

#include <catalytic_wall_neumann_bc_factory_common.h>

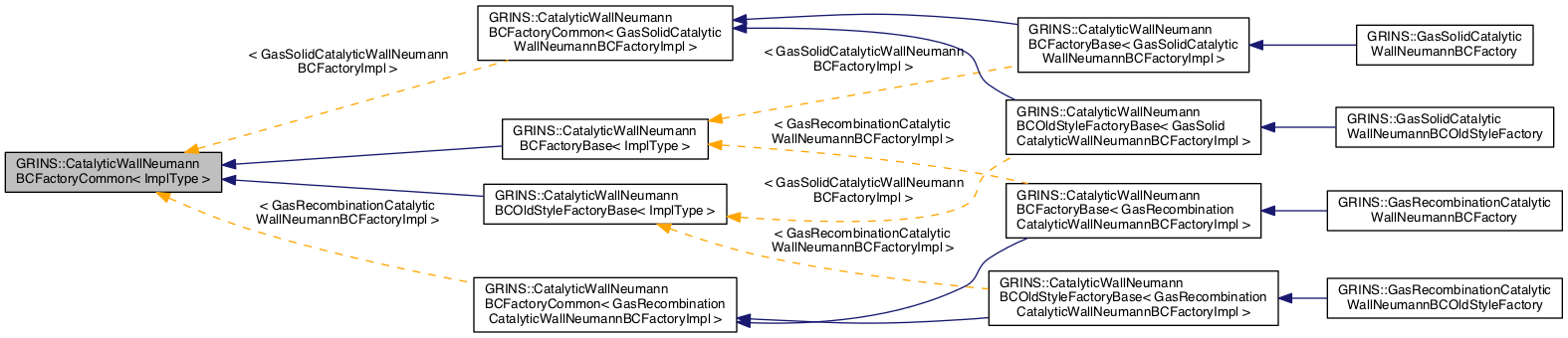

Inheritance diagram for GRINS::CatalyticWallNeumannBCFactoryCommon< ImplType >:

Collaboration diagram for GRINS::CatalyticWallNeumannBCFactoryCommon< ImplType >:

Public Member Functions
	CatalyticWallNeumannBCFactoryCommon ()
	~CatalyticWallNeumannBCFactoryCommon ()

Protected Member Functions
SharedPtr< NeumannBCAbstract >	build_catalytic_wall_common (const GetPot &input, const FEVariablesBase &fe_var, const std::string &material, const std::string &reaction, SharedPtr< CatalycityBase > &gamma_ptr, libMesh::Real p0, std::string &thermochem_lib)
void	extract_species_vars (const FEVariablesBase &fe_var, std::vector< VariableIndex > &species_vars) const
void	extract_material (const FEVariablesBase &fe_var, std::string &material) const
VariableIndex	extract_temp_var () const

Protected Attributes
ImplType	_wall_impl

Detailed Description

template<typename ImplType>
class GRINS::CatalyticWallNeumannBCFactoryCommon< ImplType >

Factory helper class for building catalytic wall Neumann boundary conditions.

Note for catalytic walls, we're currently assuming that both SpeciesMassFractions and Temperature FEVariables are in the system.

Definition at line 45 of file catalytic_wall_neumann_bc_factory_common.h.

Constructor & Destructor Documentation

template<typename ImplType>

GRINS::CatalyticWallNeumannBCFactoryCommon< ImplType >::CatalyticWallNeumannBCFactoryCommon ( )

inline

Definition at line 49 of file catalytic_wall_neumann_bc_factory_common.h.

{};

template<typename ImplType>

GRINS::CatalyticWallNeumannBCFactoryCommon< ImplType >::~CatalyticWallNeumannBCFactoryCommon ( )

inline

Definition at line 51 of file catalytic_wall_neumann_bc_factory_common.h.

{};

Member Function Documentation

template<typename ImpType >

SharedPtr< NeumannBCAbstract > GRINS::CatalyticWallNeumannBCFactoryCommon< ImpType >::build_catalytic_wall_common ( const GetPot &  input, const FEVariablesBase &  fe_var, const std::string &  material, const std::string &  reaction, SharedPtr< CatalycityBase > &  gamma_ptr, libMesh::Real  p0, std::string &  thermochem_lib  )

protected

Definition at line 44 of file catalytic_wall_neumann_bc_factory_common.C.

References GRINS::FEVariablesBase::active_var_names().

  {
    // Extract species variables and material
    std::vector<VariableIndex> species_vars;
    this->extract_species_vars( fe_var, species_vars );

    libmesh_assert_equal_to( fe_var.active_var_names().size(), species_vars.size() );

    // Extract Temperature variable index.
    VariableIndex T_var = this->extract_temp_var();

    return _wall_impl.build_catalytic_wall(input,reaction,gamma_ptr,species_vars,
                                           material,T_var,p0,thermochem_lib);
  }

template<typename ImpType >

void GRINS::CatalyticWallNeumannBCFactoryCommon< ImpType >::extract_material ( const FEVariablesBase &  fe_var, std::string &  material  ) const

protected

Definition at line 73 of file catalytic_wall_neumann_bc_factory_common.C.

References GRINS::SpeciesMassFractionsFEVariables::material().

  {
    const SpeciesMassFractionsFEVariables& species_fe_var =
      libMesh::cast_ref<const SpeciesMassFractionsFEVariables&>(fe_var);

    material = species_fe_var.material();
  }

template<typename ImpType >

void GRINS::CatalyticWallNeumannBCFactoryCommon< ImpType >::extract_species_vars ( const FEVariablesBase &  fe_var, std::vector< VariableIndex > &  species_vars  ) const

protected

Definition at line 67 of file catalytic_wall_neumann_bc_factory_common.C.

References GRINS::FEVariablesBase::var_indices().

  {
    species_vars = fe_var.var_indices();
  }

template<typename ImpType >

VariableIndex GRINS::CatalyticWallNeumannBCFactoryCommon< ImpType >::extract_temp_var ( ) const

protected

Definition at line 83 of file catalytic_wall_neumann_bc_factory_common.C.

References GRINS::GRINSPrivate::VariableWarehouse::get_variable(), GRINS::VariablesParsing::temperature_section(), and GRINS::FEVariablesBase::var_indices().

  {
    // This will throw an error is the temperature variables are not there
    const FEVariablesBase& temp_fe_var_base =
      GRINS::GRINSPrivate::VariableWarehouse::get_variable(VariablesParsing::temperature_section());

    const PrimitiveTempFEVariables& temp_fe_var =
      libMesh::cast_ref<const PrimitiveTempFEVariables&>(temp_fe_var_base);

    std::vector<VariableIndex> temp_var = temp_fe_var.var_indices();

    libmesh_assert_equal_to( temp_var.size(), 1 );

    return temp_var[0];
  }

Member Data Documentation

template<typename ImplType>

ImplType GRINS::CatalyticWallNeumannBCFactoryCommon< ImplType >::_wall_impl

protected

Definition at line 64 of file catalytic_wall_neumann_bc_factory_common.h.

---

The documentation for this class was generated from the following files:

• src/boundary_conditions/include/grins/catalytic_wall_neumann_bc_factory_common.h
• src/boundary_conditions/src/catalytic_wall_neumann_bc_factory_common.C
