gas_recombination_catalytic_wall.C File Reference

#include <iomanip>
#include "grins/math_constants.h"
#include "grins/gas_recombination_catalytic_wall.h"
#include "grins/constant_catalycity.h"
#include "grins/cantera_mixture.h"
#include "grins/antioch_chemistry.h"
#include "grins/materials_parsing.h"
#include "grins/physics_naming.h"
#include "libmesh/getpot.h"

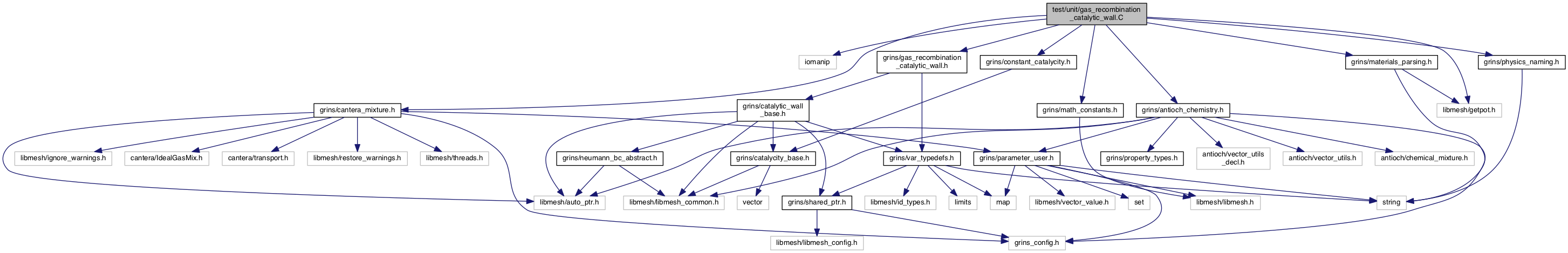

Include dependency graph for gas_recombination_catalytic_wall.C:

Go to the source code of this file.

Functions
template<typename ChemicalMixture >
int	test (ChemicalMixture &chem_mixture)
int	main (int argc, char *argv[])

Function Documentation

int main	(	int	argc,
		char *	argv[]
	)

Definition at line 131 of file gas_recombination_catalytic_wall.C.

{
  if( argc != 3 )
    {
      std::cerr << "Error: must specify the test type (cantera or antioch) and the input file name"
                << std::endl;
      exit(1);
    }

  std::string test_type = argv[1];

  GetPot input( argv[2] );

  int return_flag = 0;

  if( test_type == "cantera" )
    {
#ifdef GRINS_HAVE_CANTERA
      GRINS::CanteraMixture chem_mixture( input, "TestMaterial" );
      return_flag = test<GRINS::CanteraMixture>( chem_mixture );
#else
      return_flag = 77;
#endif
    }
  else if( test_type == "antioch" )
    {
#ifdef GRINS_HAVE_ANTIOCH
      GRINS::AntiochChemistry chem_mixture( input, "TestMaterial" );
      return_flag = test<GRINS::AntiochChemistry>( chem_mixture );
#else
      return_flag = 77;
#endif
    }
  else
    {
      std::cerr << "Invalid test type " << test_type << std::endl;
      return_flag = 1;
    }

  return return_flag;
}

template<typename ChemicalMixture >

int test

(

ChemicalMixture &

chem_mixture

)

Definition at line 42 of file gas_recombination_catalytic_wall.C.

References GRINS::CatalyticWallBase< Chemistry >::domega_dot_dT(), GRINS::CatalyticWallBase< Chemistry >::domega_dot_dws(), GRINS::CatalyticWallBase< Chemistry >::omega_dot(), and GRINS::Constants::two_pi.

{
  const unsigned int N_index = chem_mixture.species_index("N");
  const unsigned int N2_index = chem_mixture.species_index("N2");

  const double gamma = 0.03;

  GRINS::ConstantCatalycity gamma_r( gamma );

  GRINS::GasRecombinationCatalyticWall<ChemicalMixture> wall_N( chem_mixture, gamma_r, N_index, N2_index );

  const double w_s = 0.2;

  const double rho = 1.0e-3;
  const double rho_s = rho*w_s;

  const double T = 620.1;
  const double R_N = chem_mixture.R( chem_mixture.species_index("N") );

  const double R = 30.1;

  const double omega_dot_exact = rho_s*gamma*std::sqrt( R_N*T/(GRINS::Constants::two_pi) );
  const double domega_dot_dT_exact = 0.5*rho_s*gamma*std::sqrt( R_N/(T*GRINS::Constants::two_pi) );
  const double drho_dws = -rho*rho_s/R;
  const double domega_dot_dws_exact = drho_dws*w_s*gamma*std::sqrt( R_N*T/(GRINS::Constants::two_pi) )
                                    + rho*gamma*std::sqrt( R_N*T/(GRINS::Constants::two_pi) );

  int return_flag = 0;

  const double omega_dot_N = wall_N.omega_dot( rho_s, T );

  const double domega_dot_dT_N = wall_N.domega_dot_dT( rho_s, T );

  const double domega_dot_dws_N = wall_N.domega_dot_dws( rho_s, w_s, T, R );

  const double tol = 1.0e-15;

  /* omega_dot tests */
  {
    double rel_error = std::fabs( (omega_dot_N - omega_dot_exact)/omega_dot_exact );

    if( rel_error > tol )
      {
        std::cerr << std::setprecision(16) << std::scientific
                  << "Mismatch in omega_dot_N!" << std::endl
                  << "omega_dot_N = " << omega_dot_N << std::endl
                  << "omega_dot_exact = " << omega_dot_exact << std::endl
                  << "rel error = " << rel_error << std::endl;

        return_flag = 1;
      }
  }

  /* domega_dot_dT tests */
  {
    double rel_error = std::fabs( (domega_dot_dT_N - domega_dot_dT_exact)/domega_dot_dT_exact );

    if( rel_error > tol )
      {
        std::cerr << std::setprecision(16) << std::scientific
                  << "Mismatch in domega_dot_dT_N!" << std::endl
                  << "domega_dot_dT_N = " << domega_dot_dT_N << std::endl
                  << "domega_dot_dT_exact = " << domega_dot_dT_exact << std::endl
                  << "rel error = " << rel_error << std::endl;

        return_flag = 1;
      }
  }

  /* domega_dot_dws tests */
  {
    double rel_error = std::fabs( (domega_dot_dws_N - domega_dot_dws_exact)/domega_dot_dws_exact );

    if( rel_error > tol )
      {
        std::cerr << std::setprecision(16) << std::scientific
                  << "Mismatch in domega_dot_dws_N!" << std::endl
                  << "domega_dot_dws_N = " << domega_dot_dws_N << std::endl
                  << "domega_dot_dws_exact = " << domega_dot_dws_exact << std::endl
                  << "rel error = " << rel_error << std::endl;

        return_flag = 1;
      }
  }

  return return_flag;
}
