generic_solution_regression.C File Reference

#include "grins_config.h"
#include "grins/mesh_builder.h"
#include "grins/simulation.h"
#include "grins/simulation_builder.h"
#include "grins/multiphysics_sys.h"
#include "libmesh/exact_solution.h"

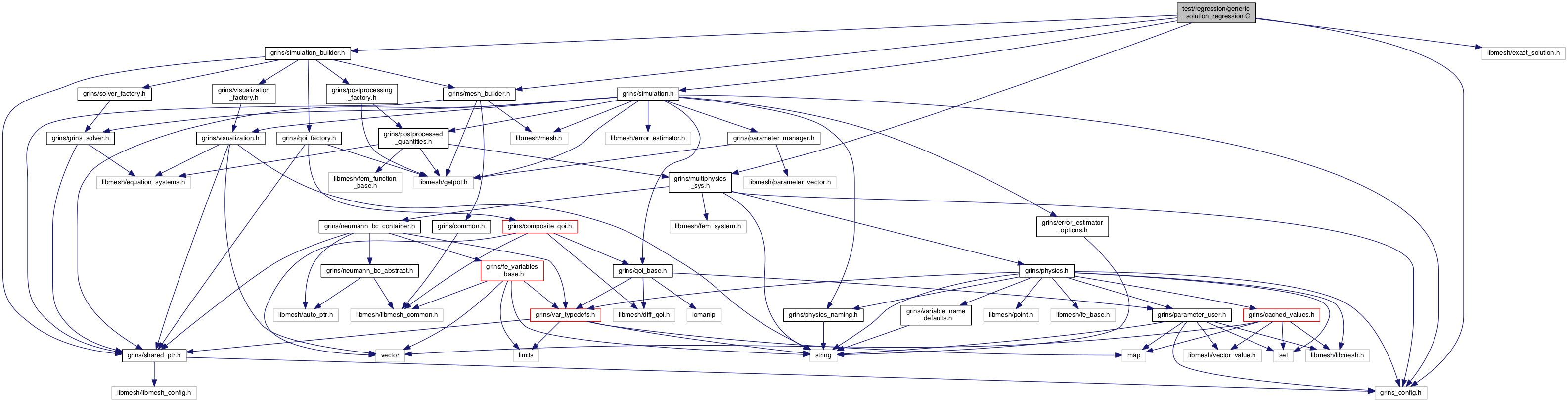

Include dependency graph for generic_solution_regression.C:

Go to the source code of this file.

Functions
void	test_error_norm (libMesh::ExactSolution &exact_sol, const std::string &system_name, const std::string &var, const std::string &norm, const double tol, int &return_flag)
int	main (int argc, char *argv[])

Function Documentation

int main	(	int	argc,
		char *	argv[]
	)

Definition at line 43 of file generic_solution_regression.C.

References GRINS::Simulation::run(), and test_error_norm().

{
  GetPot command_line(argc,argv);

  if( !command_line.have_variable("input") )
    {
      std::cerr << "ERROR: Must specify input file on command line with input=<file>." << std::endl;
      exit(1);
    }

  if( !command_line.have_variable("soln-data") )
    {
      std::cerr << "ERROR: Must specify solution data on command line with soln-data=<file>." << std::endl;
      exit(1);
    }

  if( !command_line.have_variable("vars") )
    {
      std::cerr << "ERROR: Must specify variables on command line with vars='var1 var2'" << std::endl;
      exit(1);
    }

  if( !command_line.have_variable("norms") )
    {
      std::cerr << "ERROR: Must specify error norms on command line with norms='L2 H1'" << std::endl;
      exit(1);
    }

  if( !command_line.have_variable("tol") )
    {
      std::cerr << "ERROR: Must specify test tolerance on command line with tol=<tol>" << std::endl;
      exit(1);
    }

  // libMesh input file should be first argument
  std::string libMesh_input_filename = command_line("input", "DIE!");

  {
    std::ifstream i(libMesh_input_filename.c_str());
    if (!i)
      {
        std::cerr << "Error: Could not read from libMesh input file "
                << libMesh_input_filename << std::endl;
        exit(1);
      }
  }

  // Create our GetPot object.
  GetPot libMesh_inputfile( libMesh_input_filename );

  // Initialize libMesh library.
  libMesh::LibMeshInit libmesh_init(argc, argv);

  GRINS::SimulationBuilder sim_builder;

  GRINS::Simulation grins( libMesh_inputfile,
                           command_line,
                           sim_builder,
                           libmesh_init.comm() );

  // Do solve here
  grins.run();

  // Get equation systems to create ExactSolution object
  GRINS::SharedPtr<libMesh::EquationSystems> es = grins.get_equation_system();

   // Create Exact solution object and attach exact solution quantities
  libMesh::ExactSolution exact_sol(*es);

  libMesh::EquationSystems es_ref( es->get_mesh() );

  // Filename of file where comparison solution is stashed
  std::string solution_file = command_line("soln-data", "DIE!");
  es_ref.read( solution_file );

  exact_sol.attach_reference_solution( &es_ref );

  // Now grab the variables for which we want to compare
  unsigned int n_vars = command_line.vector_variable_size("vars");
  std::vector<std::string> vars(n_vars);
  for( unsigned int v = 0; v < n_vars; v++ )
    {
      vars[v] = command_line("vars", "DIE!", v);
    }

  // Now grab the norms to compute for each variable error
  unsigned int n_norms = command_line.vector_variable_size("norms");
  std::vector<std::string> norms(n_norms);
  for( unsigned int n = 0; n < n_norms; n++ )
    {
      norms[n] = command_line("norms", "DIE!", n);
      if( norms[n] != std::string("L2") &&
          norms[n] != std::string("H1") )
        {
          std::cerr << "ERROR: Invalid norm input " << norms[n] << std::endl
                    << "       Valid values are: L2" << std::endl
                    << "                         H1" << std::endl;
        }
    }

  const std::string& system_name = grins.get_multiphysics_system_name();

  // Now compute error for each variable
  for( unsigned int v = 0; v < n_vars; v++ )
    {
      exact_sol.compute_error(system_name, vars[v]);
    }

  int return_flag = 0;

  double tol = command_line("tol", 1.0e-10);

  // Now test error for each variable, for each norm
  for( unsigned int v = 0; v < n_vars; v++ )
    {
      for( unsigned int n = 0; n < n_norms; n++ )
        {
          test_error_norm( exact_sol, system_name, vars[v], norms[n], tol, return_flag );
        }
    }

  // Now grab any "gold" QoI values
  unsigned int n_qoi_vals = command_line.vector_variable_size("qois");
  for( unsigned int n = 0; n < n_qoi_vals; n++ )
    {

      std::cout << "==========================================================" << std::endl
                << "Checking qoi " << n << " with tol " << tol << "...";

      libMesh::Number gold_qoi = command_line("qois", libMesh::Number(0), n);

      libMesh::Number computed_qoi =
        grins.get_multiphysics_system()->qoi[n];

      double error = computed_qoi - gold_qoi;

      if (std::abs(error) > tol)
        {
          std::cerr << "Tolerance exceeded for generic regression test!" << std::endl
                    << "tolerance     = " << tol << std::endl
                    << "error         = " << error << std::endl
                    << "qoi index     = " << n << std::endl;
          return_flag = 1;
        }
      else
        std::cout << "PASSED!" << std::endl
                  << "==========================================================" << std::endl;

    }


  return return_flag;
}

void test_error_norm	(	libMesh::ExactSolution &	exact_sol,
		const std::string &	system_name,
		const std::string &	var,
		const std::string &	norm,
		const double	tol,
		int &	return_flag
	)

Definition at line 197 of file generic_solution_regression.C.

Referenced by main().

{
  // We don't set return_flag unless we are setting it 1
  // since this function gets called multiple times and we don't
  // want to overwrite a previous "fail" (return_flag = 1) with
  // a "pass" (return_flag = 0)

  double error = 0.0;

  std::cout << "==========================================================" << std::endl
            << "Checking variable " << var << " using error norm " << norm << " with tol " << tol << "...";

  if( norm == std::string("L2") )
    {
      error = exact_sol.l2_error(system_name, var);
    }
  else if( norm == std::string("H1") )
    {
      error = exact_sol.h1_error(system_name, var);
    }
  else
    {
      std::cerr << "ERROR: Invalid norm " << norm << std::endl;
      exit(1);
    }

  if( error > tol )
    {
      return_flag = 1;

      std::cerr << "Tolerance exceeded for generic regression test!" << std::endl
                << "tolerance     = " << tol << std::endl
                << "norm of error = " << error << std::endl
                << "norm type     = " << norm << std::endl
                << "var           = " << var << std::endl;
    }
  else
    {
      std::cout << "PASSED!" << std::endl
                << "==========================================================" << std::endl;
    }

  return;
}
