GRINS::SingleVarSingleFETypeVariable Class Reference

Base class for variables with a single component. More...

#include <single_var_single_fe_type_variable.h>

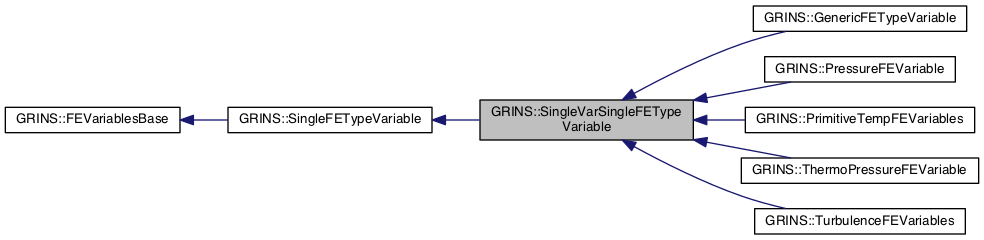

Inheritance diagram for GRINS::SingleVarSingleFETypeVariable:

Collaboration diagram for GRINS::SingleVarSingleFETypeVariable:

Public Member Functions
	SingleVarSingleFETypeVariable (const GetPot &input, const std::string &physics_name, const std::string &old_var_prefix, const std::string &old_var_name, const std::string &default_name, const std::string &subsection, const std::string &default_family, const std::string &default_order, bool is_constraint_var)
	Deprecated, old style constructor. More...
	SingleVarSingleFETypeVariable (const GetPot &input, const std::string &subsection, const std::string &default_name, bool is_constraint_var)
	Primary constructor. More...
	~SingleVarSingleFETypeVariable ()
Public Member Functions inherited from GRINS::SingleFETypeVariable
	SingleFETypeVariable (const GetPot &input, const std::string &physics_name, const std::string &old_var_prefix, const std::string &subsection, const std::string &default_family, const std::string &default_order, bool is_constraint_var)
	Deprecated, old style constructor. More...
	SingleFETypeVariable (const GetPot &input, const std::string &subsection, bool is_constraint_var)
	Primary constructor. More...
	~SingleFETypeVariable ()
virtual void	init (libMesh::FEMSystem *system)
	Add variables to the system. More...
Public Member Functions inherited from GRINS::FEVariablesBase
	FEVariablesBase (bool is_constraint_var)
	~FEVariablesBase ()
bool	is_constraint_var () const
void	set_neumann_bc_is_positive (bool is_positive)
	Reset whetever Neumann bc is postive or not. More...
libMesh::Real	neumann_bc_sign () const
const std::vector< std::string > &	active_var_names () const
	Return the var names that are active from this class. More...
const std::vector< VariableIndex > &	var_indices () const

Additional Inherited Members
Protected Member Functions inherited from GRINS::SingleFETypeVariable
void	parse_family_and_order (const GetPot &input, const std::string &physics_name, const std::string &old_var_prefix, const std::string &subsection, std::vector< GRINSEnums::FEFamily > &family, std::vector< GRINSEnums::Order > &order, const std::string &default_family, const std::string &default_order)
	Helper function to parse FEFamily and Order. More...
void	dup_family_order_check (const GetPot &input, const std::string &physics_name, const std::string &old_var_prefix) const
	Check (and error if true) for old and new style FEFamily/Order input. More...
bool	have_family_or_order (const GetPot &input, const std::string &physics_name, const std::string &old_var_prefix, const std::string &subsection) const
	Check for no presence of FEFamily/Order input. More...
void	parse_old_style_with_warning (const GetPot &input, const std::string &physics_name, const std::string &old_var_prefix, const std::string &default_family, const std::string &default_order, const std::string &subsection, GRINSEnums::FEFamily &family, GRINSEnums::Order &order)
void	parse_new_style (const GetPot &input, const std::string &subsection, GRINSEnums::FEFamily &family, GRINSEnums::Order &order)
Protected Member Functions inherited from GRINS::FEVariablesBase
void	parse_names_from_input (const GetPot &input, const std::string &subsection, std::vector< std::string > &var_names, const std::vector< std::string > &default_names)
	Method to parse variable names from input. More...
void	duplicate_name_section_check (const GetPot &input) const
	Check for old name style and new name style. If both present, error. More...
bool	check_dep_name_input (const GetPot &input, const std::string &new_subsection) const
	Check for deprecated variable name input style. More...
Protected Attributes inherited from GRINS::FEVariablesBase
std::vector< VariableIndex >	_vars
std::vector< std::string >	_var_names
std::vector< GRINSEnums::FEFamily >	_family
std::vector< GRINSEnums::Order >	_order
bool	_is_constraint_var
	Tracks whether this is a constraint variable. More...
libMesh::Real	_neumann_bc_sign
	Track the sign of the Neumann BC term. Defaults to 1.0. More...

Detailed Description

Base class for variables with a single component.

Definition at line 34 of file single_var_single_fe_type_variable.h.

Constructor & Destructor Documentation

GRINS::SingleVarSingleFETypeVariable::SingleVarSingleFETypeVariable	(	const GetPot &	input,
		const std::string &	physics_name,
		const std::string &	old_var_prefix,
		const std::string &	old_var_name,
		const std::string &	default_name,
		const std::string &	subsection,
		const std::string &	default_family,
		const std::string &	default_order,
		bool	is_constraint_var
	)

Deprecated, old style constructor.

This constructor is used for when there is possibly old deprecated styles of input for which we do additional checks/warnings. Otherwise, you should use the new constructor.

Definition at line 33 of file single_var_single_fe_type_variable.C.

References GRINS::FEVariablesBase::_var_names, GRINS::FEVariablesBase::check_dep_name_input(), and GRINS::FEVariablesBase::parse_names_from_input().

  : SingleFETypeVariable(input,physics_name,old_var_prefix,subsection,default_family,
                         default_order,is_constraint_var)
  {
    _var_names.resize(1);

    std::vector<std::string> default_names(1,default_name);

    if( this->check_dep_name_input(input,subsection) )
      _var_names[0] = input("Physics/VariableNames/"+old_var_name, default_names[0] );
    else
      this->parse_names_from_input(input,subsection,_var_names,default_names);
  }

GRINS::SingleVarSingleFETypeVariable::SingleVarSingleFETypeVariable	(	const GetPot &	input,
		const std::string &	subsection,
		const std::string &	default_name,
		bool	is_constraint_var
	)

Primary constructor.

Will parse from input section [Variables/<subsection>].

Definition at line 55 of file single_var_single_fe_type_variable.C.

References GRINS::FEVariablesBase::_var_names, and GRINS::FEVariablesBase::parse_names_from_input().

    : SingleFETypeVariable(input,subsection,is_constraint_var)
  {
    _var_names.resize(1);
    std::vector<std::string> default_names(1,default_name);
    this->parse_names_from_input(input,subsection,_var_names,default_names);
  }

GRINS::SingleVarSingleFETypeVariable::~SingleVarSingleFETypeVariable ( )

inline

Definition at line 59 of file single_var_single_fe_type_variable.h.

{};

---

The documentation for this class was generated from the following files:

• src/variables/include/grins/single_var_single_fe_type_variable.h
• src/variables/src/single_var_single_fe_type_variable.C
