#include <qoi_base.h>

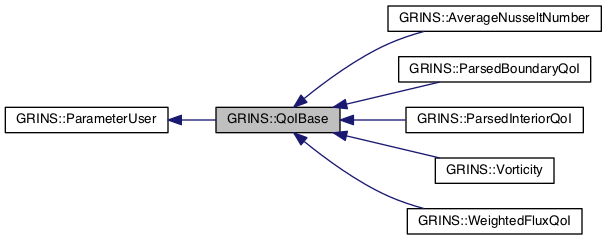

Inheritance diagram for GRINS::QoIBase:

[legend]

Collaboration diagram for GRINS::QoIBase:

Public Member Functions
	QoIBase (const std::string &qoi_name)

virtual	~QoIBase ()

virtual QoIBase *	clone () const =0
	Clone this QoI. More...

virtual bool	assemble_on_interior () const =0
	Does the QoI need an element interior assembly loop? More...

virtual bool	assemble_on_sides () const =0
	Does the QoI need a domain boundary assembly loop? More...

virtual void	init (const GetPot &input, const MultiphysicsSystem &system, unsigned int qoi_num)
	Method to allow QoI to cache any system information needed for QoI calculation, for example, solution variable indices. More...

virtual void	init_context (AssemblyContext &context)

virtual void	element_qoi (AssemblyContext &context, const unsigned int qoi_index)
	Compute the qoi value for element interiors. More...

virtual void	element_qoi_derivative (AssemblyContext &context, const unsigned int qoi_index)
	Compute the qoi derivative with respect to the solution on element interiors. More...

virtual void	side_qoi (AssemblyContext &context, const unsigned int qoi_index)
	Compute the qoi value on the domain boundary. More...

virtual void	side_qoi_derivative (AssemblyContext &context, const unsigned int qoi_index)
	Compute the qoi derivative with respect to the solution on the domain boundary. More...

virtual void	parallel_op (const libMesh::Parallel::Communicator &communicator, libMesh::Number &sys_qoi, libMesh::Number &local_qoi)
	Call the parallel operation for this QoI and cache the value. More...

virtual void	thread_join (libMesh::Number &qoi, const libMesh::Number &other_qoi)
	Call the operation to accumulate this QoI from multiple threads. More...

virtual void	output_qoi (std::ostream &out) const
	Basic output for computed QoI's. More...

libMesh::Number	value () const
	Returns the current QoI value. More...

const std::string &	name () const
	Returns the name of this QoI. More...

Public Member Functions inherited from GRINS::ParameterUser
	ParameterUser (const std::string &user_name)

virtual	~ParameterUser ()

virtual void	set_parameter (libMesh::Number &param_variable, const GetPot &input, const std::string &param_name, libMesh::Number param_default)
	Each subclass can simultaneously read a parameter value from. More...

virtual void	set_parameter (libMesh::ParsedFunction< libMesh::Number, libMesh::Gradient > &func, const GetPot &input, const std::string &func_param_name, const std::string &param_default)
	Each subclass can simultaneously read a parsed function from. More...

virtual void	set_parameter (libMesh::ParsedFEMFunction< libMesh::Number > &func, const GetPot &input, const std::string &func_param_name, const std::string &param_default)
	Each subclass can simultaneously read a parsed function from. More...

virtual void	move_parameter (const libMesh::Number &old_parameter, libMesh::Number &new_parameter)
	When cloning an object, we need to update parameter pointers. More...

virtual void	move_parameter (const libMesh::ParsedFunction< libMesh::Number, libMesh::Gradient > &old_func, libMesh::ParsedFunction< libMesh::Number, libMesh::Gradient > &new_func)
	When cloning an object, we need to update parameter pointers. More...

virtual void	move_parameter (const libMesh::ParsedFEMFunction< libMesh::Number > &old_func, libMesh::ParsedFEMFunction< libMesh::Number > &new_func)
	When cloning an object, we need to update parameter pointers. More...

virtual void	register_parameter (const std::string &param_name, libMesh::ParameterMultiAccessor< libMesh::Number > &param_pointer) const
	Each subclass will register its copy of an independent. More...

Protected Attributes
std::string	_qoi_name

libMesh::Number	_qoi_value

Additional Inherited Members
Static Public Attributes inherited from GRINS::ParameterUser
static std::string	zero_vector_function = std::string("{0}")
	A parseable function string with LIBMESH_DIM components, all 0. More...

Detailed Description

Definition at line 48 of file qoi_base.h.

Constructor & Destructor Documentation

GRINS::QoIBase::QoIBase ( const std::string & qoi_name )

Definition at line 39 of file qoi_base.C.

     : ParameterUser(qoi_name),
       _qoi_name(qoi_name),
       _qoi_value(0.0)
   {
     return;
   }

GRINS::QoIBase::~QoIBase ( )

virtual

Definition at line 47 of file qoi_base.C.

   {
     return;
   }

Member Function Documentation

virtual bool GRINS::QoIBase::assemble_on_interior ( ) const

pure virtual

Does the QoI need an element interior assembly loop?

This is pure virtual to force to user to specify.

Implemented in GRINS::ParsedBoundaryQoI, GRINS::ParsedInteriorQoI, GRINS::Vorticity, GRINS::WeightedFluxQoI, and GRINS::AverageNusseltNumber.

Referenced by GRINS::CompositeQoI::add_qoi().

virtual bool GRINS::QoIBase::assemble_on_sides ( ) const

pure virtual

Does the QoI need a domain boundary assembly loop?

This is pure virtual to force to user to specify.

Implemented in GRINS::ParsedBoundaryQoI, GRINS::ParsedInteriorQoI, GRINS::Vorticity, GRINS::WeightedFluxQoI, and GRINS::AverageNusseltNumber.

Referenced by GRINS::CompositeQoI::add_qoi().

virtual QoIBase* GRINS::QoIBase::clone ( ) const

pure virtual

Clone this QoI.

We return a raw pointer, but it is expected for the user to take ownership and delete the object when done.

Implemented in GRINS::ParsedBoundaryQoI, GRINS::ParsedInteriorQoI, GRINS::Vorticity, GRINS::WeightedFluxQoI, and GRINS::AverageNusseltNumber.

Referenced by GRINS::CompositeQoI::add_qoi().

void GRINS::QoIBase::element_qoi	(	AssemblyContext &	context,
		const unsigned int	qoi_index
	)

virtual

Compute the qoi value for element interiors.

Override this method if your QoI is defined on element interiors

Reimplemented in GRINS::Vorticity, and GRINS::ParsedInteriorQoI.

Definition at line 64 of file qoi_base.C.

   {
     return;
   }

void GRINS::QoIBase::element_qoi_derivative	(	AssemblyContext &	context,
		const unsigned int	qoi_index
	)

virtual

Compute the qoi derivative with respect to the solution on element interiors.

Override this method if your QoI is defined on element interiors

Reimplemented in GRINS::Vorticity, and GRINS::ParsedInteriorQoI.

Definition at line 70 of file qoi_base.C.

   {
     return;
   }

void GRINS::QoIBase::init	(	const GetPot &	input,
		const MultiphysicsSystem &	system,
		unsigned int	qoi_num
	)

virtual

Method to allow QoI to cache any system information needed for QoI calculation, for example, solution variable indices.

Reimplemented in GRINS::Vorticity, GRINS::ParsedBoundaryQoI, GRINS::ParsedInteriorQoI, GRINS::WeightedFluxQoI, and GRINS::AverageNusseltNumber.

Definition at line 53 of file qoi_base.C.

56 {

57 }

void GRINS::QoIBase::init_context ( AssemblyContext & context )

virtual

Reimplemented in GRINS::Vorticity, GRINS::ParsedBoundaryQoI, GRINS::ParsedInteriorQoI, and GRINS::AverageNusseltNumber.

Definition at line 59 of file qoi_base.C.

   {
     return;
   }

const std::string & GRINS::QoIBase::name ( ) const

inline

Returns the name of this QoI.

Definition at line 139 of file qoi_base.h.

References _qoi_name.

Referenced by GRINS::SteadyVisualization::output_adjoint(), and GRINS::UnsteadyVisualization::output_adjoint().

   {
     return _qoi_name;
   }

void GRINS::QoIBase::output_qoi ( std::ostream & out ) const

virtual

Basic output for computed QoI's.

If fancier output is desired, override this method.

Definition at line 108 of file qoi_base.C.

References _qoi_name, and _qoi_value.

   {
     out << "==========================================================" << std::endl;

     out << _qoi_name+" = "
         << std::setprecision(16)
         << std::scientific
         << _qoi_value << std::endl;

     out << "==========================================================" << std::endl;

     return;
   }

void GRINS::QoIBase::parallel_op	(	const libMesh::Parallel::Communicator &	communicator,
		libMesh::Number &	sys_qoi,
		libMesh::Number &	local_qoi
	)

virtual

Call the parallel operation for this QoI and cache the value.

By default, this is just a sum. Override if QoI is more complex.

Definition at line 88 of file qoi_base.C.

References _qoi_value.

   {
     communicator.sum(local_qoi);

     sys_qoi = local_qoi;

     _qoi_value = sys_qoi;

     return;
   }

void GRINS::QoIBase::side_qoi	(	AssemblyContext &	context,
		const unsigned int	qoi_index
	)

virtual

Compute the qoi value on the domain boundary.

Override this method if your QoI is defined on the domain boundary

Reimplemented in GRINS::ParsedBoundaryQoI, and GRINS::AverageNusseltNumber.

Definition at line 76 of file qoi_base.C.

   {
     return;
   }

void GRINS::QoIBase::side_qoi_derivative	(	AssemblyContext &	context,
		const unsigned int	qoi_index
	)

virtual

Compute the qoi derivative with respect to the solution on the domain boundary.

Override this method if your QoI is defined on the domain boundary

Reimplemented in GRINS::ParsedBoundaryQoI, and GRINS::AverageNusseltNumber.

Definition at line 82 of file qoi_base.C.

   {
     return;
   }

void GRINS::QoIBase::thread_join	(	libMesh::Number &	qoi,
		const libMesh::Number &	other_qoi
	)

virtual

Call the operation to accumulate this QoI from multiple threads.

By default, this is just a sum. Override if QoI is more complex.

Definition at line 101 of file qoi_base.C.

   {
     qoi += other_qoi;

     return;
   }

libMesh::Number GRINS::QoIBase::value ( ) const

inline

Returns the current QoI value.

Definition at line 133 of file qoi_base.h.

References _qoi_value.

   {
     return _qoi_value;
   }

Member Data Documentation

std::string GRINS::QoIBase::_qoi_name

protected

Definition at line 127 of file qoi_base.h.

Referenced by name(), and output_qoi().

libMesh::Number GRINS::QoIBase::_qoi_value

protected

Definition at line 129 of file qoi_base.h.

Referenced by output_qoi(), parallel_op(), and value().

The documentation for this class was generated from the following files:

src/qoi/include/grins/qoi_base.h
src/qoi/src/qoi_base.C
