Physics class for Incompressible Navier-Stokes. More...

#include <low_mach_navier_stokes_base.h>

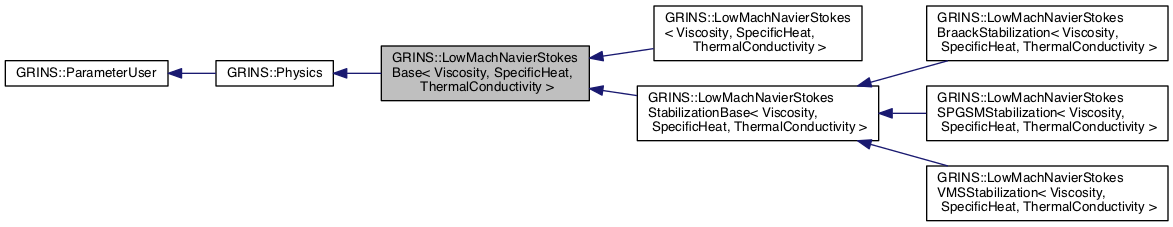

Inheritance diagram for GRINS::LowMachNavierStokesBase< Viscosity, SpecificHeat, ThermalConductivity >:

[legend]

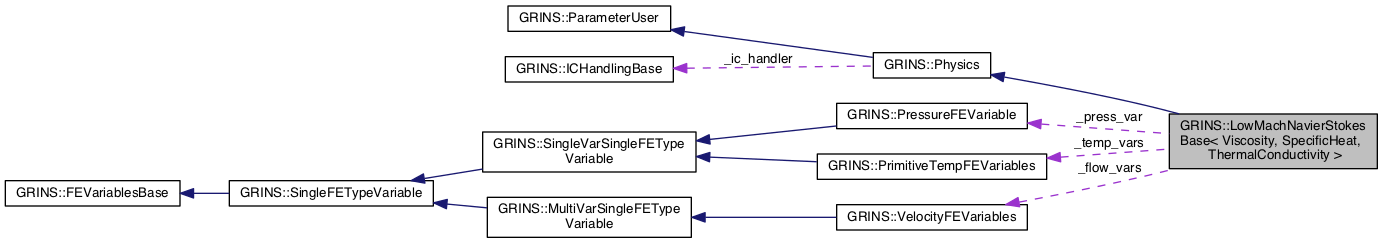

Collaboration diagram for GRINS::LowMachNavierStokesBase< Viscosity, SpecificHeat, ThermalConductivity >:

[legend]

Public Member Functions
	LowMachNavierStokesBase (const PhysicsName &physics_name, const std::string &core_physics_name, const GetPot &input)

	~LowMachNavierStokesBase ()

virtual void	init_variables (libMesh::FEMSystem *system)
	Initialize variables for this physics. More...

virtual void	set_time_evolving_vars (libMesh::FEMSystem *system)
	Sets velocity variables to be time-evolving. More...

virtual void	init_context (AssemblyContext &context)
	Initialize context for added physics variables. More...

libMesh::Real	T (const libMesh::Point &p, const AssemblyContext &c) const

libMesh::Real	rho (libMesh::Real T, libMesh::Real p0) const

libMesh::Real	d_rho_dT (libMesh::Real T, libMesh::Real p0) const

libMesh::Real	get_p0_steady (const AssemblyContext &c, unsigned int qp) const

libMesh::Real	get_p0_steady_side (const AssemblyContext &c, unsigned int qp) const

libMesh::Real	get_p0_steady (const AssemblyContext &c, const libMesh::Point &p) const

libMesh::Real	get_p0_transient (AssemblyContext &c, unsigned int qp) const

virtual void	register_parameter (const std::string &param_name, libMesh::ParameterMultiAccessor< libMesh::Number > &param_pointer) const
	Each subclass will register its copy of an independent. More...

Public Member Functions inherited from GRINS::Physics
	Physics (const GRINS::PhysicsName &physics_name, const GetPot &input)

virtual	~Physics ()

virtual bool	enabled_on_elem (const libMesh::Elem *elem)
	Find if current physics is active on supplied element. More...

void	set_is_steady (bool is_steady)
	Sets whether this physics is to be solved with a steady solver or not. More...

bool	is_steady () const
	Returns whether or not this physics is being solved with a steady solver. More...

virtual void	auxiliary_init (MultiphysicsSystem &system)
	Any auxillary initialization a Physics class may need. More...

virtual void	register_postprocessing_vars (const GetPot &input, PostProcessedQuantities< libMesh::Real > &postprocessing)
	Register name of postprocessed quantity with PostProcessedQuantities. More...

virtual void	element_time_derivative (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Time dependent part(s) of physics for element interiors. More...

virtual void	side_time_derivative (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Time dependent part(s) of physics for boundaries of elements on the domain boundary. More...

virtual void	nonlocal_time_derivative (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Time dependent part(s) of physics for scalar variables. More...

virtual void	element_constraint (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Constraint part(s) of physics for element interiors. More...

virtual void	side_constraint (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Constraint part(s) of physics for boundaries of elements on the domain boundary. More...

virtual void	nonlocal_constraint (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Constraint part(s) of physics for scalar variables. More...

virtual void	damping_residual (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Damping matrix part(s) for element interiors. All boundary terms lie within the time_derivative part. More...

virtual void	mass_residual (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Mass matrix part(s) for element interiors. All boundary terms lie within the time_derivative part. More...

virtual void	nonlocal_mass_residual (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
	Mass matrix part(s) for scalar variables. More...

void	init_ics (libMesh::FEMSystem *system, libMesh::CompositeFunction< libMesh::Number > &all_ics)

virtual void	compute_element_time_derivative_cache (const AssemblyContext &context, CachedValues &cache)

virtual void	compute_side_time_derivative_cache (const AssemblyContext &context, CachedValues &cache)

virtual void	compute_nonlocal_time_derivative_cache (const AssemblyContext &context, CachedValues &cache)

virtual void	compute_element_constraint_cache (const AssemblyContext &context, CachedValues &cache)

virtual void	compute_side_constraint_cache (const AssemblyContext &context, CachedValues &cache)

virtual void	compute_nonlocal_constraint_cache (const AssemblyContext &context, CachedValues &cache)

virtual void	compute_damping_residual_cache (const AssemblyContext &context, CachedValues &cache)

virtual void	compute_mass_residual_cache (const AssemblyContext &context, CachedValues &cache)

virtual void	compute_nonlocal_mass_residual_cache (const AssemblyContext &context, CachedValues &cache)

virtual void	compute_postprocessed_quantity (unsigned int quantity_index, const AssemblyContext &context, const libMesh::Point &point, libMesh::Real &value)

ICHandlingBase *	get_ic_handler ()

Public Member Functions inherited from GRINS::ParameterUser
	ParameterUser (const std::string &user_name)

virtual	~ParameterUser ()

virtual void	set_parameter (libMesh::Number &param_variable, const GetPot &input, const std::string &param_name, libMesh::Number param_default)
	Each subclass can simultaneously read a parameter value from. More...

virtual void	set_parameter (libMesh::ParsedFunction< libMesh::Number, libMesh::Gradient > &func, const GetPot &input, const std::string &func_param_name, const std::string &param_default)
	Each subclass can simultaneously read a parsed function from. More...

virtual void	set_parameter (libMesh::ParsedFEMFunction< libMesh::Number > &func, const GetPot &input, const std::string &func_param_name, const std::string &param_default)
	Each subclass can simultaneously read a parsed function from. More...

virtual void	move_parameter (const libMesh::Number &old_parameter, libMesh::Number &new_parameter)
	When cloning an object, we need to update parameter pointers. More...

virtual void	move_parameter (const libMesh::ParsedFunction< libMesh::Number, libMesh::Gradient > &old_func, libMesh::ParsedFunction< libMesh::Number, libMesh::Gradient > &new_func)
	When cloning an object, we need to update parameter pointers. More...

virtual void	move_parameter (const libMesh::ParsedFEMFunction< libMesh::Number > &old_func, libMesh::ParsedFEMFunction< libMesh::Number > &new_func)
	When cloning an object, we need to update parameter pointers. More...

Protected Attributes
libMesh::Number	_p0_over_R
	Thermodynamic pressure divided by gas constant. More...

libMesh::Number	_p0

libMesh::Number	_R

libMesh::Number	_T0

unsigned int	_dim
	Physical dimension of problem. More...

VelocityFEVariables	_flow_vars

PressureFEVariable	_press_var

PrimitiveTempFEVariables	_temp_vars

libMesh::UniquePtr< ThermoPressureFEVariable >	_p0_var

Viscosity	_mu
	Viscosity object. More...

SpecificHeat	_cp
	Specific heat object. More...

ThermalConductivity	_k
	Thermal conductivity object. More...

libMesh::Point	_g
	Gravity vector. More...

bool	_enable_thermo_press_calc
	Flag to enable thermodynamic pressure calculation. More...

Protected Attributes inherited from GRINS::Physics
const PhysicsName	_physics_name
	Name of the physics object. Used for reading physics specific inputs. More...

GRINS::ICHandlingBase *	_ic_handler

std::set< libMesh::subdomain_id_type >	_enabled_subdomains
	Subdomains on which the current Physics class is enabled. More...

Private Member Functions
	LowMachNavierStokesBase ()

void	read_input_options (const GetPot &input)
	Read options from GetPot input file. More...

void	register_variables ()

Additional Inherited Members
Static Public Member Functions inherited from GRINS::Physics
static void	set_is_axisymmetric (bool is_axisymmetric)
	Set whether we should treat the problem as axisymmetric. More...

static bool	is_axisymmetric ()

Static Public Attributes inherited from GRINS::ParameterUser
static std::string	zero_vector_function = std::string("{0}")
	A parseable function string with LIBMESH_DIM components, all 0. More...

Protected Member Functions inherited from GRINS::Physics
libMesh::UniquePtr< libMesh::FEGenericBase< libMesh::Real > >	build_new_fe (const libMesh::Elem elem, const libMesh::FEGenericBase< libMesh::Real > fe, const libMesh::Point p)

void	parse_enabled_subdomains (const GetPot &input, const std::string &physics_name)

Static Protected Attributes inherited from GRINS::Physics
static bool	_is_steady = false
	Caches whether or not the solver that's being used is steady or not. More...

static bool	_is_axisymmetric = false
	Caches whether we are solving an axisymmetric problem or not. More...

Detailed Description

template<class Viscosity, class SpecificHeat, class ThermalConductivity>
class GRINS::LowMachNavierStokesBase< Viscosity, SpecificHeat, ThermalConductivity >

Physics class for Incompressible Navier-Stokes.

This physics class implements the classical Incompressible Navier-Stokes equations.

Definition at line 51 of file low_mach_navier_stokes_base.h.

Constructor & Destructor Documentation

template<class Mu , class SH , class TC >

GRINS::LowMachNavierStokesBase< Mu, SH, TC >::LowMachNavierStokesBase	(	const PhysicsName &	physics_name,
		const std::string &	core_physics_name,
		const GetPot &	input
	)

Definition at line 48 of file low_mach_navier_stokes_base.C.

References GRINS::LowMachNavierStokesBase< Viscosity, SpecificHeat, ThermalConductivity >::_enable_thermo_press_calc, GRINS::LowMachNavierStokesBase< Viscosity, SpecificHeat, ThermalConductivity >::_p0_var, GRINS::PhysicsNaming::low_mach_navier_stokes(), GRINS::LowMachNavierStokesBase< Viscosity, SpecificHeat, ThermalConductivity >::read_input_options(), and GRINS::LowMachNavierStokesBase< Viscosity, SpecificHeat, ThermalConductivity >::register_variables().

     : Physics(physics_name, input),
       _flow_vars(input, core_physics_name),
       _press_var(input,core_physics_name, true /*is_constraint_var*/),
       _temp_vars(input, core_physics_name),
       _mu(input,MaterialsParsing::material_name(input,core_physics_name)),
       _cp(input,MaterialsParsing::material_name(input,core_physics_name)),
       _k(input,MaterialsParsing::material_name(input,core_physics_name))
   {
     _enable_thermo_press_calc = input("Physics/"+PhysicsNaming::low_mach_navier_stokes()+"/enable_thermo_press_calc", false );
     if( _enable_thermo_press_calc )
       _p0_var.reset( new ThermoPressureFEVariable(input,core_physics_name, true /*is_constraint_var*/) );

     this->read_input_options(input);
     this->register_variables();
   }

template<class Viscosity , class SpecificHeat , class ThermalConductivity >

GRINS::LowMachNavierStokesBase< Viscosity, SpecificHeat, ThermalConductivity >::~LowMachNavierStokesBase ( )

inline

Definition at line 57 of file low_mach_navier_stokes_base.h.

57 {};

template<class Viscosity , class SpecificHeat , class ThermalConductivity >

GRINS::LowMachNavierStokesBase< Viscosity, SpecificHeat, ThermalConductivity >::LowMachNavierStokesBase ( )

private

Member Function Documentation

template<class V , class SH , class TC >

libMesh::Real GRINS::LowMachNavierStokesBase< V, SH, TC >::d_rho_dT	(	libMesh::Real	T,
		libMesh::Real	p0
	)		const

inline

Definition at line 146 of file low_mach_navier_stokes_base.h.

   {
     return -p0/(this->_R*(T*T));
   }

template<class V , class SH , class TC >

libMesh::Real GRINS::LowMachNavierStokesBase< V, SH, TC >::get_p0_steady	(	const AssemblyContext &	c,
		unsigned int	qp
	)		const

inline

Definition at line 153 of file low_mach_navier_stokes_base.h.

   {
     libMesh::Real p0;
     if( this->_enable_thermo_press_calc )
       {
         p0 = c.interior_value( _p0_var->p0(), qp );
       }
     else
       {
         p0 = _p0;
       }
     return p0;
   }

template<class V , class SH , class TC >

libMesh::Real GRINS::LowMachNavierStokesBase< V, SH, TC >::get_p0_steady	(	const AssemblyContext &	c,
		const libMesh::Point &	p
	)		const

inline

Definition at line 187 of file low_mach_navier_stokes_base.h.

   {
     libMesh::Real p0;
     if( this->_enable_thermo_press_calc )
       {
         p0 = c.point_value( _p0_var->p0(), p );
       }
     else
       {
         p0 = _p0;
       }
     return p0;
   }

template<class V , class SH , class TC >

libMesh::Real GRINS::LowMachNavierStokesBase< V, SH, TC >::get_p0_steady_side	(	const AssemblyContext &	c,
		unsigned int	qp
	)		const

inline

Definition at line 170 of file low_mach_navier_stokes_base.h.

   {
     libMesh::Real p0;
     if( this->_enable_thermo_press_calc )
       {
         p0 = c.side_value( _p0_var->p0(), qp );
       }
     else
       {
         p0 = _p0;
       }
     return p0;
   }

template<class V , class SH , class TC >

libMesh::Real GRINS::LowMachNavierStokesBase< V, SH, TC >::get_p0_transient	(	AssemblyContext &	c,
		unsigned int	qp
	)		const

inline

Definition at line 204 of file low_mach_navier_stokes_base.h.

   {
     libMesh::Real p0;
     if( this->_enable_thermo_press_calc )
       {
         p0 = c.fixed_interior_value( _p0_var->p0(), qp );
       }
     else
       {
         p0 = _p0;
       }
     return p0;
   }

template<class Mu , class SH , class TC >

void GRINS::LowMachNavierStokesBase< Mu, SH, TC >::init_context ( AssemblyContext & context )

virtual

Initialize context for added physics variables.

Reimplemented from GRINS::Physics.

Reimplemented in GRINS::LowMachNavierStokes< Viscosity, SpecificHeat, ThermalConductivity >, and GRINS::LowMachNavierStokesStabilizationBase< Viscosity, SpecificHeat, ThermalConductivity >.

Definition at line 157 of file low_mach_navier_stokes_base.C.

Referenced by GRINS::LowMachNavierStokesStabilizationBase< Viscosity, SpecificHeat, ThermalConductivity >::init_context(), and GRINS::LowMachNavierStokes< Viscosity, SpecificHeat, ThermalConductivity >::init_context().

   {
     // We should prerequest all the data
     // we will need to build the linear system
     // or evaluate a quantity of interest.
     context.get_element_fe(_flow_vars.u())->get_JxW();
     context.get_element_fe(_flow_vars.u())->get_phi();
     context.get_element_fe(_flow_vars.u())->get_dphi();
     context.get_element_fe(_flow_vars.u())->get_xyz();

     context.get_element_fe(_temp_vars.T())->get_JxW();
     context.get_element_fe(_temp_vars.T())->get_phi();
     context.get_element_fe(_temp_vars.T())->get_dphi();
     context.get_element_fe(_temp_vars.T())->get_xyz();

     context.get_element_fe(_press_var.p())->get_phi();
     context.get_element_fe(_press_var.p())->get_xyz();

     return;
   }

template<class Mu , class SH , class TC >

void GRINS::LowMachNavierStokesBase< Mu, SH, TC >::init_variables ( libMesh::FEMSystem * system )

virtual

Initialize variables for this physics.

Implements GRINS::Physics.

Definition at line 119 of file low_mach_navier_stokes_base.C.

   {
     // Get libMesh to assign an index for each variable
     this->_dim = system->get_mesh().mesh_dimension();

     this->_flow_vars.init(system);
     this->_press_var.init(system);
     this->_temp_vars.init(system);

     /* If we need to compute the thermodynamic pressure, we force this to be a first
        order scalar variable. */
     if( _enable_thermo_press_calc )
       _p0_var->init(system);

     return;
   }

template<class Mu , class SH , class TC >

void GRINS::LowMachNavierStokesBase< Mu, SH, TC >::read_input_options ( const GetPot & input )

private

Read options from GetPot input file.

Definition at line 82 of file low_mach_navier_stokes_base.C.

References GRINS::PhysicsNaming::low_mach_navier_stokes(), and GRINS::MaterialsParsing::read_property().

Referenced by GRINS::LowMachNavierStokesBase< Viscosity, SpecificHeat, ThermalConductivity >::LowMachNavierStokesBase().

   {
     // Read thermodynamic state info
     MaterialsParsing::read_property( input,
                                      "Physics/"+PhysicsNaming::low_mach_navier_stokes()+"/p0",
                                      "ThermodynamicPressure",
                                      PhysicsNaming::low_mach_navier_stokes(),
                                      (*this),
                                      _p0 );

     MaterialsParsing::read_property( input,
                                      "Physics/"+PhysicsNaming::low_mach_navier_stokes()+"/T0",
                                      "ReferenceTemperature",
                                      PhysicsNaming::low_mach_navier_stokes(),
                                      (*this),
                                      _T0 );

     MaterialsParsing::read_property( input,
                                      "Physics/"+PhysicsNaming::low_mach_navier_stokes()+"/R",
                                      "GasConstant",
                                      PhysicsNaming::low_mach_navier_stokes(),
                                      (*this),
                                      _R );

     _p0_over_R = _p0/_R;

     // Read gravity vector
     unsigned int g_dim = input.vector_variable_size("Physics/"+PhysicsNaming::low_mach_navier_stokes()+"/g");

     _g(0) = input("Physics/"+PhysicsNaming::low_mach_navier_stokes()+"/g", 0.0, 0 );
     _g(1) = input("Physics/"+PhysicsNaming::low_mach_navier_stokes()+"/g", 0.0, 1 );

     if( g_dim == 3)
       _g(2) = input("Physics/"+PhysicsNaming::low_mach_navier_stokes()+"/g", 0.0, 2 );
   }

template<class Mu , class SH , class TC >

void GRINS::LowMachNavierStokesBase< Mu, SH, TC >::register_parameter	(	const std::string &	param_name,
		libMesh::ParameterMultiAccessor< libMesh::Number > &	param_pointer
	)		const

virtual

Each subclass will register its copy of an independent.

Reimplemented from GRINS::ParameterUser.

Definition at line 180 of file low_mach_navier_stokes_base.C.

References GRINS::ParameterUser::register_parameter().

   {
     ParameterUser::register_parameter(param_name, param_pointer);
     _mu.register_parameter(param_name, param_pointer);
     _cp.register_parameter(param_name, param_pointer);
     _k.register_parameter(param_name, param_pointer);
   }

template<class Mu , class SH , class TC >

void GRINS::LowMachNavierStokesBase< Mu, SH, TC >::register_variables ( )

private

Definition at line 68 of file low_mach_navier_stokes_base.C.

References GRINS::GRINSPrivate::VariableWarehouse::check_and_register_variable(), GRINS::VariablesParsing::pressure_section(), GRINS::VariablesParsing::temperature_section(), GRINS::VariablesParsing::thermo_pressure_section(), and GRINS::VariablesParsing::velocity_section().

Referenced by GRINS::LowMachNavierStokesBase< Viscosity, SpecificHeat, ThermalConductivity >::LowMachNavierStokesBase().

   {
     GRINSPrivate::VariableWarehouse::check_and_register_variable(VariablesParsing::pressure_section(),
                                                                  this->_press_var);
     GRINSPrivate::VariableWarehouse::check_and_register_variable(VariablesParsing::velocity_section(),
                                                                  this->_flow_vars);
     GRINSPrivate::VariableWarehouse::check_and_register_variable(VariablesParsing::temperature_section(),
                                                                  this->_temp_vars);
     if( this->_enable_thermo_press_calc )
       GRINSPrivate::VariableWarehouse::check_and_register_variable(VariablesParsing::thermo_pressure_section(),
                                                                    *(this->_p0_var));
   }

template<class V , class SH , class TC >

libMesh::Real GRINS::LowMachNavierStokesBase< V, SH, TC >::rho	(	libMesh::Real	T,
		libMesh::Real	p0
	)		const

inline

Definition at line 139 of file low_mach_navier_stokes_base.h.

   {
     return p0/(this->_R*T);
   }

template<class Mu , class SH , class TC >

void GRINS::LowMachNavierStokesBase< Mu, SH, TC >::set_time_evolving_vars ( libMesh::FEMSystem * system )

virtual

Sets velocity variables to be time-evolving.

Reimplemented from GRINS::Physics.

Definition at line 137 of file low_mach_navier_stokes_base.C.

   {
     const unsigned int dim = system->get_mesh().mesh_dimension();

     system->time_evolving(_flow_vars.u());
     system->time_evolving(_flow_vars.v());

     if (dim == 3)
       system->time_evolving(_flow_vars.w());

     system->time_evolving(_temp_vars.T());
     system->time_evolving(_press_var.p());

     if( _enable_thermo_press_calc )
       system->time_evolving(_p0_var->p0());

     return;
   }

template<class V , class SH , class TC >

libMesh::Real GRINS::LowMachNavierStokesBase< V, SH, TC >::T	(	const libMesh::Point &	p,
		const AssemblyContext &	c
	)		const

inline

Definition at line 132 of file low_mach_navier_stokes_base.h.

   {
     return c.point_value(_temp_vars.T(),p);
   }

Member Data Documentation

template<class Viscosity , class SpecificHeat , class ThermalConductivity >

SpecificHeat GRINS::LowMachNavierStokesBase< Viscosity, SpecificHeat, ThermalConductivity >::_cp

protected

Specific heat object.

Definition at line 108 of file low_mach_navier_stokes_base.h.

template<class Viscosity , class SpecificHeat , class ThermalConductivity >

unsigned int GRINS::LowMachNavierStokesBase< Viscosity, SpecificHeat, ThermalConductivity >::_dim

protected

Physical dimension of problem.

Definition at line 96 of file low_mach_navier_stokes_base.h.

template<class Viscosity , class SpecificHeat , class ThermalConductivity >

bool GRINS::LowMachNavierStokesBase< Viscosity, SpecificHeat, ThermalConductivity >::_enable_thermo_press_calc

protected

Flag to enable thermodynamic pressure calculation.

Definition at line 117 of file low_mach_navier_stokes_base.h.

Referenced by GRINS::LowMachNavierStokesBase< Viscosity, SpecificHeat, ThermalConductivity >::LowMachNavierStokesBase().

template<class Viscosity , class SpecificHeat , class ThermalConductivity >

VelocityFEVariables GRINS::LowMachNavierStokesBase< Viscosity, SpecificHeat, ThermalConductivity >::_flow_vars

protected

Definition at line 98 of file low_mach_navier_stokes_base.h.

template<class Viscosity , class SpecificHeat , class ThermalConductivity >

libMesh::Point GRINS::LowMachNavierStokesBase< Viscosity, SpecificHeat, ThermalConductivity >::_g

protected

Gravity vector.

Definition at line 114 of file low_mach_navier_stokes_base.h.

template<class Viscosity , class SpecificHeat , class ThermalConductivity >

ThermalConductivity GRINS::LowMachNavierStokesBase< Viscosity, SpecificHeat, ThermalConductivity >::_k

protected

Thermal conductivity object.

Definition at line 111 of file low_mach_navier_stokes_base.h.

template<class Viscosity , class SpecificHeat , class ThermalConductivity >

Viscosity GRINS::LowMachNavierStokesBase< Viscosity, SpecificHeat, ThermalConductivity >::_mu

protected

Viscosity object.

Definition at line 105 of file low_mach_navier_stokes_base.h.

template<class Viscosity , class SpecificHeat , class ThermalConductivity >

libMesh::Number GRINS::LowMachNavierStokesBase< Viscosity, SpecificHeat, ThermalConductivity >::_p0

protected

Definition at line 93 of file low_mach_navier_stokes_base.h.

template<class Viscosity , class SpecificHeat , class ThermalConductivity >

libMesh::Number GRINS::LowMachNavierStokesBase< Viscosity, SpecificHeat, ThermalConductivity >::_p0_over_R

protected

Thermodynamic pressure divided by gas constant.

Definition at line 91 of file low_mach_navier_stokes_base.h.

template<class Viscosity , class SpecificHeat , class ThermalConductivity >

libMesh::UniquePtr<ThermoPressureFEVariable> GRINS::LowMachNavierStokesBase< Viscosity, SpecificHeat, ThermalConductivity >::_p0_var

protected

Definition at line 102 of file low_mach_navier_stokes_base.h.

Referenced by GRINS::LowMachNavierStokesBase< Viscosity, SpecificHeat, ThermalConductivity >::LowMachNavierStokesBase().

template<class Viscosity , class SpecificHeat , class ThermalConductivity >

PressureFEVariable GRINS::LowMachNavierStokesBase< Viscosity, SpecificHeat, ThermalConductivity >::_press_var

protected

Definition at line 99 of file low_mach_navier_stokes_base.h.

template<class Viscosity , class SpecificHeat , class ThermalConductivity >

libMesh::Number GRINS::LowMachNavierStokesBase< Viscosity, SpecificHeat, ThermalConductivity >::_R

protected

Definition at line 93 of file low_mach_navier_stokes_base.h.

template<class Viscosity , class SpecificHeat , class ThermalConductivity >

libMesh::Number GRINS::LowMachNavierStokesBase< Viscosity, SpecificHeat, ThermalConductivity >::_T0

protected

Definition at line 93 of file low_mach_navier_stokes_base.h.

template<class Viscosity , class SpecificHeat , class ThermalConductivity >

PrimitiveTempFEVariables GRINS::LowMachNavierStokesBase< Viscosity, SpecificHeat, ThermalConductivity >::_temp_vars

protected

Definition at line 100 of file low_mach_navier_stokes_base.h.

The documentation for this class was generated from the following files:

src/physics/include/grins/low_mach_navier_stokes_base.h
src/physics/src/low_mach_navier_stokes_base.C

Public Member Functions

Protected Attributes

Private Member Functions

Additional Inherited Members

Detailed Description

template<class Viscosity, class SpecificHeat, class ThermalConductivity> class GRINS::LowMachNavierStokesBase< Viscosity, SpecificHeat, ThermalConductivity >

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<class Viscosity, class SpecificHeat, class ThermalConductivity>
class GRINS::LowMachNavierStokesBase< Viscosity, SpecificHeat, ThermalConductivity >
