GRINS::HeatTransferAdjointStabilization< Conductivity > Class Template Reference

Adds VMS-based stabilization to LowMachNavierStokes physics class. More...

#include <heat_transfer_adjoint_stab.h>

Inheritance diagram for GRINS::HeatTransferAdjointStabilization< Conductivity >:
Inheritance graph
[legend]

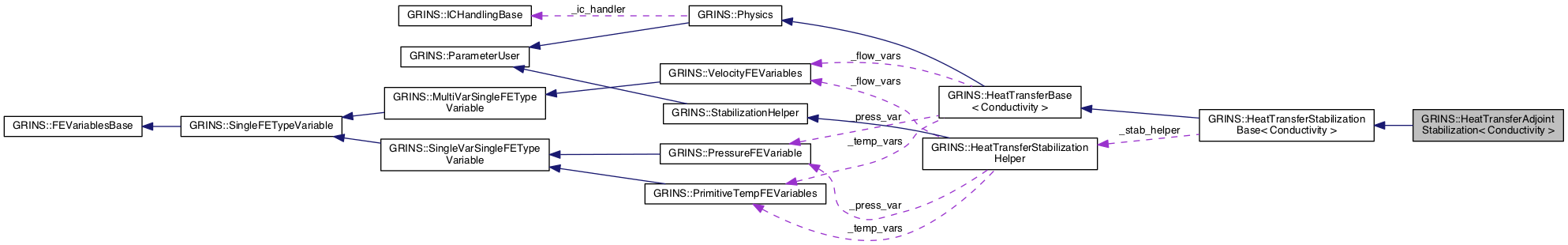

Collaboration diagram for GRINS::HeatTransferAdjointStabilization< Conductivity >:
Collaboration graph
[legend]

Public Member Functions

 HeatTransferAdjointStabilization (const GRINS::PhysicsName &physics_name, const GetPot &input)

virtual ~HeatTransferAdjointStabilization ()

virtual void element_time_derivative (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
 Time dependent part(s) of physics for element interiors. More...

virtual void mass_residual (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
 Mass matrix part(s) for element interiors. All boundary terms lie within the time_derivative part. More...

- Public Member Functions inherited from GRINS::HeatTransferStabilizationBase< Conductivity >
 HeatTransferStabilizationBase (const GRINS::PhysicsName &physics_name, const GetPot &input)

virtual ~HeatTransferStabilizationBase ()

virtual void init_context (AssemblyContext &context)
 Initialize context for added physics variables. More...

- Public Member Functions inherited from GRINS::HeatTransferBase< Conductivity >
 HeatTransferBase (const std::string &physics_name, const std::string &core_physics_name, const GetPot &input)

 ~HeatTransferBase ()

virtual void init_variables (libMesh::FEMSystem *system)
 Initialization Heat Transfer variables. More...

virtual void set_time_evolving_vars (libMesh::FEMSystem *system)
 Sets velocity variables to be time-evolving. More...

virtual void register_parameter (const std::string &param_name, libMesh::ParameterMultiAccessor< libMesh::Number > &param_pointer) const
 Each subclass will register its copy of an independent. More...

- Public Member Functions inherited from GRINS::Physics
 Physics (const GRINS::PhysicsName &physics_name, const GetPot &input)

virtual ~Physics ()

virtual bool enabled_on_elem (const libMesh::Elem *elem)
 Find if current physics is active on supplied element. More...

void set_is_steady (bool is_steady)
 Sets whether this physics is to be solved with a steady solver or not. More...

bool is_steady () const
 Returns whether or not this physics is being solved with a steady solver. More...

virtual void auxiliary_init (MultiphysicsSystem &system)
 Any auxillary initialization a Physics class may need. More...

virtual void register_postprocessing_vars (const GetPot &input, PostProcessedQuantities< libMesh::Real > &postprocessing)
 Register name of postprocessed quantity with PostProcessedQuantities. More...

virtual void side_time_derivative (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
 Time dependent part(s) of physics for boundaries of elements on the domain boundary. More...

virtual void nonlocal_time_derivative (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
 Time dependent part(s) of physics for scalar variables. More...

virtual void element_constraint (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
 Constraint part(s) of physics for element interiors. More...

virtual void side_constraint (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
 Constraint part(s) of physics for boundaries of elements on the domain boundary. More...

virtual void nonlocal_constraint (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
 Constraint part(s) of physics for scalar variables. More...

virtual void damping_residual (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
 Damping matrix part(s) for element interiors. All boundary terms lie within the time_derivative part. More...

virtual void nonlocal_mass_residual (bool compute_jacobian, AssemblyContext &context, CachedValues &cache)
 Mass matrix part(s) for scalar variables. More...

void init_ics (libMesh::FEMSystem *system, libMesh::CompositeFunction< libMesh::Number > &all_ics)

virtual void compute_element_time_derivative_cache (const AssemblyContext &context, CachedValues &cache)

virtual void compute_side_time_derivative_cache (const AssemblyContext &context, CachedValues &cache)

virtual void compute_nonlocal_time_derivative_cache (const AssemblyContext &context, CachedValues &cache)

virtual void compute_element_constraint_cache (const AssemblyContext &context, CachedValues &cache)

virtual void compute_side_constraint_cache (const AssemblyContext &context, CachedValues &cache)

virtual void compute_nonlocal_constraint_cache (const AssemblyContext &context, CachedValues &cache)

virtual void compute_damping_residual_cache (const AssemblyContext &context, CachedValues &cache)

virtual void compute_mass_residual_cache (const AssemblyContext &context, CachedValues &cache)

virtual void compute_nonlocal_mass_residual_cache (const AssemblyContext &context, CachedValues &cache)

virtual void compute_postprocessed_quantity (unsigned int quantity_index, const AssemblyContext &context, const libMesh::Point &point, libMesh::Real &value)

ICHandlingBase * get_ic_handler ()

- Public Member Functions inherited from GRINS::ParameterUser
 ParameterUser (const std::string &user_name)

virtual ~ParameterUser ()

virtual void set_parameter (libMesh::Number &param_variable, const GetPot &input, const std::string &param_name, libMesh::Number param_default)
 Each subclass can simultaneously read a parameter value from. More...

virtual void set_parameter (libMesh::ParsedFunction< libMesh::Number, libMesh::Gradient > &func, const GetPot &input, const std::string &func_param_name, const std::string &param_default)
 Each subclass can simultaneously read a parsed function from. More...

virtual void set_parameter (libMesh::ParsedFEMFunction< libMesh::Number > &func, const GetPot &input, const std::string &func_param_name, const std::string &param_default)
 Each subclass can simultaneously read a parsed function from. More...

virtual void move_parameter (const libMesh::Number &old_parameter, libMesh::Number &new_parameter)
 When cloning an object, we need to update parameter pointers. More...

virtual void move_parameter (const libMesh::ParsedFunction< libMesh::Number, libMesh::Gradient > &old_func, libMesh::ParsedFunction< libMesh::Number, libMesh::Gradient > &new_func)
 When cloning an object, we need to update parameter pointers. More...

virtual void move_parameter (const libMesh::ParsedFEMFunction< libMesh::Number > &old_func, libMesh::ParsedFEMFunction< libMesh::Number > &new_func)
 When cloning an object, we need to update parameter pointers. More...


Private Member Functions

 HeatTransferAdjointStabilization ()


Additional Inherited Members

- Static Public Member Functions inherited from GRINS::Physics
static void set_is_axisymmetric (bool is_axisymmetric)
 Set whether we should treat the problem as axisymmetric. More...

static bool is_axisymmetric ()

- Static Public Attributes inherited from GRINS::ParameterUser
static std::string zero_vector_function = std::string("{0}")
 A parseable function string with LIBMESH_DIM components, all 0. More...

- Protected Member Functions inherited from GRINS::Physics
libMesh::UniquePtr< libMesh::FEGenericBase< libMesh::Real > > build_new_fe (const libMesh::Elem *elem, const libMesh::FEGenericBase< libMesh::Real > *fe, const libMesh::Point p)

void parse_enabled_subdomains (const GetPot &input, const std::string &physics_name)

- Protected Attributes inherited from GRINS::HeatTransferStabilizationBase< Conductivity >
HeatTransferStabilizationHelper _stab_helper

- Protected Attributes inherited from GRINS::HeatTransferBase< Conductivity >
unsigned int _dim
 Physical dimension of problem. More...

VelocityFEVariables _flow_vars

PressureFEVariable _press_var

PrimitiveTempFEVariables _temp_vars

libMesh::Number _rho
 Material parameters, read from input. More...

libMesh::Number _Cp

Conductivity _k
 Conductivity. More...

- Protected Attributes inherited from GRINS::Physics
const PhysicsName _physics_name
 Name of the physics object. Used for reading physics specific inputs. More...

GRINS::ICHandlingBase * _ic_handler

std::set< libMesh::subdomain_id_type > _enabled_subdomains
 Subdomains on which the current Physics class is enabled. More...

- Static Protected Attributes inherited from GRINS::Physics
static bool _is_steady = false
 Caches whether or not the solver that's being used is steady or not. More...

static bool _is_axisymmetric = false
 Caches whether we are solving an axisymmetric problem or not. More...


Detailed Description

template<class Conductivity>
class GRINS::HeatTransferAdjointStabilization< Conductivity >

Adds VMS-based stabilization to LowMachNavierStokes physics class.

Definition at line 36 of file heat_transfer_adjoint_stab.h.

Constructor & Destructor Documentation

template<class K >
GRINS::HeatTransferAdjointStabilization< K >::HeatTransferAdjointStabilization ( const GRINS::PhysicsName &  physics_name,
const GetPot &  input
)

Definition at line 38 of file heat_transfer_adjoint_stab.C.

40  : HeatTransferStabilizationBase<K>(physics_name,input)
41  {
42  return;
43  }
template<class K >
GRINS::HeatTransferAdjointStabilization< K >::~HeatTransferAdjointStabilization ( )
virtual

Definition at line 46 of file heat_transfer_adjoint_stab.C.

47  {
48  return;
49  }
template<class Conductivity >
GRINS::HeatTransferAdjointStabilization< Conductivity >::HeatTransferAdjointStabilization ( )
private

Member Function Documentation

template<class K >
void GRINS::HeatTransferAdjointStabilization< K >::element_time_derivative ( bool  compute_jacobian,
AssemblyContext &  context,
CachedValues &  cache
)
virtual

Time dependent part(s) of physics for element interiors.

Reimplemented from GRINS::Physics.

Definition at line 52 of file heat_transfer_adjoint_stab.C.

55  {
56 #ifdef GRINS_USE_GRVY_TIMERS
57  this->_timer->BeginTimer("HeatTransferAdjointStabilization::element_time_derivative");
58 #endif
59
60  // The number of local degrees of freedom in each variable.
61  const unsigned int n_T_dofs = context.get_dof_indices(this->_temp_vars.T()).size();
62  const unsigned int n_u_dofs = context.get_dof_indices(this->_flow_vars.u()).size();
63
64  // Element Jacobian * quadrature weights for interior integration.
65  const std::vector<libMesh::Real> &JxW =
66  context.get_element_fe(this->_temp_vars.T())->get_JxW();
67
68  const std::vector<std::vector<libMesh::Real> >& u_phi =
69  context.get_element_fe(this->_flow_vars.u())->get_phi();
70
71  const std::vector<std::vector<libMesh::Real> >& T_phi =
72  context.get_element_fe(this->_temp_vars.T())->get_phi();
73
74  const std::vector<std::vector<libMesh::RealGradient> >& T_gradphi =
75  context.get_element_fe(this->_temp_vars.T())->get_dphi();
76
77  const std::vector<std::vector<libMesh::RealTensor> >& T_hessphi =
78  context.get_element_fe(this->_temp_vars.T())->get_d2phi();
79
80  /*
81  const unsigned int n_u_dofs = context.get_dof_indices(this->_flow_vars.u()).size();
82
83  const std::vector<std::vector<libMesh::Real> >& u_phi =
84  context.get_element_fe(this->_flow_vars.u())->get_phi();
85
86  libMesh::DenseSubVector<libMesh::Number> &Fu = context.get_elem_residual(this->_flow_vars.u()); // R_{p}
87  libMesh::DenseSubVector<libMesh::Number> &Fv = context.get_elem_residual(this->_flow_vars.v()); // R_{p}
88  libMesh::DenseSubVector<libMesh::Number> *Fw = NULL;
89  if(this->_dim == 3)
90  {
91  Fw = &context.get_elem_residual(this->_flow_vars.w()); // R_{w}
92  }
93  */
94
95  libMesh::DenseSubVector<libMesh::Number> &FT = context.get_elem_residual(this->_temp_vars.T()); // R_{T}
96  libMesh::DenseSubMatrix<libMesh::Number> &KTT =
97  context.get_elem_jacobian(this->_temp_vars.T(), this->_temp_vars.T()); // J_{TT}
98  libMesh::DenseSubMatrix<libMesh::Number> &KTu =
99  context.get_elem_jacobian(this->_temp_vars.T(), this->_flow_vars.u()); // J_{Tu}
100  libMesh::DenseSubMatrix<libMesh::Number> &KTv =
101  context.get_elem_jacobian(this->_temp_vars.T(), this->_flow_vars.v()); // J_{Tv}
102  libMesh::DenseSubMatrix<libMesh::Number> *KTw = NULL;
103
104  if(this->_dim == 3)
105  {
106  KTw = &context.get_elem_jacobian
107  (this->_temp_vars.T(), this->_flow_vars.w()); // J_{Tw}
108  }
109
110  unsigned int n_qpoints = context.get_element_qrule().n_points();
111
112  for (unsigned int qp=0; qp != n_qpoints; qp++)
113  {
114  libMesh::FEBase* fe = context.get_element_fe(this->_temp_vars.T());
115
116  libMesh::RealGradient g = this->_stab_helper.compute_g( fe, context, qp );
117  libMesh::RealTensor G = this->_stab_helper.compute_G( fe, context, qp );
118
119  libMesh::RealGradient U( context.interior_value( this->_flow_vars.u(), qp ),
120  context.interior_value( this->_flow_vars.v(), qp ) );
121  if( this->_dim == 3 )
122  {
123  U(2) = context.interior_value( this->_flow_vars.w(), qp );
124  }
125
126  //libMesh::RealGradient grad_T = context.interior_gradient( this->_temp_vars.T(), qp );
127
128  libMesh::Real tau_E, RE_s;
129  libMesh::Real d_tau_E_dT_rho, d_RE_s_dT;
130  libMesh::Gradient d_tau_E_dU, d_RE_s_dgradT, d_RE_s_dU;
131  libMesh::Tensor d_RE_s_dhessT;
132
133  // Compute the conductivity at this qp
134  libMesh::Real _k_qp = this->_k(context, qp);
135
136  if (compute_jacobian)
137  {
138  this->_stab_helper.compute_tau_energy_and_derivs
139  ( context, G, this->_rho, this->_Cp, _k_qp, U,
140  tau_E, d_tau_E_dT_rho, d_tau_E_dU, this->_is_steady );
141  this->_stab_helper.compute_res_energy_steady_and_derivs
142  ( context, qp, this->_rho, this->_Cp, _k_qp,
143  RE_s, d_RE_s_dT, d_RE_s_dgradT, d_RE_s_dhessT,
144  d_RE_s_dU );
145  }
146  else
147  {
148  tau_E = this->_stab_helper.compute_tau_energy
149  ( context, G, this->_rho, this->_Cp, _k_qp, U, this->_is_steady );
150
151  RE_s = this->_stab_helper.compute_res_energy_steady
152  ( context, qp, this->_rho, this->_Cp, _k_qp );
153  }
154
155  /*
156  for (unsigned int i=0; i != n_u_dofs; i++)
157  {
158  Fu(i) += -tau_E*RE_s*this->_rho*this->_Cp*u_phi[i][qp]*grad_T(0)*JxW[qp];
159  Fv(i) += -tau_E*RE_s*this->_rho*this->_Cp*u_phi[i][qp]*grad_T(1)*JxW[qp];
160  if( this->_dim == 3 )
161  {
162  (*Fw)(i) += -tau_E*RE_s*this->_rho*this->_Cp*u_phi[i][qp]*grad_T(2)*JxW[qp];
163  }
164  }
165  */
166
167  for (unsigned int i=0; i != n_T_dofs; i++)
168  {
169  FT(i) += -tau_E*RE_s*( this->_rho*this->_Cp*U*T_gradphi[i][qp]
170  + _k_qp*(T_hessphi[i][qp](0,0) + T_hessphi[i][qp](1,1) + T_hessphi[i][qp](2,2))
171  )*JxW[qp];
172  if (compute_jacobian)
173  {
174  for (unsigned int j=0; j != n_T_dofs; ++j)
175  {
176  KTT(i,j) += -tau_E*
177  (d_RE_s_dT*T_phi[j][qp] +
178  d_RE_s_dgradT*T_gradphi[j][qp] +
179  d_RE_s_dhessT.contract(T_hessphi[j][qp])
180  ) *
181  ( this->_rho*this->_Cp*U*T_gradphi[i][qp]
182  + _k_qp*(T_hessphi[i][qp](0,0) +
183  T_hessphi[i][qp](1,1) +
184  T_hessphi[i][qp](2,2))
185  )*JxW[qp]
186  * context.get_fixed_solution_derivative();
187  }
188  for (unsigned int j=0; j != n_u_dofs; ++j)
189  {
190  KTu(i,j) += -tau_E*RE_s*
191  ( this->_rho*this->_Cp*u_phi[j][qp]*T_gradphi[i][qp](0) )*JxW[qp]
192  * context.get_fixed_solution_derivative();
193  KTu(i,j) +=
194  -(tau_E*d_RE_s_dU(0)+d_tau_E_dU(0)*RE_s)*u_phi[j][qp]*
195  ( this->_rho*this->_Cp*U*T_gradphi[i][qp]
196  + _k_qp*(T_hessphi[i][qp](0,0) +
197  T_hessphi[i][qp](1,1) +
198  T_hessphi[i][qp](2,2))
199  )*JxW[qp]
200  * context.get_fixed_solution_derivative();
201  KTv(i,j) += -tau_E*RE_s*
202  ( this->_rho*this->_Cp*u_phi[j][qp]*T_gradphi[i][qp](1) )*JxW[qp]
203  * context.get_fixed_solution_derivative();
204  KTv(i,j) +=
205  -(tau_E*d_RE_s_dU(1)+d_tau_E_dU(1)*RE_s)*u_phi[j][qp]*
206  ( this->_rho*this->_Cp*U*T_gradphi[i][qp]
207  + _k_qp*(T_hessphi[i][qp](0,0) +
208  T_hessphi[i][qp](1,1) +
209  T_hessphi[i][qp](2,2))
210  )*JxW[qp]
211  * context.get_fixed_solution_derivative();
212  }
213  if(this->_dim == 3)
214  {
215  for (unsigned int j=0; j != n_u_dofs; ++j)
216  {
217  (*KTw)(i,j) += -tau_E*RE_s*
218  ( this->_rho*this->_Cp*u_phi[j][qp]*T_gradphi[i][qp](2) )*JxW[qp]
219  * context.get_fixed_solution_derivative();
220  (*KTw)(i,j) +=
221  -(tau_E*d_RE_s_dU(2)+d_tau_E_dU(2)*RE_s)*u_phi[j][qp]*
222  ( this->_rho*this->_Cp*U*T_gradphi[i][qp]
223  + _k_qp*(T_hessphi[i][qp](0,0) +
224  T_hessphi[i][qp](1,1) +
225  T_hessphi[i][qp](2,2))
226  )*JxW[qp]
227  * context.get_fixed_solution_derivative();
228  }
229  }
230  }
231  }
232  }
233
234 #ifdef GRINS_USE_GRVY_TIMERS
235  this->_timer->EndTimer("HeatTransferAdjointStabilization::element_time_derivative");
236 #endif
237  return;
238  }
GRINS::StabilizationHelper::compute_G
libMesh::RealTensor compute_G(libMesh::FEBase *fe, AssemblyContext &c, unsigned int qp) const
Definition: stab_helper.C:64
GRINS::HeatTransferStabilizationHelper::compute_res_energy_steady_and_derivs
void compute_res_energy_steady_and_derivs(AssemblyContext &context, unsigned int qp, const libMesh::Real rho, const libMesh::Real Cp, const libMesh::Real k, libMesh::Real &res, libMesh::Real &d_res_dT, libMesh::Gradient &d_res_dgradT, libMesh::Tensor &d_res_dhessT, libMesh::Gradient &d_res_dU) const
Definition: heat_transfer_stab_helper.C:92
GRINS::HeatTransferStabilizationHelper::compute_tau_energy_and_derivs
void compute_tau_energy_and_derivs(AssemblyContext &c, libMesh::RealTensor &G, libMesh::Real rho, libMesh::Real cp, libMesh::Real k, libMesh::Gradient U, libMesh::Real &tau_E, libMesh::Real &d_tau_E_d_rho, libMesh::Gradient &d_tau_E_d_U, bool is_steady) const
Definition: heat_transfer_stab_helper.h:136
GRINS::HeatTransferBase::_rho
libMesh::Number _rho
Material parameters, read from input.
Definition: heat_transfer_base.h:87
GRINS::StabilizationHelper::compute_g
libMesh::RealGradient compute_g(libMesh::FEBase *fe, AssemblyContext &c, unsigned int qp) const
Definition: stab_helper.C:47
GRINS::HeatTransferBase::_k
Conductivity _k
Conductivity.
Definition: heat_transfer_base.h:90
GRINS::HeatTransferStabilizationBase::_stab_helper
HeatTransferStabilizationHelper _stab_helper
Definition: heat_transfer_stab_base.h:50
GRINS::HeatTransferBase::_temp_vars
PrimitiveTempFEVariables _temp_vars
Definition: heat_transfer_base.h:80
GRINS::HeatTransferStabilizationHelper::compute_tau_energy
libMesh::Real compute_tau_energy(AssemblyContext &c, libMesh::RealTensor &G, libMesh::Real rho, libMesh::Real cp, libMesh::Real k, libMesh::Gradient U, bool is_steady) const
Definition: heat_transfer_stab_helper.h:117
GRINS::Physics::_is_steady
static bool _is_steady
Caches whether or not the solver that's being used is steady or not.
Definition: physics.h:277
GRINS::HeatTransferBase::_flow_vars
VelocityFEVariables _flow_vars
Definition: heat_transfer_base.h:78
GRINS::HeatTransferBase::_dim
unsigned int _dim
Physical dimension of problem.
Definition: heat_transfer_base.h:76
GRINS::HeatTransferStabilizationHelper::compute_res_energy_steady
libMesh::Real compute_res_energy_steady(AssemblyContext &context, unsigned int qp, const libMesh::Real rho, const libMesh::Real Cp, const libMesh::Real k) const
Definition: heat_transfer_stab_helper.C:74
template<class K >
void GRINS::HeatTransferAdjointStabilization< K >::mass_residual ( bool  compute_jacobian,
AssemblyContext &  context,
CachedValues &  cache
)
virtual

Mass matrix part(s) for element interiors. All boundary terms lie within the time_derivative part.

Reimplemented from GRINS::Physics.

Definition at line 241 of file heat_transfer_adjoint_stab.C.

244  {
245 #ifdef GRINS_USE_GRVY_TIMERS
246  this->_timer->BeginTimer("HeatTransferAdjointStabilization::mass_residual");
247 #endif
248
249  // The number of local degrees of freedom in each variable.
250  const unsigned int n_T_dofs = context.get_dof_indices(this->_temp_vars.T()).size();
251  const unsigned int n_u_dofs = context.get_dof_indices(this->_flow_vars.u()).size();
252
253  // Element Jacobian * quadrature weights for interior integration.
254  const std::vector<libMesh::Real> &JxW =
255  context.get_element_fe(this->_temp_vars.T())->get_JxW();
256
257  const std::vector<std::vector<libMesh::Real> >& u_phi =
258  context.get_element_fe(this->_flow_vars.u())->get_phi();
259
260  const std::vector<std::vector<libMesh::Real> >& T_phi =
261  context.get_element_fe(this->_temp_vars.T())->get_phi();
262
263  const std::vector<std::vector<libMesh::RealGradient> >& T_gradphi =
264  context.get_element_fe(this->_temp_vars.T())->get_dphi();
265
266  const std::vector<std::vector<libMesh::RealTensor> >& T_hessphi =
267  context.get_element_fe(this->_temp_vars.T())->get_d2phi();
268
269  /*
270  const unsigned int n_u_dofs = context.get_dof_indices(this->_flow_vars.u()).size();
271
272  const std::vector<std::vector<libMesh::Real> >& u_phi =
273  context.get_element_fe(this->_flow_vars.u())->get_phi();
274
275  libMesh::DenseSubVector<libMesh::Number> &Fu = context.get_elem_residual(this->_flow_vars.u()); // R_{p}
276  libMesh::DenseSubVector<libMesh::Number> &Fv = context.get_elem_residual(this->_flow_vars.v()); // R_{p}
277  libMesh::DenseSubVector<libMesh::Number> *Fw = NULL;
278  if(this->_dim == 3)
279  {
280  Fw = &context.get_elem_residual(this->_flow_vars.w()); // R_{w}
281  }
282  */
283
284  libMesh::DenseSubVector<libMesh::Number> &FT = context.get_elem_residual(this->_temp_vars.T()); // R_{T}
285  libMesh::DenseSubMatrix<libMesh::Number> &KTT =
286  context.get_elem_jacobian(this->_temp_vars.T(), this->_temp_vars.T()); // J_{TT}
287  libMesh::DenseSubMatrix<libMesh::Number> &KTu =
288  context.get_elem_jacobian(this->_temp_vars.T(), this->_flow_vars.u()); // J_{Tu}
289  libMesh::DenseSubMatrix<libMesh::Number> &KTv =
290  context.get_elem_jacobian(this->_temp_vars.T(), this->_flow_vars.v()); // J_{Tv}
291  libMesh::DenseSubMatrix<libMesh::Number> *KTw = NULL;
292
293  if(this->_dim == 3)
294  {
295  KTw = &context.get_elem_jacobian
296  (this->_temp_vars.T(), this->_flow_vars.w()); // J_{Tw}
297  }
298
299  unsigned int n_qpoints = context.get_element_qrule().n_points();
300
301  for (unsigned int qp=0; qp != n_qpoints; qp++)
302  {
303  libMesh::FEBase* fe = context.get_element_fe(this->_temp_vars.T());
304
305  libMesh::RealGradient g = this->_stab_helper.compute_g( fe, context, qp );
306  libMesh::RealTensor G = this->_stab_helper.compute_G( fe, context, qp );
307
308  libMesh::RealGradient U( context.fixed_interior_value( this->_flow_vars.u(), qp ),
309  context.fixed_interior_value( this->_flow_vars.v(), qp ) );
310  if( this->_dim == 3 )
311  U(2) = context.fixed_interior_value( this->_flow_vars.w(), qp );
312
313  //libMesh::RealGradient grad_T = context.fixed_interior_gradient( this->_temp_vars.T(), qp );
314
315  libMesh::Real tau_E, RE_t;
316  libMesh::Real d_tau_E_d_rho, d_RE_t_dT;
317  libMesh::Gradient d_tau_E_dU;
318
319  // Compute the conductivity at this qp
320  libMesh::Real _k_qp = this->_k(context, qp);
321
322  if (compute_jacobian)
323  {
324  this->_stab_helper.compute_tau_energy_and_derivs
325  ( context, G, this->_rho, this->_Cp, _k_qp, U,
326  tau_E, d_tau_E_d_rho, d_tau_E_dU, false );
327  this->_stab_helper.compute_res_energy_transient_and_derivs
328  ( context, qp, this->_rho, this->_Cp,
329  RE_t, d_RE_t_dT );
330  }
331  else
332  {
333  tau_E = this->_stab_helper.compute_tau_energy
334  ( context, G, this->_rho, this->_Cp, _k_qp, U, false );
335
336  RE_t = this->_stab_helper.compute_res_energy_transient
337  ( context, qp, this->_rho, this->_Cp );
338  }
339
340
341  /*
342  for (unsigned int i=0; i != n_u_dofs; i++)
343  {
344  Fu(i) += -tau_E*RE_t*this->_rho*this->_Cp*u_phi[i][qp]*grad_T(0)*JxW[qp];
345  Fv(i) += -tau_E*RE_t*this->_rho*this->_Cp*u_phi[i][qp]*grad_T(1)*JxW[qp];
346  if( this->_dim == 3 )
347  {
348  (*Fw)(i) += -tau_E*RE_t*this->_rho*this->_Cp*u_phi[i][qp]*grad_T(2)*JxW[qp];
349  }
350  }
351  */
352
353  for (unsigned int i=0; i != n_T_dofs; i++)
354  {
355  FT(i) -= tau_E*RE_t*( this->_rho*this->_Cp*U*T_gradphi[i][qp]
356  + _k_qp*(T_hessphi[i][qp](0,0) + T_hessphi[i][qp](1,1) + T_hessphi[i][qp](2,2))
357  )*JxW[qp];
358  if (compute_jacobian)
359  {
360  const libMesh::Real fixed_deriv =
361  context.get_fixed_solution_derivative();
362
363  for (unsigned int j=0; j != n_T_dofs; ++j)
364  {
365  KTT(i,j) -=
366  (tau_E*d_RE_t_dT)*T_phi[j][qp]*
367  ( this->_rho*this->_Cp*U*T_gradphi[i][qp]
368  + _k_qp*(T_hessphi[i][qp](0,0) +
369  T_hessphi[i][qp](1,1) +
370  T_hessphi[i][qp](2,2))
371  )*JxW[qp];
372  }
373  for (unsigned int j=0; j != n_u_dofs; ++j)
374  {
375  KTu(i,j) -=
376  d_tau_E_dU(0)*u_phi[j][qp]*RE_t*
377  ( this->_rho*this->_Cp*U*T_gradphi[i][qp]
378  + _k_qp*(T_hessphi[i][qp](0,0) +
379  T_hessphi[i][qp](1,1) +
380  T_hessphi[i][qp](2,2))
381  )*fixed_deriv*JxW[qp];
382  KTu(i,j) -=
383  tau_E*RE_t*
384  ( this->_rho*this->_Cp*u_phi[j][qp]*T_gradphi[i][qp](0)*fixed_deriv
385  )*JxW[qp];
386  KTv(i,j) -=
387  d_tau_E_dU(1)*u_phi[j][qp]*RE_t*
388  ( this->_rho*this->_Cp*U*T_gradphi[i][qp]
389  + _k_qp*(T_hessphi[i][qp](0,0) +
390  T_hessphi[i][qp](1,1) +
391  T_hessphi[i][qp](2,2))
392  )*fixed_deriv*JxW[qp];
393  KTv(i,j) -=
394  tau_E*RE_t*
395  ( this->_rho*this->_Cp*u_phi[j][qp]*T_gradphi[i][qp](1)*fixed_deriv
396  )*JxW[qp];
397  }
398  if(this->_dim == 3)
399  {
400  for (unsigned int j=0; j != n_u_dofs; ++j)
401  {
402  (*KTw)(i,j) -=
403  d_tau_E_dU(2)*u_phi[j][qp]*RE_t*
404  ( this->_rho*this->_Cp*U*T_gradphi[i][qp]
405  + _k_qp*(T_hessphi[i][qp](0,0) +
406  T_hessphi[i][qp](1,1) +
407  T_hessphi[i][qp](2,2))
408  )*fixed_deriv*JxW[qp];
409  (*KTw)(i,j) -=
410  tau_E*RE_t*
411  ( this->_rho*this->_Cp*u_phi[j][qp]*T_gradphi[i][qp](2)*fixed_deriv
412  )*JxW[qp];
413  }
414  }
415  }
416  }
417
418  }
419
420 #ifdef GRINS_USE_GRVY_TIMERS
421  this->_timer->EndTimer("HeatTransferAdjointStabilization::mass_residual");
422 #endif
423  return;
424  }
GRINS::HeatTransferStabilizationHelper::compute_res_energy_transient
libMesh::Real compute_res_energy_transient(AssemblyContext &context, unsigned int qp, const libMesh::Real rho, const libMesh::Real Cp) const
Definition: heat_transfer_stab_helper.C:123
GRINS::HeatTransferStabilizationHelper::compute_res_energy_transient_and_derivs
void compute_res_energy_transient_and_derivs(AssemblyContext &context, unsigned int qp, const libMesh::Real rho, const libMesh::Real Cp, libMesh::Real &res, libMesh::Real &d_res_dTdot) const
Definition: heat_transfer_stab_helper.C:136
GRINS::StabilizationHelper::compute_G
libMesh::RealTensor compute_G(libMesh::FEBase *fe, AssemblyContext &c, unsigned int qp) const
Definition: stab_helper.C:64
GRINS::HeatTransferStabilizationHelper::compute_tau_energy_and_derivs
void compute_tau_energy_and_derivs(AssemblyContext &c, libMesh::RealTensor &G, libMesh::Real rho, libMesh::Real cp, libMesh::Real k, libMesh::Gradient U, libMesh::Real &tau_E, libMesh::Real &d_tau_E_d_rho, libMesh::Gradient &d_tau_E_d_U, bool is_steady) const
Definition: heat_transfer_stab_helper.h:136
GRINS::HeatTransferBase::_rho
libMesh::Number _rho
Material parameters, read from input.
Definition: heat_transfer_base.h:87
GRINS::StabilizationHelper::compute_g
libMesh::RealGradient compute_g(libMesh::FEBase *fe, AssemblyContext &c, unsigned int qp) const
Definition: stab_helper.C:47
GRINS::HeatTransferBase::_k
Conductivity _k
Conductivity.
Definition: heat_transfer_base.h:90
GRINS::HeatTransferStabilizationBase::_stab_helper
HeatTransferStabilizationHelper _stab_helper
Definition: heat_transfer_stab_base.h:50
GRINS::HeatTransferBase::_temp_vars
PrimitiveTempFEVariables _temp_vars
Definition: heat_transfer_base.h:80
GRINS::HeatTransferStabilizationHelper::compute_tau_energy
libMesh::Real compute_tau_energy(AssemblyContext &c, libMesh::RealTensor &G, libMesh::Real rho, libMesh::Real cp, libMesh::Real k, libMesh::Gradient U, bool is_steady) const
Definition: heat_transfer_stab_helper.h:117
GRINS::HeatTransferBase::_flow_vars
VelocityFEVariables _flow_vars
Definition: heat_transfer_base.h:78
GRINS::HeatTransferBase::_dim
unsigned int _dim
Physical dimension of problem.
Definition: heat_transfer_base.h:76
The documentation for this class was generated from the following files:
Generated on Thu Jun 2 2016 21:52:31 for GRINS-0.7.0 by  doxygen 1.8.10
