#include <catalytic_wall_base.h>

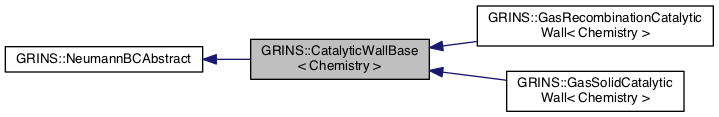

Inheritance diagram for GRINS::CatalyticWallBase< Chemistry >:

Collaboration diagram for GRINS::CatalyticWallBase< Chemistry >:

Public Member Functions
	CatalyticWallBase (SharedPtr< Chemistry > &chem, SharedPtr< CatalycityBase > &gamma, const std::vector< VariableIndex > &species_vars, VariableIndex T_var, libMesh::Real p0, unsigned int reactant_species_idx)

	CatalyticWallBase (const Chemistry &chem_mixture, CatalycityBase &gamma, const unsigned int reactant_species_idx)
	Deprecated. More...

virtual	~CatalyticWallBase ()

virtual void	apply_fluxes (AssemblyContext &context, const CachedValues &cache, const bool request_jacobian)=0
	Deprecated. More...

virtual void	init (const libMesh::FEMSystem &)

libMesh::Real	rho (libMesh::Real T, libMesh::Real p0, libMesh::Real R_mix) const

libMesh::Real	omega_dot (const libMesh::Real rho_s, const libMesh::Real T) const
	$\rho_s \gamma \sqrt{ \frac{R_s T}{2\pi} }$ More...

libMesh::Real	domega_dot_dws (const libMesh::Real rho_s, const libMesh::Real w_s, const libMesh::Real T, const libMesh::Real R) const

libMesh::Real	domega_dot_dT (const libMesh::Real rho_s, const libMesh::Real T) const

void	set_catalycity_params (const std::vector< libMesh::Real > &params)

Public Member Functions inherited from GRINS::NeumannBCAbstract
	NeumannBCAbstract ()

virtual	~NeumannBCAbstract ()

virtual bool	eval_flux (bool compute_jacobian, AssemblyContext &context, libMesh::Real sign, bool is_axisymmetric)=0

Protected Member Functions
libMesh::Real	eval_gamma (libMesh::Real T) const
	Temporary helper to deal with intermediate refactoring. More...

libMesh::Real	eval_gamma_dT (libMesh::Real T) const
	Temporary helper to deal with intermediate refactoring. More...

Protected Attributes
SharedPtr< Chemistry >	_chem_ptr

const Chemistry &	_chemistry
	Deprecated. More...

SharedPtr< CatalycityBase >	_gamma_ptr

libMesh::UniquePtr< CatalycityBase >	_gamma_s
	Deprecated. More...

const libMesh::Real	_C
	$\sqrt{ \frac{R_s}{2\pi} }$ More...

std::vector< VariableIndex >	_species_vars

VariableIndex	_T_var

libMesh::Real	_p0
	Thermodynamic pressure. More...

Detailed Description

template<typename Chemistry>
class GRINS::CatalyticWallBase< Chemistry >

Definition at line 50 of file catalytic_wall_base.h.

Constructor & Destructor Documentation

template<typename Chemistry >

GRINS::CatalyticWallBase< Chemistry >::CatalyticWallBase	(	SharedPtr< Chemistry > &	chem,
		SharedPtr< CatalycityBase > &	gamma,
		const std::vector< VariableIndex > &	species_vars,
		VariableIndex	T_var,
		libMesh::Real	p0,
		unsigned int	reactant_species_idx
	)

Definition at line 39 of file catalytic_wall_base.C.

   : _chem_ptr(chem),
     _chemistry(*(chem.get())),// This will be removed after NeumannBC refactoring
     _gamma_ptr(gamma),
     _C( std::sqrt( chem->R(reactant_species_idx)/(GRINS::Constants::two_pi) ) ),
     _species_vars(species_vars),
     _T_var(T_var),
     _p0(p0)
   {}

template<typename Chemistry >

GRINS::CatalyticWallBase< Chemistry >::CatalyticWallBase	(	const Chemistry &	chem_mixture,
		CatalycityBase &	gamma,
		const unsigned int	reactant_species_idx
	)

Deprecated.

Definition at line 55 of file catalytic_wall_base.C.

     : _chemistry(chemistry),
       _gamma_s( gamma.clone() ),
       _C( std::sqrt( chemistry.R(reactant_species_idx)/(GRINS::Constants::two_pi) ) )
   {}

template<typename Chemistry >

virtual GRINS::CatalyticWallBase< Chemistry >::~CatalyticWallBase ( )

inlinevirtual

Definition at line 66 of file catalytic_wall_base.h.

66 {};

Member Function Documentation

template<typename Chemistry >

virtual void GRINS::CatalyticWallBase< Chemistry >::apply_fluxes	(	AssemblyContext &	context,
		const CachedValues &	cache,
		const bool	request_jacobian
	)

pure virtual

Deprecated.

Implemented in GRINS::GasSolidCatalyticWall< Chemistry >, and GRINS::GasRecombinationCatalyticWall< Chemistry >.

template<typename Chemistry >

libMesh::Real GRINS::CatalyticWallBase< Chemistry >::domega_dot_dT	(	const libMesh::Real	rho_s,
		const libMesh::Real	T
	)		const

inline

Definition at line 179 of file catalytic_wall_base.h.

Referenced by test().

   {
     libMesh::Real sqrtT = std::sqrt(T);

     return rho_s*_C*( 0.5/sqrtT*this->eval_gamma(T) + sqrtT*this->eval_gamma_dT(T) );
   }

template<typename Chemistry >

libMesh::Real GRINS::CatalyticWallBase< Chemistry >::domega_dot_dws	(	const libMesh::Real	rho_s,
		const libMesh::Real	w_s,
		const libMesh::Real	T,
		const libMesh::Real	R
	)		const

inline

Definition at line 171 of file catalytic_wall_base.h.

Referenced by test().

   {
     return (1.0/w_s - rho_s/R)*(this->omega_dot( rho_s, T ));
   }

template<typename Chemistry >

libMesh::Real GRINS::CatalyticWallBase< Chemistry >::eval_gamma ( libMesh::Real T ) const

inlineprotected

Temporary helper to deal with intermediate refactoring.

Definition at line 132 of file catalytic_wall_base.h.

   {
     libMesh::Real value;

     if(_gamma_s)
       value = (*_gamma_s)(T);
     else if(_gamma_ptr)
       value = (*_gamma_ptr)(T);
     else
       libmesh_error();

     return value;
   }

template<typename Chemistry >

libMesh::Real GRINS::CatalyticWallBase< Chemistry >::eval_gamma_dT ( libMesh::Real T ) const

inlineprotected

Temporary helper to deal with intermediate refactoring.

Definition at line 148 of file catalytic_wall_base.h.

   {
     libMesh::Real value;

     if(_gamma_s)
       value = (*_gamma_s).dT(T);
     else if(_gamma_ptr)
       value = (*_gamma_ptr).dT(T);
     else
       libmesh_error();

     return value;
   }

template<typename Chemistry >

virtual void GRINS::CatalyticWallBase< Chemistry >::init ( const libMesh::FEMSystem & )

inlinevirtual

Reimplemented in GRINS::GasSolidCatalyticWall< Chemistry >, and GRINS::GasRecombinationCatalyticWall< Chemistry >.

Definition at line 73 of file catalytic_wall_base.h.

73 {};

template<typename Chemistry >

libMesh::Real GRINS::CatalyticWallBase< Chemistry >::omega_dot	(	const libMesh::Real	rho_s,
		const libMesh::Real	T
	)		const

inline

$\rho_s \gamma \sqrt{ \frac{R_s T}{2\pi} }$

Definition at line 164 of file catalytic_wall_base.h.

Referenced by test().

   {
     return rho_s*this->eval_gamma(T)*_C*std::sqrt(T);
   }

template<typename Chemistry >

libMesh::Real GRINS::CatalyticWallBase< Chemistry >::rho	(	libMesh::Real	T,
		libMesh::Real	p0,
		libMesh::Real	R_mix
	)		const

inline

Definition at line 125 of file catalytic_wall_base.h.

   {
     return p0/(R_mix*T);
   }

template<typename Chemistry >

void GRINS::CatalyticWallBase< Chemistry >::set_catalycity_params ( const std::vector< libMesh::Real > & params )

Definition at line 64 of file catalytic_wall_base.C.

   {
     if(_gamma_s)
       {
         libmesh_deprecated();
         _gamma_s->set_params( params );
       }
     else if( _gamma_ptr)
       _gamma_ptr->set_params( params );
     else
       libmesh_error();
   }

Member Data Documentation

template<typename Chemistry >

const libMesh::Real GRINS::CatalyticWallBase< Chemistry >::_C

protected

$\sqrt{ \frac{R_s}{2\pi} }$

Definition at line 106 of file catalytic_wall_base.h.

template<typename Chemistry >

SharedPtr<Chemistry> GRINS::CatalyticWallBase< Chemistry >::_chem_ptr

protected

Definition at line 95 of file catalytic_wall_base.h.

template<typename Chemistry >

const Chemistry& GRINS::CatalyticWallBase< Chemistry >::_chemistry

protected

Deprecated.

Definition at line 98 of file catalytic_wall_base.h.

template<typename Chemistry >

SharedPtr<CatalycityBase> GRINS::CatalyticWallBase< Chemistry >::_gamma_ptr

protected

Definition at line 100 of file catalytic_wall_base.h.

template<typename Chemistry >

libMesh::UniquePtr<CatalycityBase> GRINS::CatalyticWallBase< Chemistry >::_gamma_s

protected

Deprecated.

Definition at line 103 of file catalytic_wall_base.h.

template<typename Chemistry >

libMesh::Real GRINS::CatalyticWallBase< Chemistry >::_p0

protected

Thermodynamic pressure.

Currently, we assume that the thermodynamic pressure is constant. This is not true in cavity type systems.

Todo:: make const

Definition at line 119 of file catalytic_wall_base.h.

template<typename Chemistry >

std::vector<VariableIndex> GRINS::CatalyticWallBase< Chemistry >::_species_vars

protected

Todo:: make const

Definition at line 109 of file catalytic_wall_base.h.

template<typename Chemistry >

VariableIndex GRINS::CatalyticWallBase< Chemistry >::_T_var

protected

Todo:: make const

Definition at line 112 of file catalytic_wall_base.h.

The documentation for this class was generated from the following files:

src/boundary_conditions/include/grins/catalytic_wall_base.h
src/boundary_conditions/src/catalytic_wall_base.C
