Wrapper class for storing state for computing Wilke transport properties using Antioch. More...

#include <antioch_mixture_averaged_transport_mixture.h>

Inheritance diagram for GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >:

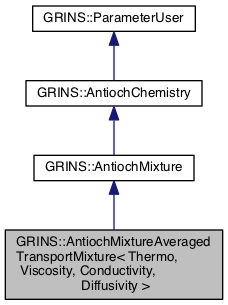

Collaboration diagram for GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >:

[legend]

Public Types
typedef AntiochChemistry	ChemistryParent

Public Member Functions
	AntiochMixtureAveragedTransportMixture (const GetPot &input, const std::string &material)

virtual	~AntiochMixtureAveragedTransportMixture ()

const Antioch::MixtureAveragedTransportMixture< libMesh::Real > &	wilke_mixture () const

const Antioch::MixtureViscosity< Viscosity, libMesh::Real > &	viscosity () const

const Antioch::MixtureConductivity< Conductivity, libMesh::Real > &	conductivity () const

const Antioch::MixtureDiffusion< Diffusivity, libMesh::Real > &	diffusivity () const

Public Member Functions inherited from GRINS::AntiochMixture
	AntiochMixture (const GetPot &input, const std::string &material)

virtual	~AntiochMixture ()

virtual void	register_parameter (const std::string &param_name, libMesh::ParameterMultiAccessor< libMesh::Number > &param_pointer) const
	Each subclass will register its copy of an independent. More...

const Antioch::ReactionSet< libMesh::Real > &	reaction_set () const

const Antioch::CEAThermoMixture< libMesh::Real > &	cea_mixture () const

libMesh::Real	h_stat_mech_ref_correction (unsigned int species) const

Public Member Functions inherited from GRINS::AntiochChemistry
	AntiochChemistry (const GetPot &input, const std::string &material)

virtual	~AntiochChemistry ()

libMesh::Real	M (unsigned int species) const
	Species molar mass (molecular weight), [kg/mol]. More...

libMesh::Real	M_mix (const std::vector< libMesh::Real > &mass_fractions) const
	Mixture molar mass (molecular weight), [kg/mol]. More...

libMesh::Real	R (unsigned int species) const
	Species gas constant, [J/kg-K]. More...

libMesh::Real	R_mix (const std::vector< libMesh::Real > &mass_fractions) const
	Mixture gas constant, [J/kg-K]. More...

libMesh::Real	X (unsigned int species, libMesh::Real M, libMesh::Real mass_fraction) const
	Species mole fraction, unitless. More...

void	X (libMesh::Real M, const std::vector< libMesh::Real > &mass_fractions, std::vector< libMesh::Real > &mole_fractions) const
	Mole fraction for all species, unitless. More...

libMesh::Real	molar_density (const unsigned int species, const libMesh::Real rho, const libMesh::Real mass_fraction) const
	Species molar density, [mol/m^3]. More...

void	molar_densities (const libMesh::Real rho, const std::vector< libMesh::Real > &mass_fractions, std::vector< libMesh::Real > &molar_densities) const
	Molar density for all species, [mol/m^3]. More...

unsigned int	n_species () const

unsigned int	species_index (const std::string &species_name) const

std::string	species_name (unsigned int species_index) const

const Antioch::ChemicalMixture< libMesh::Real > &	chemical_mixture () const
	Accessor to underlying Antioch object. More...

const AntiochChemistry &	chemistry () const
	Accessor for this class. More...

Public Member Functions inherited from GRINS::ParameterUser
	ParameterUser (const std::string &user_name)

virtual	~ParameterUser ()

virtual void	set_parameter (libMesh::Number &param_variable, const GetPot &input, const std::string &param_name, libMesh::Number param_default)
	Each subclass can simultaneously read a parameter value from. More...

virtual void	set_parameter (libMesh::ParsedFunction< libMesh::Number, libMesh::Gradient > &func, const GetPot &input, const std::string &func_param_name, const std::string &param_default)
	Each subclass can simultaneously read a parsed function from. More...

virtual void	set_parameter (libMesh::ParsedFEMFunction< libMesh::Number > &func, const GetPot &input, const std::string &func_param_name, const std::string &param_default)
	Each subclass can simultaneously read a parsed function from. More...

virtual void	move_parameter (const libMesh::Number &old_parameter, libMesh::Number &new_parameter)
	When cloning an object, we need to update parameter pointers. More...

virtual void	move_parameter (const libMesh::ParsedFunction< libMesh::Number, libMesh::Gradient > &old_func, libMesh::ParsedFunction< libMesh::Number, libMesh::Gradient > &new_func)
	When cloning an object, we need to update parameter pointers. More...

virtual void	move_parameter (const libMesh::ParsedFEMFunction< libMesh::Number > &old_func, libMesh::ParsedFEMFunction< libMesh::Number > &new_func)
	When cloning an object, we need to update parameter pointers. More...

Protected Member Functions
void	build_thermo (const GetPot &input)

void	build_viscosity (const GetPot &input, const std::string &material)

void	build_conductivity (const GetPot &input)

void	build_diffusivity (const GetPot &input, const std::string &material)

Protected Member Functions inherited from GRINS::AntiochMixture
void	build_stat_mech_ref_correction ()

Protected Attributes
libMesh::UniquePtr< Antioch::TransportMixture< libMesh::Real > >	_trans_mixture

libMesh::UniquePtr< Antioch::MixtureAveragedTransportMixture< libMesh::Real > >	_wilke_mixture

libMesh::UniquePtr< Thermo >	_thermo

libMesh::UniquePtr< Antioch::MixtureViscosity< Viscosity, libMesh::Real > >	_viscosity

libMesh::UniquePtr< Antioch::MixtureConductivity< Conductivity, libMesh::Real > >	_conductivity

libMesh::UniquePtr< Antioch::MixtureDiffusion< Diffusivity, libMesh::Real > >	_diffusivity

Protected Attributes inherited from GRINS::AntiochMixture
libMesh::UniquePtr< Antioch::ReactionSet< libMesh::Real > >	_reaction_set

libMesh::UniquePtr< Antioch::CEAThermoMixture< libMesh::Real > >	_cea_mixture

std::vector< libMesh::Real >	_h_stat_mech_ref_correction

Protected Attributes inherited from GRINS::AntiochChemistry
libMesh::UniquePtr< Antioch::ChemicalMixture< libMesh::Real > >	_antioch_gas

Private Member Functions
	AntiochMixtureAveragedTransportMixture ()

void	specialized_build_thermo (const GetPot &, libMesh::UniquePtr< Antioch::StatMechThermodynamics< libMesh::Real > > &thermo, thermo_type< Antioch::StatMechThermodynamics< libMesh::Real > >)

void	specialized_build_thermo (const GetPot &, libMesh::UniquePtr< Antioch::CEAEvaluator< libMesh::Real > > &thermo, thermo_type< Antioch::CEAEvaluator< libMesh::Real > >)

void	specialized_build_viscosity (const GetPot &input, const std::string &material, libMesh::UniquePtr< Antioch::MixtureViscosity< Antioch::SutherlandViscosity< libMesh::Real >, libMesh::Real > > &viscosity, viscosity_type< Antioch::SutherlandViscosity< libMesh::Real > >)

void	specialized_build_viscosity (const GetPot &input, const std::string &material, libMesh::UniquePtr< Antioch::MixtureViscosity< Antioch::BlottnerViscosity< libMesh::Real >, libMesh::Real > > &viscosity, viscosity_type< Antioch::BlottnerViscosity< libMesh::Real > >)

void	specialized_build_conductivity (const GetPot &, libMesh::UniquePtr< Antioch::MixtureConductivity< Antioch::EuckenThermalConductivity< Thermo >, libMesh::Real > > &conductivity, conductivity_type< Antioch::EuckenThermalConductivity< Thermo > >)

void	specialized_build_diffusivity (const GetPot &input, const std::string &material, libMesh::UniquePtr< Antioch::MixtureDiffusion< Antioch::ConstantLewisDiffusivity< libMesh::Real >, libMesh::Real > > &diffusivity, diffusivity_type< Antioch::ConstantLewisDiffusivity< libMesh::Real > >)

Additional Inherited Members
Static Public Attributes inherited from GRINS::ParameterUser
static std::string	zero_vector_function = std::string("{0}")
	A parseable function string with LIBMESH_DIM components, all 0. More...

Detailed Description

template<typename Thermo, typename Viscosity, typename Conductivity, typename Diffusivity>
class GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >

Wrapper class for storing state for computing Wilke transport properties using Antioch.

This class is expected to be constructed before threads have been forked and will live during the whole program. By default, Antioch is working in SI units. Note that this documentation will always be built regardless if Antioch is included in the GRINS build or not. Check configure output to confirm that Antioch was included in the build.

Definition at line 83 of file antioch_mixture_averaged_transport_mixture.h.

Member Typedef Documentation

template<typename Thermo, typename Viscosity, typename Conductivity, typename Diffusivity>

typedef AntiochChemistry GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::ChemistryParent

Definition at line 99 of file antioch_mixture_averaged_transport_mixture.h.

Constructor & Destructor Documentation

template<typename T , typename V , typename C , typename D >

GRINS::AntiochMixtureAveragedTransportMixture< T, V, C, D >::AntiochMixtureAveragedTransportMixture	(	const GetPot &	input,
		const std::string &	material
	)

Definition at line 42 of file antioch_mixture_averaged_transport_mixture.C.

References GRINS::AntiochChemistry::_antioch_gas, GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::_trans_mixture, GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::_wilke_mixture, GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::build_conductivity(), GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::build_diffusivity(), GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::build_thermo(), and GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::build_viscosity().

     : AntiochMixture(input,material)
   {
     std::string transport_data_filename = input( "Materials/"+material+"/GasMixture/Antioch/transport_data", "default" );
     if( transport_data_filename == std::string("default") )
       transport_data_filename = Antioch::DefaultInstallFilename::transport_mixture();

     bool verbose_transport_read = input( "Materials/"+material+"/GasMixture/Antioch/verbose_transport_read", false );

     _trans_mixture.reset( new Antioch::TransportMixture<libMesh::Real>( *(_antioch_gas.get()),
                                                                         transport_data_filename,
                                                                         verbose_transport_read,
                                                                         Antioch::ParsingType::ASCII ) );

     _wilke_mixture.reset( new Antioch::MixtureAveragedTransportMixture<libMesh::Real>(*(_trans_mixture.get()) ) );

     this->build_thermo( input );

     this->build_viscosity( input, material );

     this->build_conductivity( input );

     this->build_diffusivity( input, material );

     return;
   }

template<typename T , typename V , typename C , typename D >

GRINS::AntiochMixtureAveragedTransportMixture< T, V, C, D >::~AntiochMixtureAveragedTransportMixture ( )

virtual

Definition at line 71 of file antioch_mixture_averaged_transport_mixture.C.

   {
     return;
   }

template<typename Thermo, typename Viscosity, typename Conductivity, typename Diffusivity>

GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::AntiochMixtureAveragedTransportMixture ( )

private

Member Function Documentation

template<typename Thermo, typename Viscosity, typename Conductivity, typename Diffusivity>

void GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::build_conductivity ( const GetPot & input )

inlineprotected

Definition at line 125 of file antioch_mixture_averaged_transport_mixture.h.

References GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::specialized_build_conductivity().

Referenced by GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::AntiochMixtureAveragedTransportMixture().

126 { specialized_build_conductivity( input, _conductivity, conductivity_type<Conductivity>() ); }

GRINS::AntiochMixtureAveragedTransportMixture::specialized_build_conductivity

void specialized_build_conductivity(const GetPot &, libMesh::UniquePtr< Antioch::MixtureConductivity< Antioch::EuckenThermalConductivity< Thermo >, libMesh::Real > > &conductivity, conductivity_type< Antioch::EuckenThermalConductivity< Thermo > >)

Definition: antioch_mixture_averaged_transport_mixture.h:191

GRINS::AntiochMixtureAveragedTransportMixture::_conductivity

libMesh::UniquePtr< Antioch::MixtureConductivity< Conductivity, libMesh::Real > > _conductivity

Definition: antioch_mixture_averaged_transport_mixture.h:111

template<typename Thermo, typename Viscosity, typename Conductivity, typename Diffusivity>

void GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::build_diffusivity	(	const GetPot &	input,
		const std::string &	material
	)

inlineprotected

Definition at line 128 of file antioch_mixture_averaged_transport_mixture.h.

References GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::specialized_build_diffusivity().

Referenced by GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::AntiochMixtureAveragedTransportMixture().

129 { specialized_build_diffusivity( input, material, _diffusivity, diffusivity_type<Diffusivity>() ); }

GRINS::AntiochMixtureAveragedTransportMixture::specialized_build_diffusivity

void specialized_build_diffusivity(const GetPot &input, const std::string &material, libMesh::UniquePtr< Antioch::MixtureDiffusion< Antioch::ConstantLewisDiffusivity< libMesh::Real >, libMesh::Real > > &diffusivity, diffusivity_type< Antioch::ConstantLewisDiffusivity< libMesh::Real > >)

Definition: antioch_mixture_averaged_transport_mixture.h:211

GRINS::AntiochMixtureAveragedTransportMixture::_diffusivity

libMesh::UniquePtr< Antioch::MixtureDiffusion< Diffusivity, libMesh::Real > > _diffusivity

Definition: antioch_mixture_averaged_transport_mixture.h:113

template<typename Thermo, typename Viscosity, typename Conductivity, typename Diffusivity>

void GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::build_thermo ( const GetPot & input )

inlineprotected

Definition at line 119 of file antioch_mixture_averaged_transport_mixture.h.

References GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::specialized_build_thermo().

Referenced by GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::AntiochMixtureAveragedTransportMixture().

120 { specialized_build_thermo( input, _thermo, thermo_type<Thermo>() ); }

GRINS::AntiochMixtureAveragedTransportMixture::_thermo

libMesh::UniquePtr< Thermo > _thermo

Definition: antioch_mixture_averaged_transport_mixture.h:107

GRINS::AntiochMixtureAveragedTransportMixture::specialized_build_thermo

void specialized_build_thermo(const GetPot &, libMesh::UniquePtr< Antioch::StatMechThermodynamics< libMesh::Real > > &thermo, thermo_type< Antioch::StatMechThermodynamics< libMesh::Real > >)

Definition: antioch_mixture_averaged_transport_mixture.h:135

template<typename Thermo, typename Viscosity, typename Conductivity, typename Diffusivity>

void GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::build_viscosity	(	const GetPot &	input,
		const std::string &	material
	)

inlineprotected

Definition at line 122 of file antioch_mixture_averaged_transport_mixture.h.

References GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::specialized_build_viscosity().

Referenced by GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::AntiochMixtureAveragedTransportMixture().

123 { specialized_build_viscosity( input, material, _viscosity, viscosity_type<Viscosity>() ); }

GRINS::AntiochMixtureAveragedTransportMixture::specialized_build_viscosity

void specialized_build_viscosity(const GetPot &input, const std::string &material, libMesh::UniquePtr< Antioch::MixtureViscosity< Antioch::SutherlandViscosity< libMesh::Real >, libMesh::Real > > &viscosity, viscosity_type< Antioch::SutherlandViscosity< libMesh::Real > >)

Definition: antioch_mixture_averaged_transport_mixture.h:151

GRINS::AntiochMixtureAveragedTransportMixture::_viscosity

libMesh::UniquePtr< Antioch::MixtureViscosity< Viscosity, libMesh::Real > > _viscosity

Definition: antioch_mixture_averaged_transport_mixture.h:109

template<typename T , typename V , typename Conductivity , typename D >

const Antioch::MixtureConductivity< Conductivity, libMesh::Real > & GRINS::AntiochMixtureAveragedTransportMixture< T, V, Conductivity, D >::conductivity ( ) const

inline

Definition at line 253 of file antioch_mixture_averaged_transport_mixture.h.

   {
     return *_conductivity.get();
   }

template<typename T , typename V , typename C , typename Diffusivity >

const Antioch::MixtureDiffusion< Diffusivity, libMesh::Real > & GRINS::AntiochMixtureAveragedTransportMixture< T, V, C, Diffusivity >::diffusivity ( ) const

inline

Definition at line 260 of file antioch_mixture_averaged_transport_mixture.h.

   {
     return *_diffusivity.get();
   }

template<typename Thermo, typename Viscosity, typename Conductivity, typename Diffusivity>

void GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::specialized_build_conductivity	(	const GetPot &	,
		libMesh::UniquePtr< Antioch::MixtureConductivity< Antioch::EuckenThermalConductivity< Thermo >, libMesh::Real > > &	conductivity,
		conductivity_type< Antioch::EuckenThermalConductivity< Thermo > >
	)

inlineprivate

Definition at line 191 of file antioch_mixture_averaged_transport_mixture.h.

Referenced by GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::build_conductivity().

     {
       conductivity.reset( new Antioch::MixtureConductivity<Antioch::EuckenThermalConductivity<Thermo>,libMesh::Real>(*(_trans_mixture.get())) );
       Antioch::build_eucken_thermal_conductivity<Thermo,libMesh::Real>(*(conductivity.get()),*(_thermo.get()));
       return;
     }

template<typename Thermo, typename Viscosity, typename Conductivity, typename Diffusivity>

void GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::specialized_build_diffusivity	(	const GetPot &	input,
		const std::string &	material,
		libMesh::UniquePtr< Antioch::MixtureDiffusion< Antioch::ConstantLewisDiffusivity< libMesh::Real >, libMesh::Real > > &	diffusivity,
		diffusivity_type< Antioch::ConstantLewisDiffusivity< libMesh::Real > >
	)

inlineprivate

Definition at line 211 of file antioch_mixture_averaged_transport_mixture.h.

References GRINS::MaterialsParsing::parse_lewis_number().

Referenced by GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::build_diffusivity().

     {
       libMesh::Real Le = MaterialsParsing::parse_lewis_number(input,material);

       diffusivity.reset( new Antioch::MixtureDiffusion<Antioch::ConstantLewisDiffusivity<libMesh::Real>,libMesh::Real>(*(_trans_mixture.get())) );

       Antioch::build_constant_lewis_diffusivity<libMesh::Real>( *(diffusivity.get()), Le);
       return;
     }

template<typename Thermo, typename Viscosity, typename Conductivity, typename Diffusivity>

void GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::specialized_build_thermo	(	const GetPot &	,
		libMesh::UniquePtr< Antioch::StatMechThermodynamics< libMesh::Real > > &	thermo,
		thermo_type< Antioch::StatMechThermodynamics< libMesh::Real > >
	)

inlineprivate

Definition at line 135 of file antioch_mixture_averaged_transport_mixture.h.

References GRINS::AntiochChemistry::_antioch_gas.

Referenced by GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::build_thermo().

     {
       thermo.reset( new Antioch::StatMechThermodynamics<libMesh::Real>( *(this->_antioch_gas.get()) ) );
       return;
     }

template<typename Thermo, typename Viscosity, typename Conductivity, typename Diffusivity>

void GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::specialized_build_thermo	(	const GetPot &	,
		libMesh::UniquePtr< Antioch::CEAEvaluator< libMesh::Real > > &	thermo,
		thermo_type< Antioch::CEAEvaluator< libMesh::Real > >
	)

inlineprivate

Definition at line 143 of file antioch_mixture_averaged_transport_mixture.h.

References GRINS::AntiochMixture::cea_mixture().

     {
       thermo.reset( new Antioch::CEAEvaluator<libMesh::Real>( this->cea_mixture() ) );
       return;
     }

template<typename Thermo, typename Viscosity, typename Conductivity, typename Diffusivity>

void GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::specialized_build_viscosity	(	const GetPot &	input,
		const std::string &	material,
		libMesh::UniquePtr< Antioch::MixtureViscosity< Antioch::SutherlandViscosity< libMesh::Real >, libMesh::Real > > &	viscosity,
		viscosity_type< Antioch::SutherlandViscosity< libMesh::Real > >
	)

inlineprivate

Definition at line 151 of file antioch_mixture_averaged_transport_mixture.h.

Referenced by GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::build_viscosity().

     {
       viscosity.reset( new Antioch::MixtureViscosity<Antioch::SutherlandViscosity<libMesh::Real>,libMesh::Real>(*(_trans_mixture.get())) );

       std::string sutherland_data = input("Materials/"+material+"/GasMixture/Antioch/sutherland_data", "default");
       if( sutherland_data == "default" )
         sutherland_data = Antioch::DefaultInstallFilename::sutherland_data();

       Antioch::read_sutherland_data_ascii( *(viscosity.get()), sutherland_data );
     }

template<typename Thermo, typename Viscosity, typename Conductivity, typename Diffusivity>

void GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::specialized_build_viscosity	(	const GetPot &	input,
		const std::string &	material,
		libMesh::UniquePtr< Antioch::MixtureViscosity< Antioch::BlottnerViscosity< libMesh::Real >, libMesh::Real > > &	viscosity,
		viscosity_type< Antioch::BlottnerViscosity< libMesh::Real > >
	)

inlineprivate

Definition at line 165 of file antioch_mixture_averaged_transport_mixture.h.

     {
       viscosity.reset( new Antioch::MixtureViscosity<Antioch::BlottnerViscosity<libMesh::Real>,libMesh::Real>(*(_trans_mixture.get())) );

       std::string blottner_data = input("Materials/"+material+"/GasMixture/Antioch/blottner_data", "default");
       if( blottner_data == "default" )
         blottner_data = Antioch::DefaultInstallFilename::blottner_data();

       Antioch::read_blottner_data_ascii( *(viscosity.get()), blottner_data );
     }

template<typename T , typename Viscosity , typename C , typename D >

const Antioch::MixtureViscosity< Viscosity, libMesh::Real > & GRINS::AntiochMixtureAveragedTransportMixture< T, Viscosity, C, D >::viscosity ( ) const

inline

Definition at line 246 of file antioch_mixture_averaged_transport_mixture.h.

   {
     return *_viscosity.get();
   }

template<typename T , typename V , typename C , typename D >

const Antioch::MixtureAveragedTransportMixture< libMesh::Real > & GRINS::AntiochMixtureAveragedTransportMixture< T, V, C, D >::wilke_mixture ( ) const

inline

Definition at line 239 of file antioch_mixture_averaged_transport_mixture.h.

   {
     return *(_wilke_mixture.get());
   }

Member Data Documentation

template<typename Thermo, typename Viscosity, typename Conductivity, typename Diffusivity>

libMesh::UniquePtr<Antioch::MixtureConductivity<Conductivity,libMesh::Real> > GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::_conductivity

protected

Definition at line 111 of file antioch_mixture_averaged_transport_mixture.h.

template<typename Thermo, typename Viscosity, typename Conductivity, typename Diffusivity>

libMesh::UniquePtr<Antioch::MixtureDiffusion<Diffusivity,libMesh::Real> > GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::_diffusivity

protected

Definition at line 113 of file antioch_mixture_averaged_transport_mixture.h.

template<typename Thermo, typename Viscosity, typename Conductivity, typename Diffusivity>

libMesh::UniquePtr<Thermo> GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::_thermo

protected

Definition at line 107 of file antioch_mixture_averaged_transport_mixture.h.

template<typename Thermo, typename Viscosity, typename Conductivity, typename Diffusivity>

libMesh::UniquePtr<Antioch::TransportMixture<libMesh::Real> > GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::_trans_mixture

protected

Definition at line 103 of file antioch_mixture_averaged_transport_mixture.h.

Referenced by GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::AntiochMixtureAveragedTransportMixture().

template<typename Thermo, typename Viscosity, typename Conductivity, typename Diffusivity>

libMesh::UniquePtr<Antioch::MixtureViscosity<Viscosity,libMesh::Real> > GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::_viscosity

protected

Definition at line 109 of file antioch_mixture_averaged_transport_mixture.h.

template<typename Thermo, typename Viscosity, typename Conductivity, typename Diffusivity>

libMesh::UniquePtr<Antioch::MixtureAveragedTransportMixture<libMesh::Real> > GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::_wilke_mixture

protected

Definition at line 105 of file antioch_mixture_averaged_transport_mixture.h.

Referenced by GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >::AntiochMixtureAveragedTransportMixture().

The documentation for this class was generated from the following files:

src/properties/include/grins/antioch_mixture_averaged_transport_mixture.h
src/properties/src/antioch_mixture_averaged_transport_mixture.C

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Additional Inherited Members

Detailed Description

template<typename Thermo, typename Viscosity, typename Conductivity, typename Diffusivity> class GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<typename Thermo, typename Viscosity, typename Conductivity, typename Diffusivity>
class GRINS::AntiochMixtureAveragedTransportMixture< Thermo, Viscosity, Conductivity, Diffusivity >
