GRINSTesting::SATurbUBCFactory Class Reference

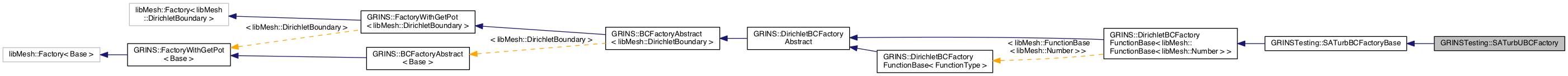

Inheritance diagram for GRINSTesting::SATurbUBCFactory:

Collaboration diagram for GRINSTesting::SATurbUBCFactory:

Public Member Functions
	SATurbUBCFactory (const std::string &bc_type_name)
Public Member Functions inherited from GRINSTesting::SATurbBCFactoryBase
	SATurbBCFactoryBase (const std::string &bc_type_name)
Public Member Functions inherited from GRINS::DirichletBCFactoryFunctionBase< libMesh::FunctionBase< libMesh::Number > >
	DirichletBCFactoryFunctionBase (const std::string &bc_type_name)
	~DirichletBCFactoryFunctionBase ()
Public Member Functions inherited from GRINS::DirichletBCFactoryAbstract
	DirichletBCFactoryAbstract (const std::string &bc_type_name)
	~DirichletBCFactoryAbstract ()
Public Member Functions inherited from GRINS::BCFactoryAbstract< libMesh::DirichletBoundary >
	BCFactoryAbstract (const std::string &bc_type_name)
	~BCFactoryAbstract ()
Public Member Functions inherited from GRINS::FactoryWithGetPot< libMesh::DirichletBoundary >
	FactoryWithGetPot (const std::string &name)
	~FactoryWithGetPot ()

Protected Member Functions
virtual libMesh::UniquePtr< libMesh::FunctionBase< libMesh::Number > >	build_func (const GetPot &, GRINS::MultiphysicsSystem &system, std::vector< std::string > &var_names, const std::string &)
	Builds the FunctionBase object for boundary condition. More...
Protected Member Functions inherited from GRINS::DirichletBCFactoryFunctionBase< libMesh::FunctionBase< libMesh::Number > >
libMesh::UniquePtr< libMesh::DirichletBoundary >	make_dirichlet_boundary (const std::set< BoundaryID > &bc_ids, const libMesh::System &system, libMesh::UniquePtr< libMesh::FunctionBase< libMesh::Number > > &func, const std::vector< VariableIndex > &var_indices)
	Dispatch, based on FunctionType, to the correct DirchletBoundary construction. More...
virtual const std::vector< std::string > &	get_var_names () const
	Helper function that can be overridded in subclasses. More...
Protected Member Functions inherited from GRINS::DirichletBCFactoryAbstract
void	check_for_vars (const GetPot &input, const std::string &section, const std::vector< std::string > &var_names, std::set< std::string > *vars_found=NULL)
	Helper function. More...
Protected Member Functions inherited from GRINS::BCFactoryAbstract< libMesh::DirichletBoundary >
void	check_for_multiple_expressions (const GetPot &input, const std::string &section, const std::string &var_name) const
	Ensure that there is only one expression for the [Section/var_name] variable. More...
void	build_var_indices (const MultiphysicsSystem &system, const std::vector< std::string > &var_names, std::vector< VariableIndex > &var_indices) const
virtual void	check_state () const
	Helper function to reduce code duplication. More...
virtual void	reset_state ()
	Helper function to redue code duplication. More...

Additional Inherited Members
Static Public Member Functions inherited from GRINSTesting::SATurbBCFactoryBase
static void	set_turb_bc_values (libMesh::MeshFunction *turbulent_bc_values)
Static Public Member Functions inherited from GRINS::BCFactoryAbstract< libMesh::DirichletBoundary >
static void	set_system (MultiphysicsSystem &system)
static void	set_bc_ids (const std::set< BoundaryID > &bc_ids)
	Boundary id for the current boundary condition section. More...
static void	set_fe_var (const FEVariablesBase &fe_var)
	Active variable for the current boundary condition. More...
static void	set_section (const std::string &section)
	Sets the current section of the input file. More...
static bool	have_bc_type (const std::string &bc_type)
Static Public Member Functions inherited from GRINS::FactoryWithGetPot< libMesh::DirichletBoundary >
static void	set_getpot (const GetPot &input)
Static Protected Attributes inherited from GRINSTesting::SATurbBCFactoryBase
static libMesh::MeshFunction *	_turbulent_bc_values = NULL
Static Protected Attributes inherited from GRINS::BCFactoryAbstract< libMesh::DirichletBoundary >
static MultiphysicsSystem *	_system
	We store only a raw pointer here because we can't make a copy. More...
static const std::set< BoundaryID > *	_bc_ids
	BoundaryID for constructing a particular boundary condition. More...
static const FEVariablesBase *	_fe_var
	The FEVariablesBase class associated with the boundary condition being built. More...
static std::string	_section
Static Protected Attributes inherited from GRINS::FactoryWithGetPot< libMesh::DirichletBoundary >
static const GetPot *	_input
	We store only a raw pointer here because we can't make a copy. More...

Detailed Description

Definition at line 166 of file test_turbulent_channel.C.

Constructor & Destructor Documentation

GRINSTesting::SATurbUBCFactory::SATurbUBCFactory ( const std::string &  bc_type_name )

inline

Definition at line 170 of file test_turbulent_channel.C.

      : SATurbBCFactoryBase(bc_type_name)
    {}

Member Function Documentation

virtual libMesh::UniquePtr<libMesh::FunctionBase<libMesh::Number> > GRINSTesting::SATurbUBCFactory::build_func ( const GetPot &  input, GRINS::MultiphysicsSystem &  system, std::vector< std::string > &  var_names, const std::string &  section  )

inlineprotectedvirtual

Builds the FunctionBase object for boundary condition.

Subclasses should override this function to build the FunctionBase object that corresponds to the variables passed in var_names. The variable names passed in will correspond to only a single VariableBase object, e.g. Velocity. The section arguments corresponds to the section to parse for the variables in the input file, e.g. input(section+"/"+var_names[0]).

The variable names passed in correspond to all the active variable names for a Variable group. The variable names present in var_names after this function is called will correspond to those variables. Note that var_names is NOT const. This is because one of the behaviors of subclasses may be to remove variables from the list. For example, for some symmetry conditions, we only want to enforce zero on certain components of the solution while leaving others untouched.

Implements GRINS::DirichletBCFactoryFunctionBase< libMesh::FunctionBase< libMesh::Number > >.

Definition at line 177 of file test_turbulent_channel.C.

References GRINSTesting::SATurbBCFactoryBase::_turbulent_bc_values.

    {
      libmesh_assert_equal_to(var_names.size(), 2);
      libmesh_assert_equal_to(var_names[0], std::string("u"));
      libmesh_assert_equal_to(var_names[1], std::string("v"));

      libMesh::UniquePtr<libMesh::CompositeFunction<libMesh::Number> >
        composite_func( new libMesh::CompositeFunction<libMesh::Number> );

      libMesh::UniquePtr<libMesh::FunctionBase<libMesh::Number> >
        bound_func(new TurbulentBdyFunctionU(_turbulent_bc_values) );

      std::vector<GRINS::VariableIndex> vars(1);
      vars[0] = system.variable_number(var_names[0]);
      composite_func->attach_subfunction(*bound_func, vars);

      vars[0] = system.variable_number(var_names[1]);
      composite_func->attach_subfunction(libMesh::ZeroFunction<libMesh::Number>(), vars);

      return libMesh::UniquePtr<libMesh::FunctionBase<libMesh::Number> >( composite_func.release() );
    }

---

The documentation for this class was generated from the following file:

• test/regression/test_turbulent_channel.C
