test_ns_couette_flow_2d_x.C File Reference

#include "grins_config.h"
#include <iostream>
#include "grins/simulation.h"
#include "grins/simulation_builder.h"
#include "grins/multiphysics_sys.h"
#include "libmesh/exact_solution.h"

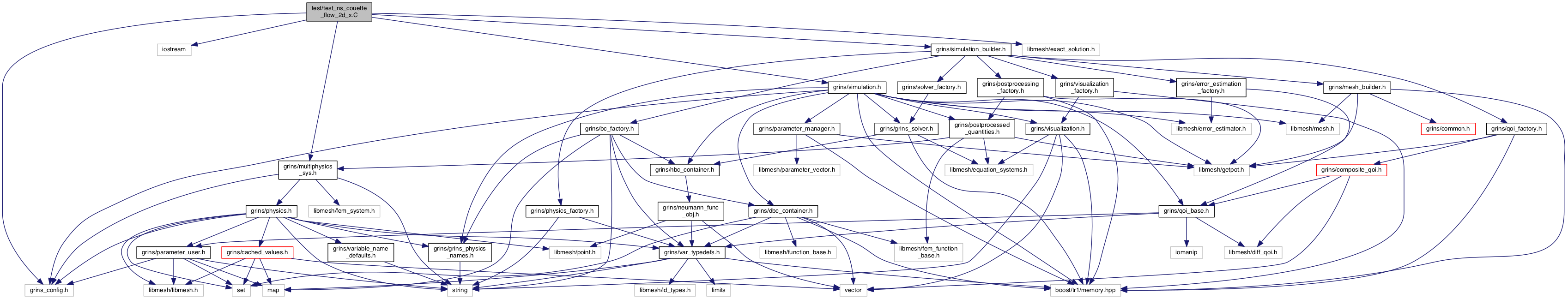

Include dependency graph for test_ns_couette_flow_2d_x.C:

Go to the source code of this file.

Functions
libMesh::Number	exact_solution (const libMesh::Point &p, const libMesh::Parameters &, const std::string &, const std::string &)
libMesh::Gradient	exact_derivative (const libMesh::Point &p, const libMesh::Parameters &, const std::string &, const std::string &)
int	main (int argc, char *argv[])

Function Documentation

libMesh::Gradient exact_derivative	(	const libMesh::Point &	p,
		const libMesh::Parameters &	,
		const std::string &	,
		const std::string &
	)

Definition at line 146 of file test_ns_couette_flow_2d_x.C.

Referenced by main().

{
  libMesh::Gradient g;

  // Hardcoded to velocity in input file.
  g(0) = 0.0;
  g(1) = 10.0;

#if LIBMESH_DIM > 2
  g(2) = 0.0;
#endif

  return g;
}

libMesh::Number exact_solution	(	const libMesh::Point &	p,
		const libMesh::Parameters &	,
		const std::string &	,
		const std::string &
	)

Definition at line 132 of file test_ns_couette_flow_2d_x.C.

Referenced by main().

{
  const double y = p(1);

  // Hardcoded to velocity in input file.
  libMesh::Number f = 10.0*y;

  return f;
}

int main	(	int	argc,
		char *	argv[]
	)

Definition at line 55 of file test_ns_couette_flow_2d_x.C.

References exact_derivative(), exact_solution(), and GRINS::Simulation::run().

{

#ifdef GRINS_USE_GRVY_TIMERS
  GRVY::GRVY_Timer_Class grvy_timer;
  grvy_timer.Init("GRINS Timer");
#endif

  // Check command line count.
  if( argc < 2 )
    {
      // TODO: Need more consistent error handling.
      std::cerr << "Error: Must specify libMesh input file." << std::endl;
      exit(1); // TODO: something more sophisticated for parallel runs?
    }

  // libMesh input file should be first argument
  std::string libMesh_input_filename = argv[1];

  // Create our GetPot object.
  GetPot libMesh_inputfile( libMesh_input_filename );

#ifdef GRINS_USE_GRVY_TIMERS
  grvy_timer.BeginTimer("Initialize Solver");
#endif

  // Initialize libMesh library.
  libMesh::LibMeshInit libmesh_init(argc, argv);

  GRINS::SimulationBuilder sim_builder;

  GRINS::Simulation grins( libMesh_inputfile,
                           sim_builder,
                           libmesh_init.comm() );

#ifdef GRINS_USE_GRVY_TIMERS
  grvy_timer.EndTimer("Initialize Solver");

  // Attach GRVY timer to solver
  grins.attach_grvy_timer( &grvy_timer );
#endif

  grins.run();

#ifdef GRINS_USE_GRVY_TIMERS
  grvy_timer.Finalize();
#endif

  std::tr1::shared_ptr<libMesh::EquationSystems> es = grins.get_equation_system();

  // Create Exact solution object and attach exact solution quantities
  libMesh::ExactSolution exact_sol(*es);

  exact_sol.attach_exact_value(&exact_solution);
  exact_sol.attach_exact_deriv(&exact_derivative);

  // Compute error and get it in various norms
  exact_sol.compute_error("GRINS", "u");

  double l2error = exact_sol.l2_error("GRINS", "u");
  double h1error = exact_sol.h1_error("GRINS", "u");

  int return_flag = 0;

  if( l2error > 1.0e-10 || h1error > 1.0e-10 )
    {
      return_flag = 1;

      std::cout << "Tolerance exceeded for Couette flow test." << std::endl
                << "l2 error = " << l2error << std::endl
                << "h1 error = " << h1error << std::endl;
    }

 return return_flag;
}
